Brand: Hubbell

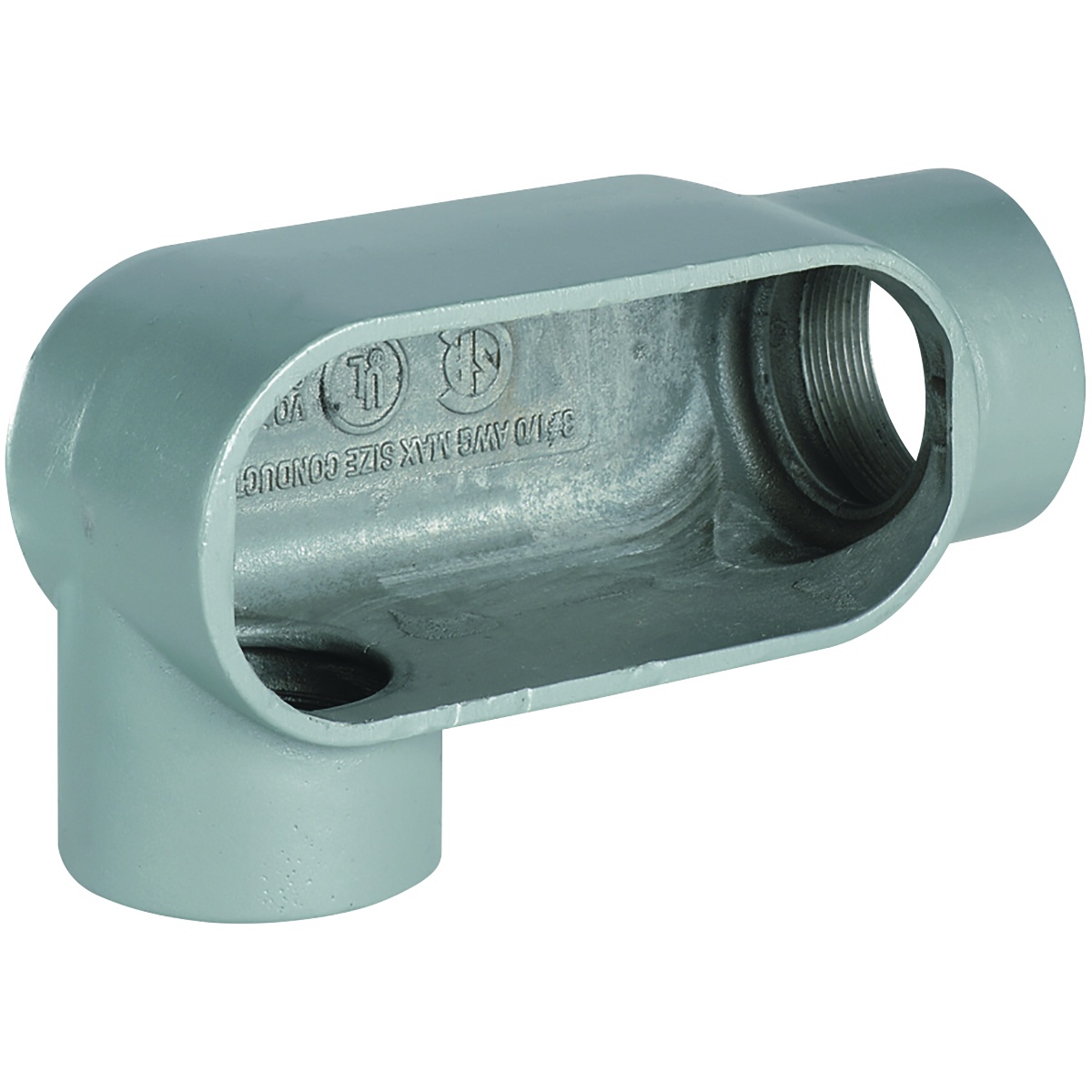

Hubbell LR67SA CorroSAFE 7 Duraloy 7 Conduit Body
Image Disclaimers Message
Brand: Hubbell
Hubbell LR67SA CorroSAFE 7 Duraloy 7 Conduit Body
Brand: Hubbell
Hubbell LR67SA CorroSAFE 7 Duraloy 7 Conduit Body
Part #:LR67SA
SKU #: 2353169
$178.35/EA
Key Features
Part #:LR67SA
SKU #: 2353169
Brand: Hubbell
Capacity: 48, 48 cu-in
Dimensions: 8-1/4 in L x 3-1/8 in W x 4-1/4 in H
Enclosure: NEMA 3
Finish: Electrostatic Powder Coated
Form: 7
$178.35/EA
- Intermateability UL listed and CSA certified interchangeability with competitive products
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 seal
- For wet locations when used with gasketed covers
- Innovative spring clip design for installation ease and repeat usage
- Smooth integral wire bushings protects cable from damage when wires are pulled through opening
- For use with threaded rigid conduit steel or aluminum
- Flat back design for greater wiring capacity and mounting stability
Specifications
Brand: Hubbell
Capacity: 48, 48 cu-in
Dimensions: 8-1/4 in L x 3-1/8 in W x 4-1/4 in H
Enclosure: NEMA 3
Finish: Electrostatic Powder Coated
Form: 7
Hub Size: 2, 2 in
Type: Type LR
Color: Gray
Connection type: Thread, Threaded
Country of origin: MX
Material: Copper Free Aluminum
Manufacturer Name: Hubbell
UNSPSC: 39131708
UPC: 00783936080253
Hubbell LR67SA CorroSAFE 7 Duraloy 7 Conduit Body
Killark CorroSAFE 7 Duraloy 7 Conduit Body, Type LR, 2 in Hub, 2 Hubs, 48 cu-in Capacity, 7 Form, NEMA 3 Enclosure, Thread Connection, Copper Free Aluminum, Electrostatic Powder Coated, Gray, 8-1/4 in L x 3-1/8 in W x 4-1/4 in H Dimensions
Additional Description: KILL-LR67SA CORROSAFE7 2"" LR COND BDY
Catalog Description: 2" LR Hub, Aluminum Form 7 Conduit Body
Item FeaturesTo provide access to conductors for pulling, splicing and maintenance, threaded for rigid and IMC conduit
Item Features
Item FeaturesUL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b) Class I Div 2, 502.10, 503.10
