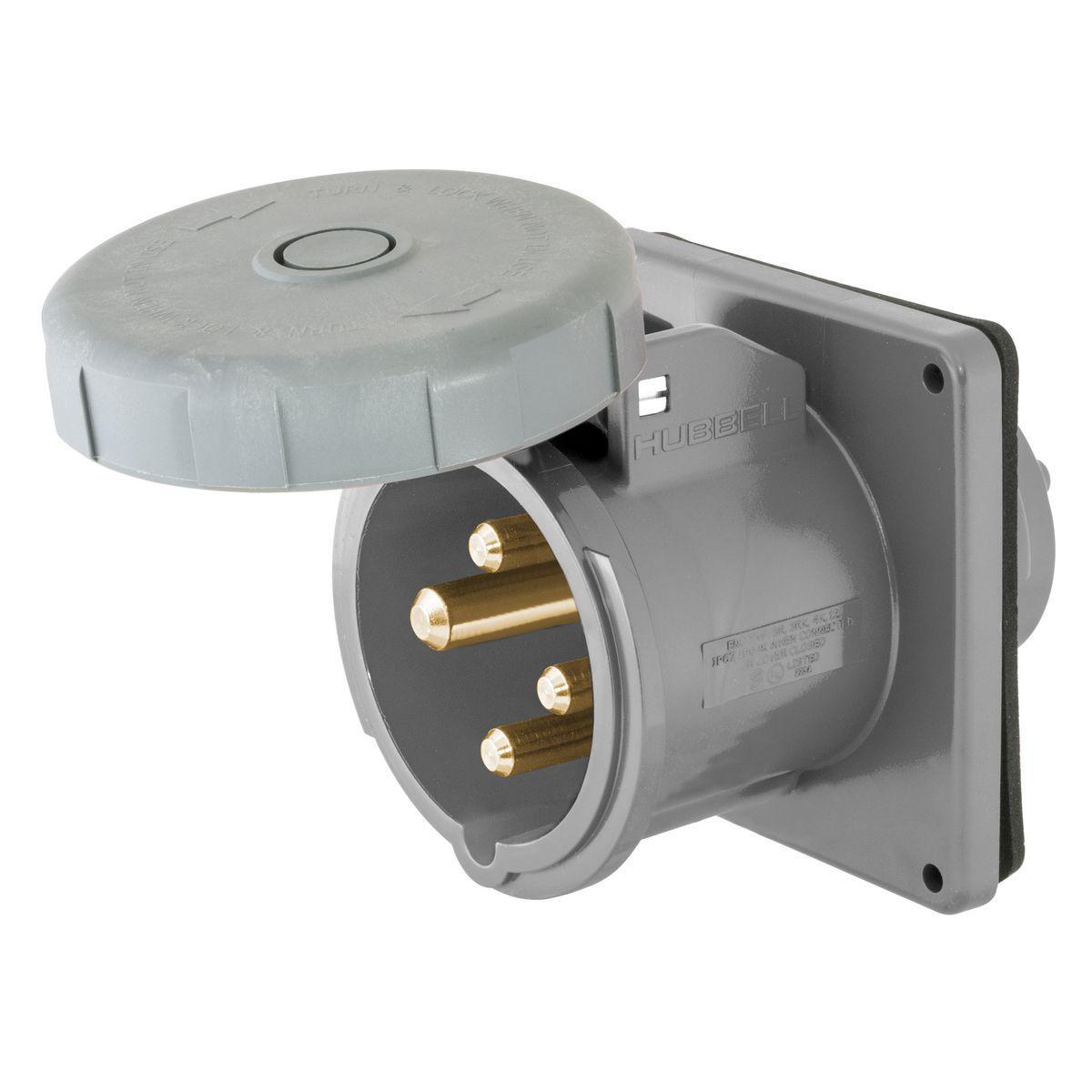

Hubbell M4100B12R Pin and Sleeve Inlet
Part Number # M4100B12R
SKU # 2260864
$1001.43 / Each
Hubbell M4100B12R Key Features
Brand: Hubbell
Part Number # M4100B12R
SKU #2260864
Amperage Rating: 100, 100 A
Dimensions: 5-1/2 in H x 5-1/2 in W, 5-1/2 in W x 5-1/2 in H
Enclosure: IP56/IP67
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Pressure Screw
Type: 1-Phase Flanged Male Hull Mount Single Standard Watertight Screw Mount, Flanged Male Hull Mount Single Standard Watertight
Voltage Rating: 125/250 VAC, 250/125
Color: Gray
Country of origin: PR
Material: Nylon, Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585410012
$1001.43 / Each
- Wiring Device-Kellems Pin and Sleeve Inlet, 1-Phase Flanged Male Hull Mount Single Standard Watertight Screw Mount, 125/250 VAC, 100 A, 3 Pole, 4 Wires, Marine Grade, IP56/IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Gray, 5-1/2 in W x 5-1/2 in H
M4100B12R Application
Marine ApplicationsM4100B12R Includes
Mounting Screws and GasketM4100B12R Item Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
- https://youtu.be/6vsZAR79ASo
M4100B12R Standards
RoHS Compliant|IEC 309-1/309-2|UL 498SKU #2260864Part Number #M4100B12RUNSPSC39121406UPC00783585410012
