Part Number # M4100C12
SKU # 2327618
M4100C12

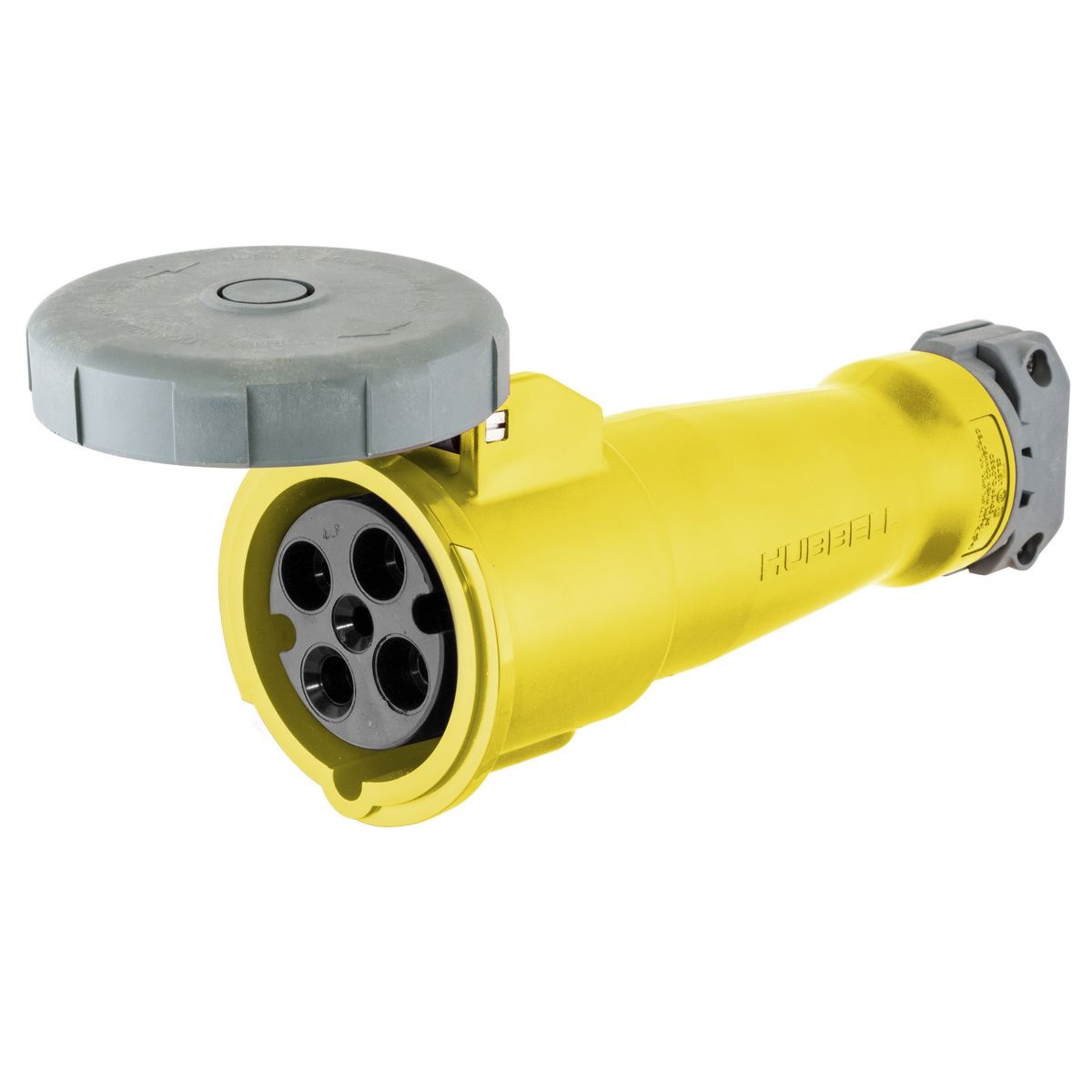

Hubbell M4100C12 Pin and Sleeve Connector
Part Number # M4100C12
SKU # 2327618
Hubbell M4100C12 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | M4100C12 |
| SKU #: | 2327618 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 13.57 in L x 5.71 in W |
| Enclosure: | IP67 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Female Heavy Duty Standard Watertight, Female Heavy Duty Standard Watertight Cord Mount |
| Country of origin: | PR |
| Material: | Composite, Composite/Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585410029 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell M4100C12 Pin and Sleeve Connector
Brand: Hubbell
Part Number: M4100C12
Wiring Device-Kellems Pin and Sleeve Connector, Female Heavy Duty Standard Watertight Cord Mount, 125/250 VAC, 100 A, 3 Pole, 4 Wires, Marine Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Yellow, 13.57 in L x 5.71 in W
Additional Description: HUBW-M4100C12 MARINE PS CONN, 3P4W, 100A 125/250V
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 125/250V, 3-Pole 4- Wire Grounding, Terminal Screws, Yellow
M4100C12 Application
Marine Wiring Device ApplicationsM4100C12 Item Features
- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
- https://youtu.be/6vsZAR79ASo
M4100C12 Standards
RoHS Compliant|UL 498 File No. E146033|CSA File No. LR280C|IEC 309-1/309-4/60309-1/60309-2SKU #2327618Part Number #M4100C12UNSPSC39121421UPC00783585410029
Image provided may only be a representation of final product and may include optional equipment
