Part Number # M5100C7
SKU # 2427541
Image Disclaimers Message
M5100C7

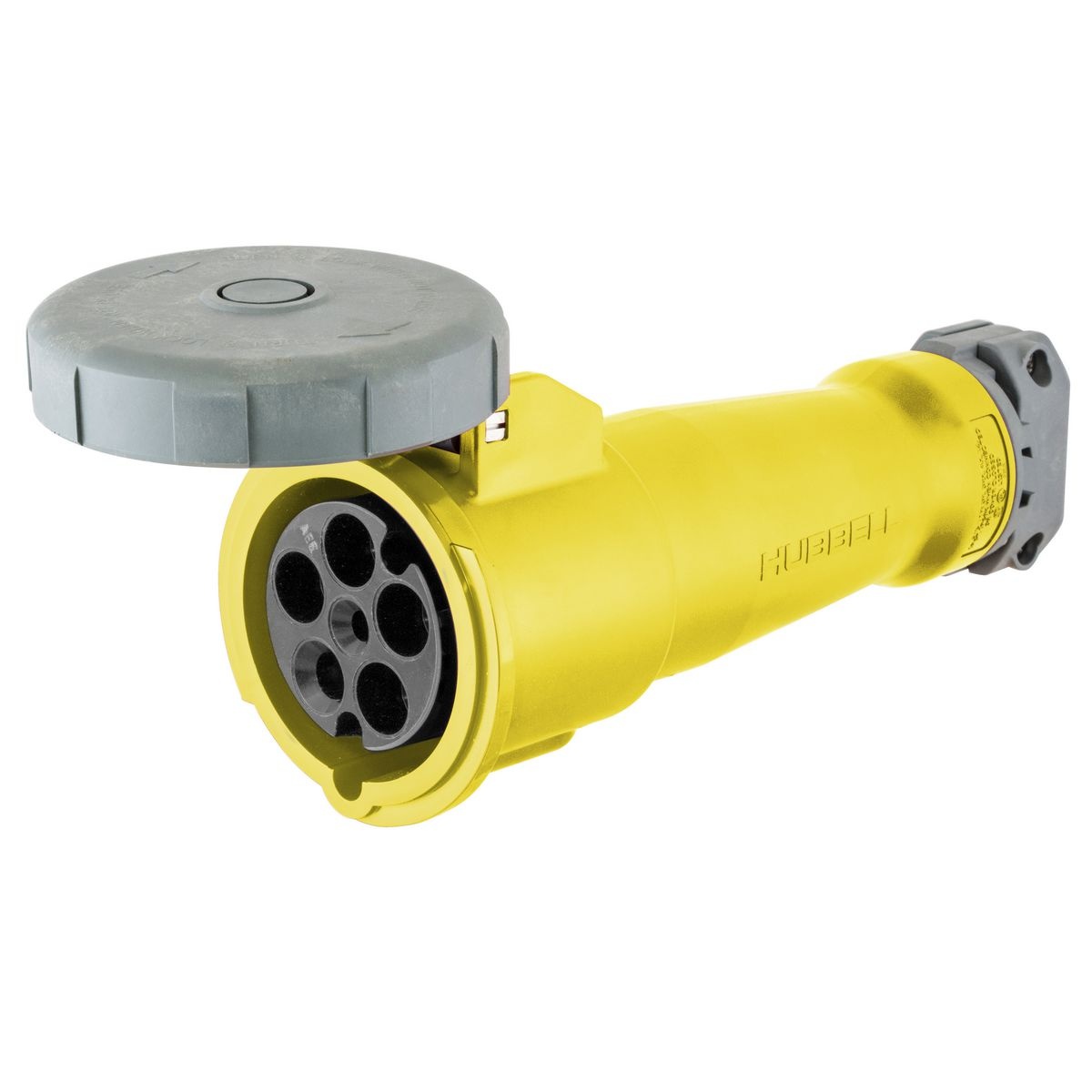

Hubbell M5100C7 Mount Pin and Sleeve Connector
Part Number # M5100C7
SKU # 2427541
$1242.86 / Each
Typical price:$1896.00 / Each
Hubbell M5100C7 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | M5100C7 |
| SKU #: | 2427541 |
| Amperage Rating: | 100 A |
| Dimensions: | 13.57 in L x 5.71 in W |
| Enclosure: | IP67 |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Female Heavy Duty Non-Metallic Standard Watertight Cord Mount |
| Color: | Yellow |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585510095 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1242.86 / Each
Typical price:$1896.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, M5100C7, Pin and Sleeve Connector, 3-Phase Female Heavy Duty Non-Metallic Standard Watertight Cord Mount, 277/480 V AC, 100 A, 4 Pole, 5 Wires, Marine Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Yellow, 13.57 in L x 5.71 in W Dimensions
M5100C7 Application
High Ampacity ConnectionsM5100C7 Item Features
- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
- https://youtu.be/6vsZAR79ASo
M5100C7 Standards
RoHS Compliant|UL 498|IEC 309-1/309-2|IEC 60309-1|CSA File No. LR280|UL File No. E146033|CSA C22.2 File No. 0.17|UL94HB Flammability RatingSKU #2427541Part Number #M5100C7UNSPSC39121421UPC00783585510095
