Part Number # NHC1041
SKU # 2284768
NHC1041

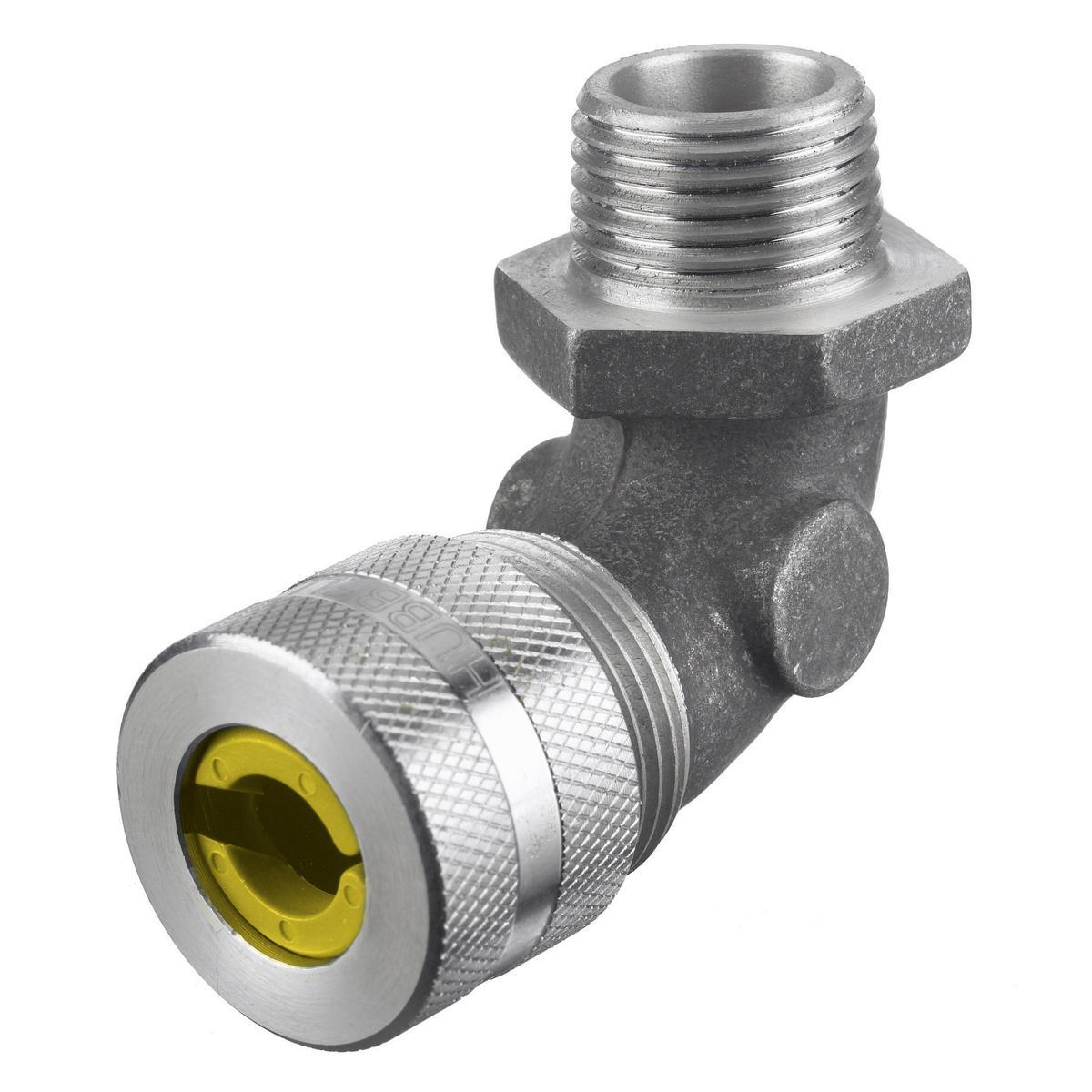

Hubbell NHC1041 Cord Connector
Part Number # NHC1041
SKU # 2284768
$31.57 / Each
Typical price:$40.80 / Each
Hubbell NHC1041 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | NHC1041 |
| SKU #: | 2284768 |
| Cable Openings: | 0.63 to 0.75, 0.63 to 0.75 in |
| Dimensions: | 1.75 in Dia x 3.2 in L |
| Finish: | Machined |
| Number of Conductors: | 1 |
| Series: | NHC |
| Temperature Rating (Degrees F): | -30 to 225, -30 to 225 deg F |
| Trade Size: | 1 in MNPT, 1 in NPT |
| Type: | 90 deg Form 4 Standard, 90 deg Form 4 Standard Duty |
| Cable type: | Jacketed |
| Connection type: | MNPT, Male |
| Country of origin: | CN |
| Material: | Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121431 |
| UPC: | 00783585201412 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.57 / Each
Typical price:$40.80 / Each
Quantity:
- Hubbell Wiring Device-Kellems, NHC1041, Wire Management Cord Connector, 90 deg Form 4 Standard, Series: NHC, 1 in MNPT Trade, 1 Conductors, Cable Openings: 0.63 to 0.75 in, Jacketed Cable, MNPT Connection, Aluminum, Machined, Metallic/Yellow, -30 to 225 deg F, 1.75 in Dia x 3.2 in L Dimensions
NHC1041 Application
For use in wet locations when used with a listed nylon washer between box and fitting and hazardous locations applicationsNHC1041 Item Features
- Lock nuts sold separately
- https://youtu.be/6SdOpBP_CJk
NHC1041 Standards
Title 46-Part 111|Class III Div 1 2|NEC 501-4(b)/502-4(a)/502-4(b)/503-3(a)/503-3(b)|UL94 V-2 Flammability Rating|CSA Certified|RoHS Compliant|UL File No. 514B|UL ListedSKU #2284768Part Number #NHC1041UNSPSC39121431UPC00783585201412
Image provided may only be a representation of final product and may include optional equipment
