Brand: Hubbell
OLB-3

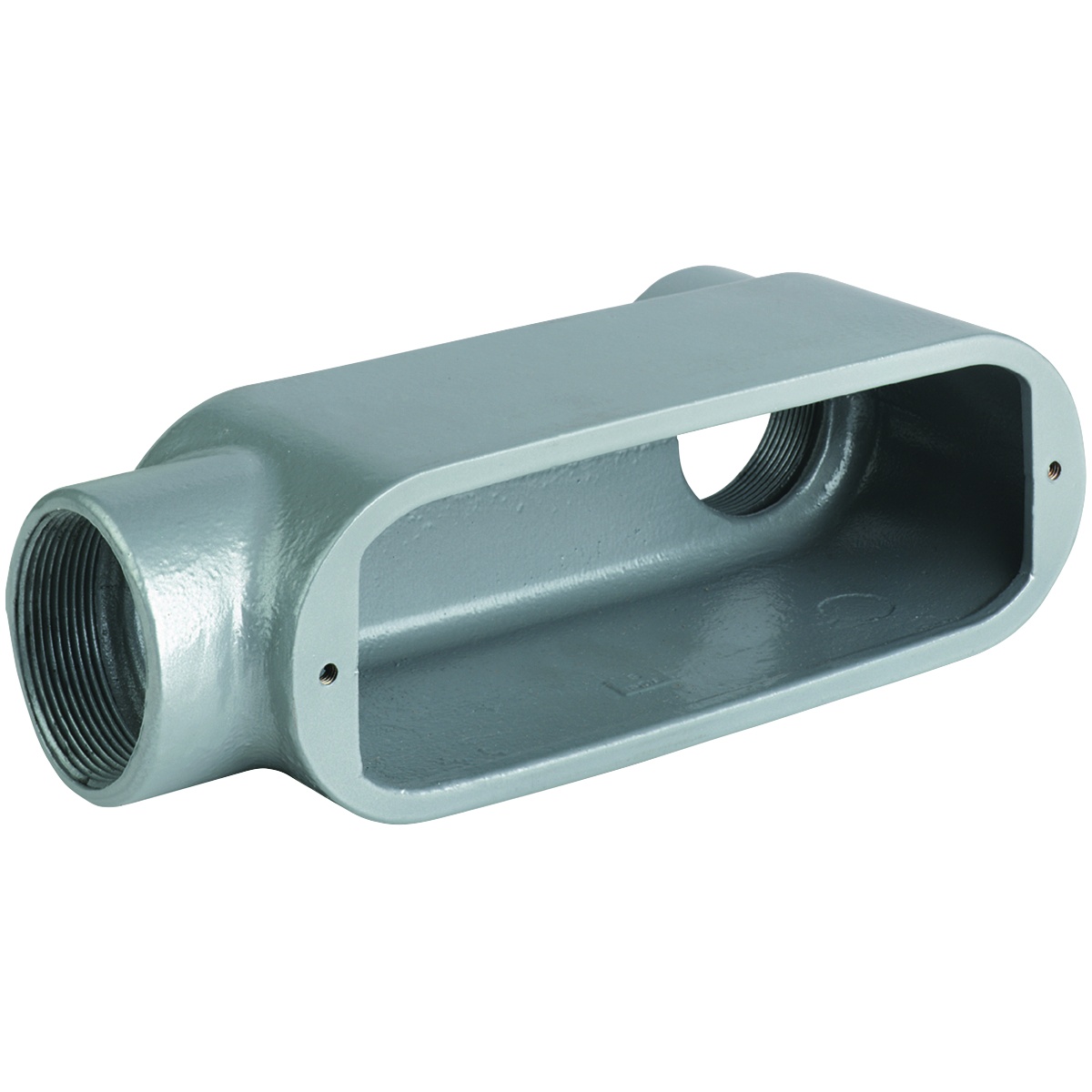

Hubbell OLB-3 Duraloy 5 Conduit Body
Part Number # OLB-3
SKU # 20957
$23.23 / Each
Typical price:$43.12 / Each
Hubbell OLB-3 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | OLB-3 |
| SKU #: | 20957 |
| Capacity: | 12, 12 cu-in |
| Dimensions: | 6-5/8 in L x 1-7/8 in W x 2-29/32 in H |
| Finish: | Powder Coated |
| Form: | 7 |
| Hub Size: | 1, 1 in |
| Series: | O Series |
| Type: | Type LB |
| Color: | Gray |
| Connection type: | Thread, Threaded |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131708 |
| UPC: | 00783936490274 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$23.23 / Each
Typical price:$43.12 / Each
Quantity:
- Killark Duraloy 5 Conduit Body, Type LB, Series: O Series, 1 in Hub, 2 Hubs, 12 cu-in Capacity, 7 Form, Thread Connection, Aluminum, Powder Coated, Gray, 6-5/8 in L x 1-7/8 in W x 2-29/32 in H Dimensions
OLB-3 Application
Rigid/IMC Conduit ApplicationsOLB-3 Item Features
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Malleable iron suitable for use in concrete
- Interchangeable with competitive products
- Stainless steel screws on stamped and cast cover
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
- To provide access to conductors for pulling, splicing and maintenance
- Electrostatically applied powder coated
- Copper free aluminum (less than 4/10 of 1%)
OLB-3 Standards
UL File No. E3397|CSA LR11852|Federal Specification W-C-586D/A-A 50563SKU #20957Part Number #OLB-3UNSPSC39131708UPC00783936490274
