- To provide access to conductors for pulling, splicing and maintenance
- Stainless steel screws on stamped and cast covers
- Copper free aluminum (less than 4/10 of 1%)
- Tapered threaded hubs (NPT)
- Interchangeable with competitive products
- Electrostatically applied powder coated
- For wet locations when used with gasketed covers
Specifications
Brand: Hubbell
Capacity: 4 cu-in
Dimensions: 4-5/8 in L x 2 in W x 1-3/8 in H
Finish: Powder Coated
Form: Form 5
Hub Size: 1/2 in
Series: O Series
Type: Type LL
Color: Gray
Connection type: Thread
Country of origin: US
Material: Aluminum
Manufacturer Name: Hubbell
UNSPSC: 39131708
UPC: 00783936049281

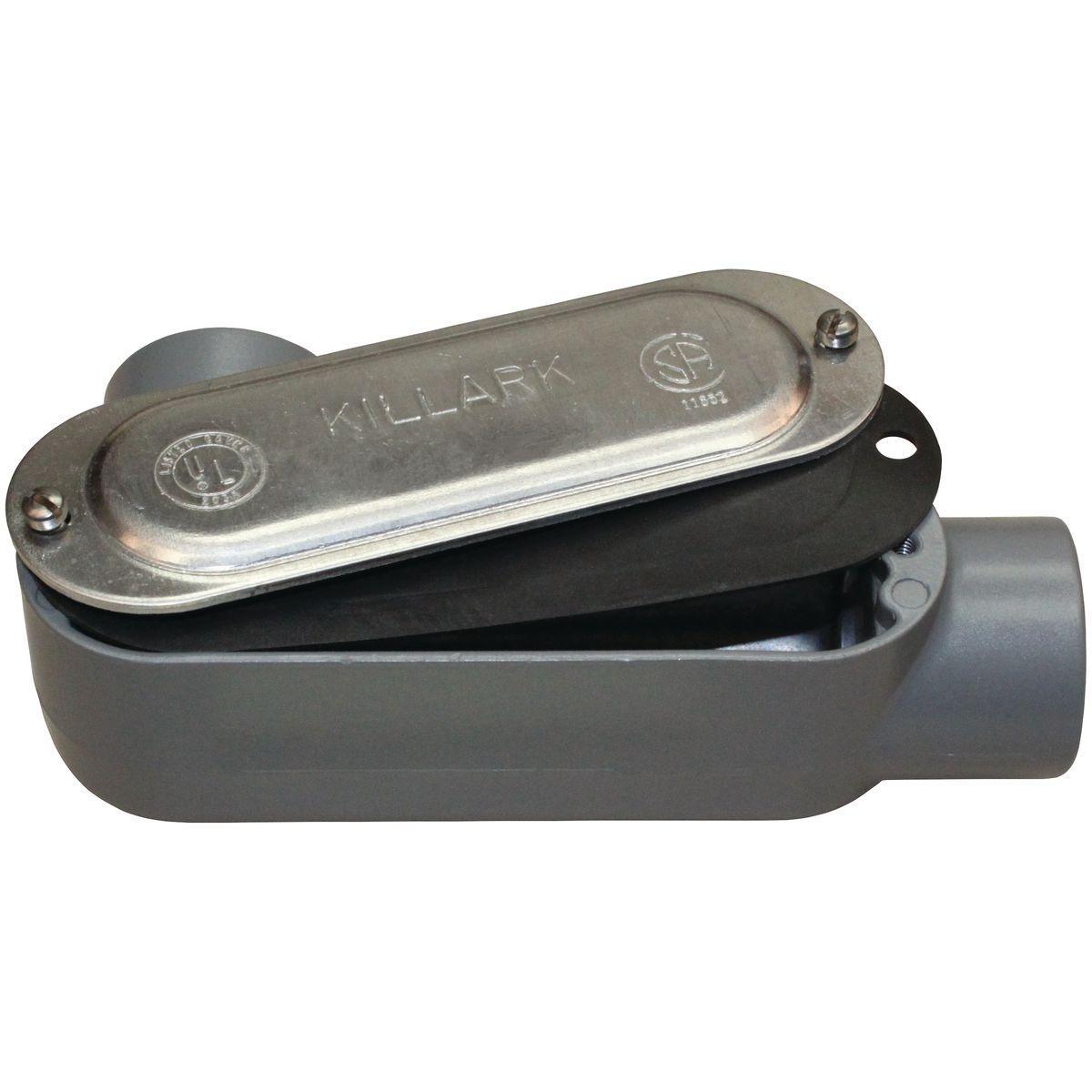

Hubbell OLL-1CG Duraloy 5 K-PAK Conduit Body
Killark Duraloy 5 K-PAK Conduit Body, Type LL, Series: O Series, 1/2 in Hub, 2 Hubs, 4 cu-in Capacity, Form 5 Form, Thread Connection, Aluminum, Powder Coated, Gray, 4-5/8 in L x 2 in W x 1-3/8 in H Dimensions
Additional Description: KILL-OLL-1CG BODY,CVR,GASK 1/2"" LL AL
Catalog Description: O Series/Duraloy 5 Series Aluminum Conduit Body with Cover And Gasket- LL Type - Hub Size ½" - Volume 4.0 cu in
Item FeaturesRigid/IMC Conduit Applications
Item Features
Item FeaturesUL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b)/502.10/503.10 Class I Div 2
