Part Number # OLL-1M
SKU # 2435704
Image Disclaimers Message
Hubbell OLL-1M Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | OLL-1M |
| SKU #: | 2435704 |
| Capacity: | 4 cu-in |
| Dimensions: | 4-5/8 in L x 2 in W x 1-3/8 in H |
| Finish: | Tri-Coated |
| Hub Size: | 1/2 in |
| Series: | O Series |
| Type: | Type LL |
| Color: | Gray |
| Connection type: | Thread |
| Country of origin: | IN |
| Material: | Malleable Iron |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131708 |
| UPC: | 00783936480527 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$33.65 / Each
Quantity:

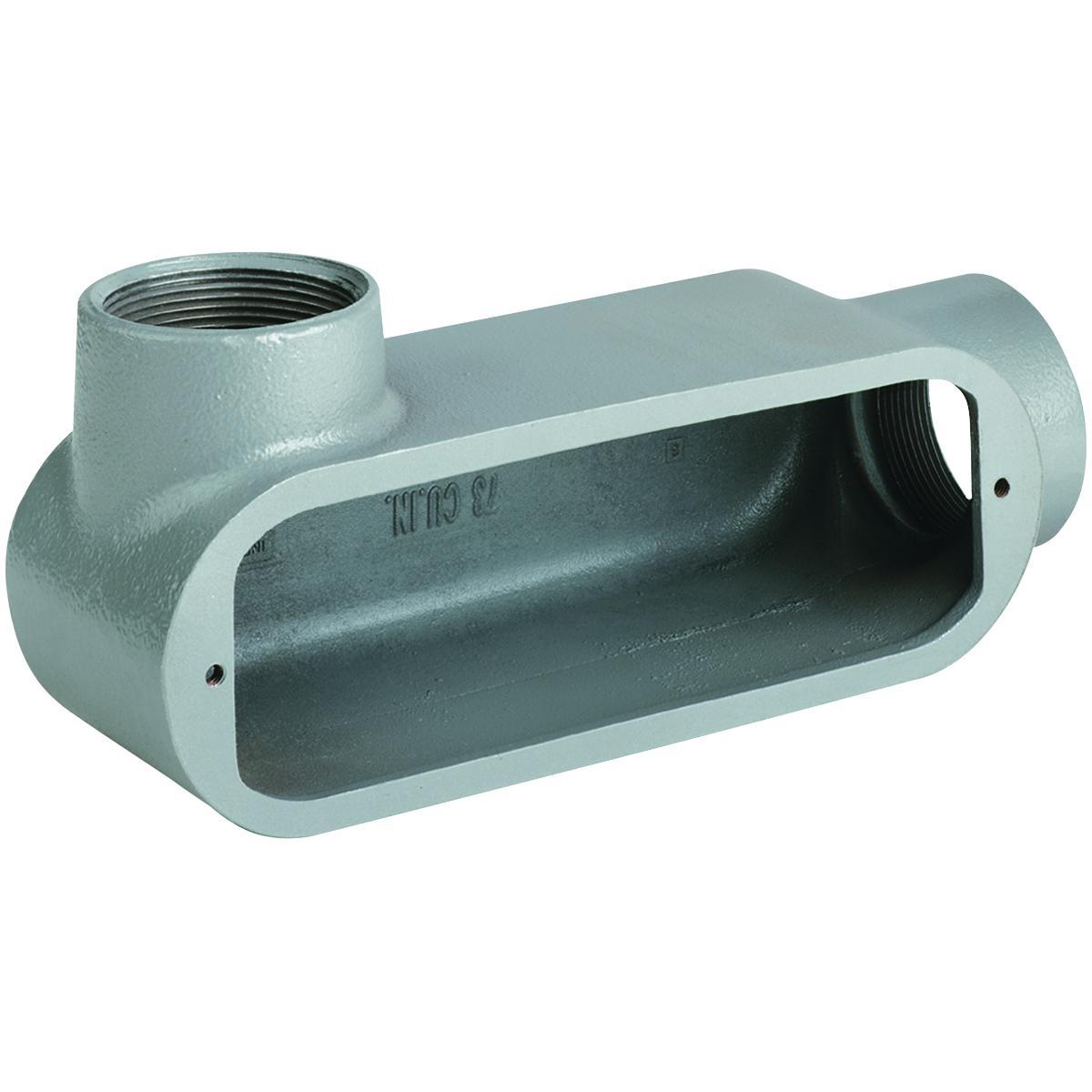

Hubbell OLL-1M Conduit Body
Brand: Hubbell
Part Number: OLL-1M
Killark® Duraloy® 5 Conduit Body, Type LL, Series: O Series, 1/2 in Hub, 2 Hubs, 4 cu-in Capacity, Thread Connection, Malleable Iron, Tri-Coated, Gray, 4-5/8 in L x 2 in W x 1-3/8 in H Dimensions
Additional Description: KILL-OLL-1M 1/2"" IRON CONDUIT BODY TYPE LL
Catalog Description: 1/2" LL Hub, Iron O Series Conduit Body
OLL-1M Application
To provide access to conductors for pulling, splicing and maintenance, threaded for rigid and IMC conduitOLL-1M Item Features
- Raintight when used with gasketed covers
- Malleable iron suitable for use in concrete
- Interchangeable with competitive products
- Stainless steel screws on stamped and cast covers
- Tapered threaded hubs (NPT)
OLL-1M Standards
UL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D, A-A 50563|NEC 501.10(b) Class I Division 2, 502.10, 503.10SKU #2435704Part Number #OLL-1MUNSPSC39131708UPC00783936480527
