Part Number # OT-2
SKU # 20965
OT-2

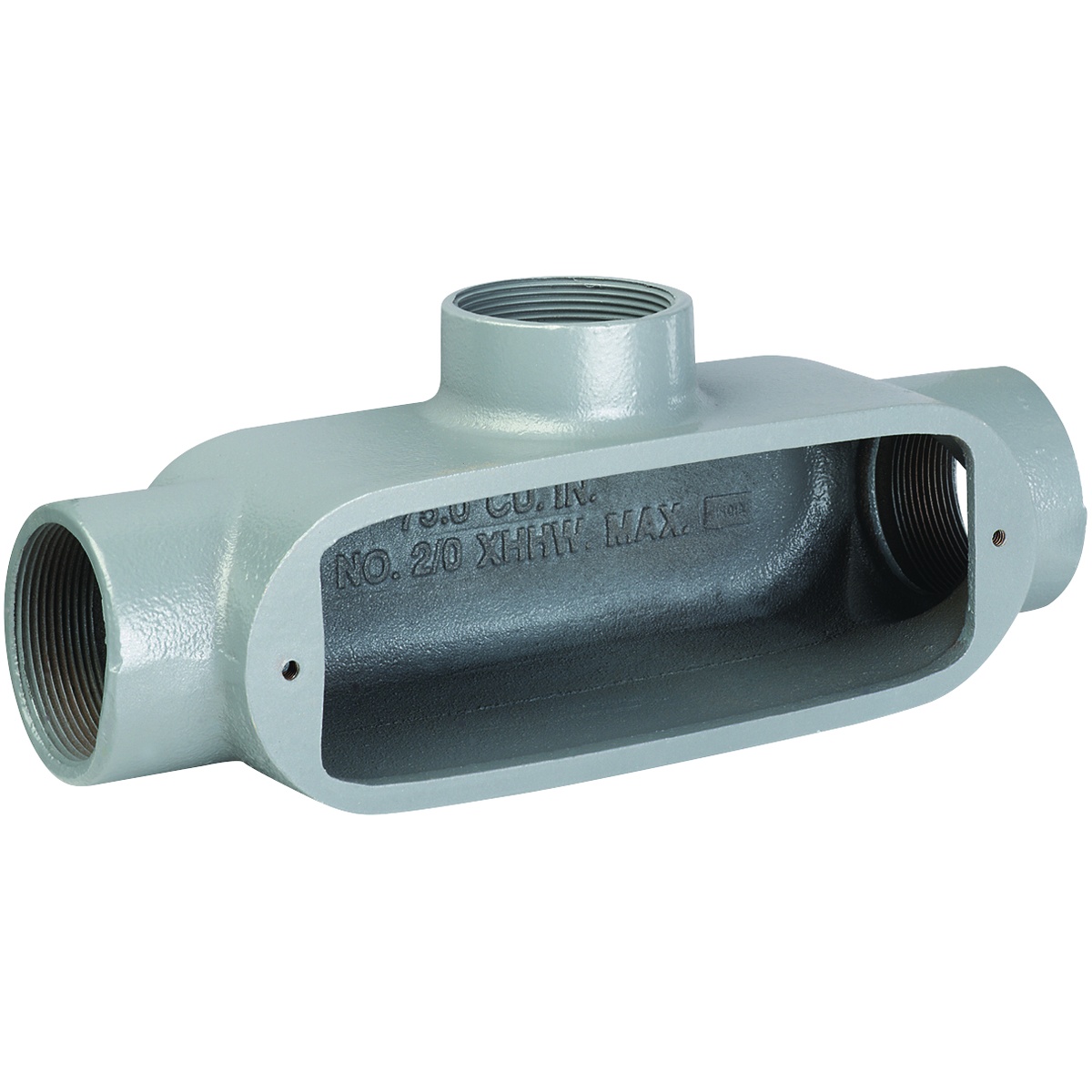

Hubbell OT-2 Conduit Body
Part Number # OT-2
SKU # 20965
$19.67 / Each
Typical price:$36.52 / Each
Hubbell OT-2 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | OT-2 |
| SKU #: | 20965 |
| Capacity: | 7 cu-in |
| Dimensions: | 2-3/16 in H x 6-1/16 in W x 1-5/8 in D |
| Finish: | Powder Coated |
| Form: | 5 |
| Hub Size: | 3/4 in |
| Series: | O Series |
| Type: | Type T |
| Connection type: | Thread |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131708 |
| UPC: | 00783936530024 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$19.67 / Each
Typical price:$36.52 / Each
Quantity:
- Killark, OT-2, Conduit Body, Type T, Series: O Series, 3/4 in Hub, 3 Hubs, 7 cu-in Capacity, 5 Form, Thread Connection, Copper Free Aluminum, Powder Coated, Gray, 2-3/16 in H x 6-1/16 in W x 1-5/8 in D Dimensions
OT-2 Application
For providing access to conductors for pulling, splicing and maintenance and threaded for rigid and IMC conduitOT-2 Item Features
- Tapered threaded hubs (NPT)
- To provide access to conductors for pulling, splicing, and maintenance
- Copper-free aluminum (less than 4/10 of 1%)
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, div. 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
- Suitable for wet locations when used with gasketed covers
- Stainless steel screws on stamped and cast covers
- Malleable iron suitable for use in concrete
- Interchangeable with competitive products
- Electrostatically applied powder coat
OT-2 Standards
NEC 501.10(b) Class I Div 2/Class I Zone 2 502.10/503.10 for Hazardous Location|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|UL File No. E3397SKU #20965Part Number #OT-2UNSPSC39131708UPC00783936530024
Image provided may only be a representation of final product and may include optional equipment
