Hubbell OT-2CG Duraloy 5 K-PAK Conduit Body
Part Number # OT-2CG
SKU # 2376134
$32.52 / Each
Typical price:$60.36 / Each
Hubbell OT-2CG Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | OT-2CG |
| SKU #: | 2376134 |
| Capacity: | 7 cu-in |
| Dimensions: | 6-1/16 in L x 2-3/16 in W x 1-5/8 in H |
| Finish: | Powder Coated |
| Form: | 5 |
| Hub Size: | 3/4 in |
| Series: | O Series |
| Type: | Type T |
| Connection type: | Tapered NPT |
| Country of origin: | MX, US |
| Material: | Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131708 |
| UPC: | 00783936049359 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$32.52 / Each
Typical price:$60.36 / Each
Quantity:

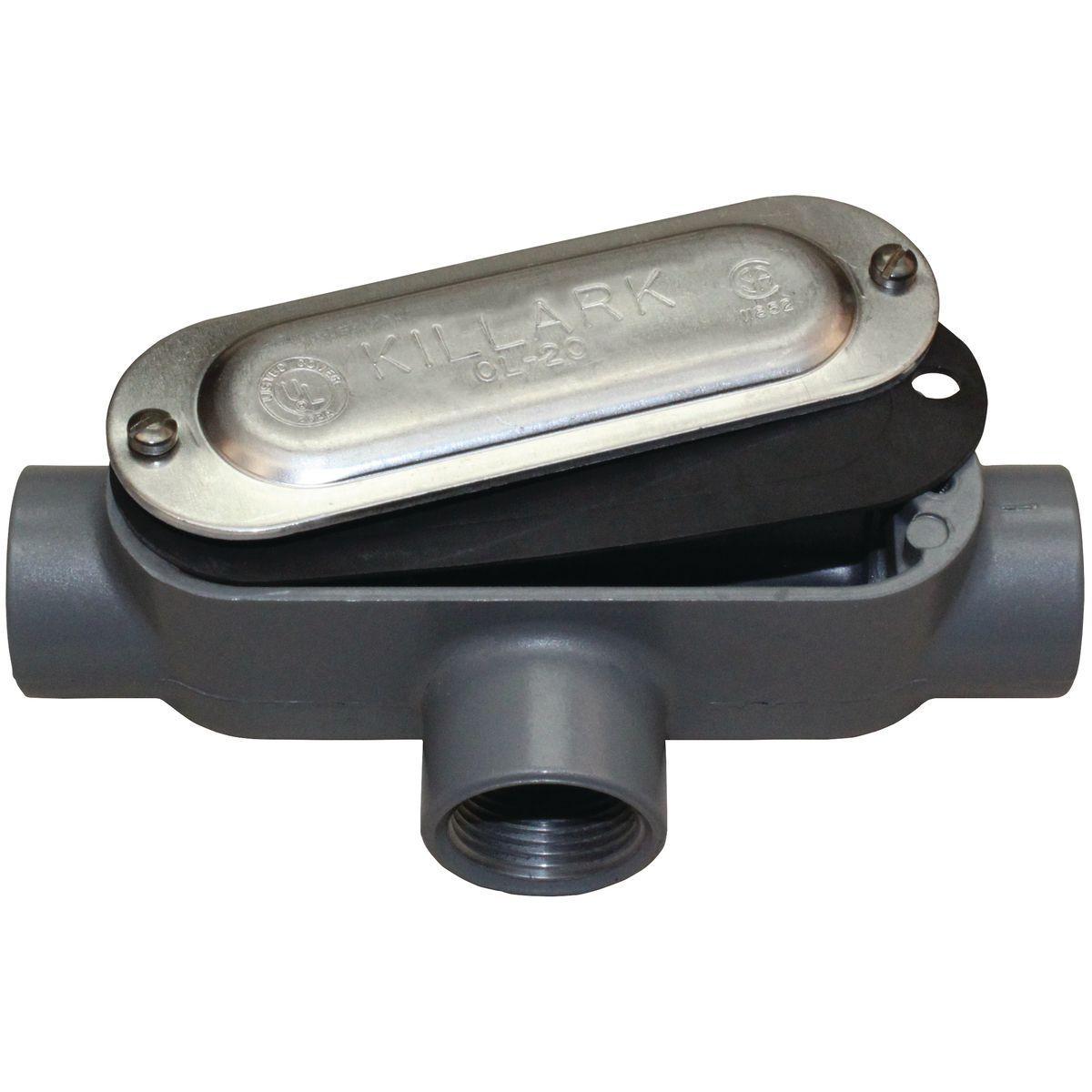

- Killark, OT-2CG, Conduit Body, Type T, Series: O Series, 3/4 in Hub, 3 Hubs, 7 cu-in Capacity, 5 Form, Tapered NPT Connection, Aluminum, Powder Coated, Gray, 6-1/16 in L x 2-3/16 in W x 1-5/8 in H Dimensions
OT-2CG Application
For to provide access to conductors for pulling, splicing and maintenance and threaded for rigid conduit and IMCOT-2CG Item Features
- Up to date with 419 and tapered hubs specifications
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4 in - 4 in LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
OT-2CG Standards
UL Listed|CSA Certified|UL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b)/502.10/503.10 Class I Div 2SKU #2376134Part Number #OT-2CGUNSPSC39131708UPC00783936049359
Image provided may only be a representation of final product and may include optional equipment
