Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY - X TYPE - HUB SIZE3/4 INCH - VOLUME 7.0 CUBIC INCHES

" />

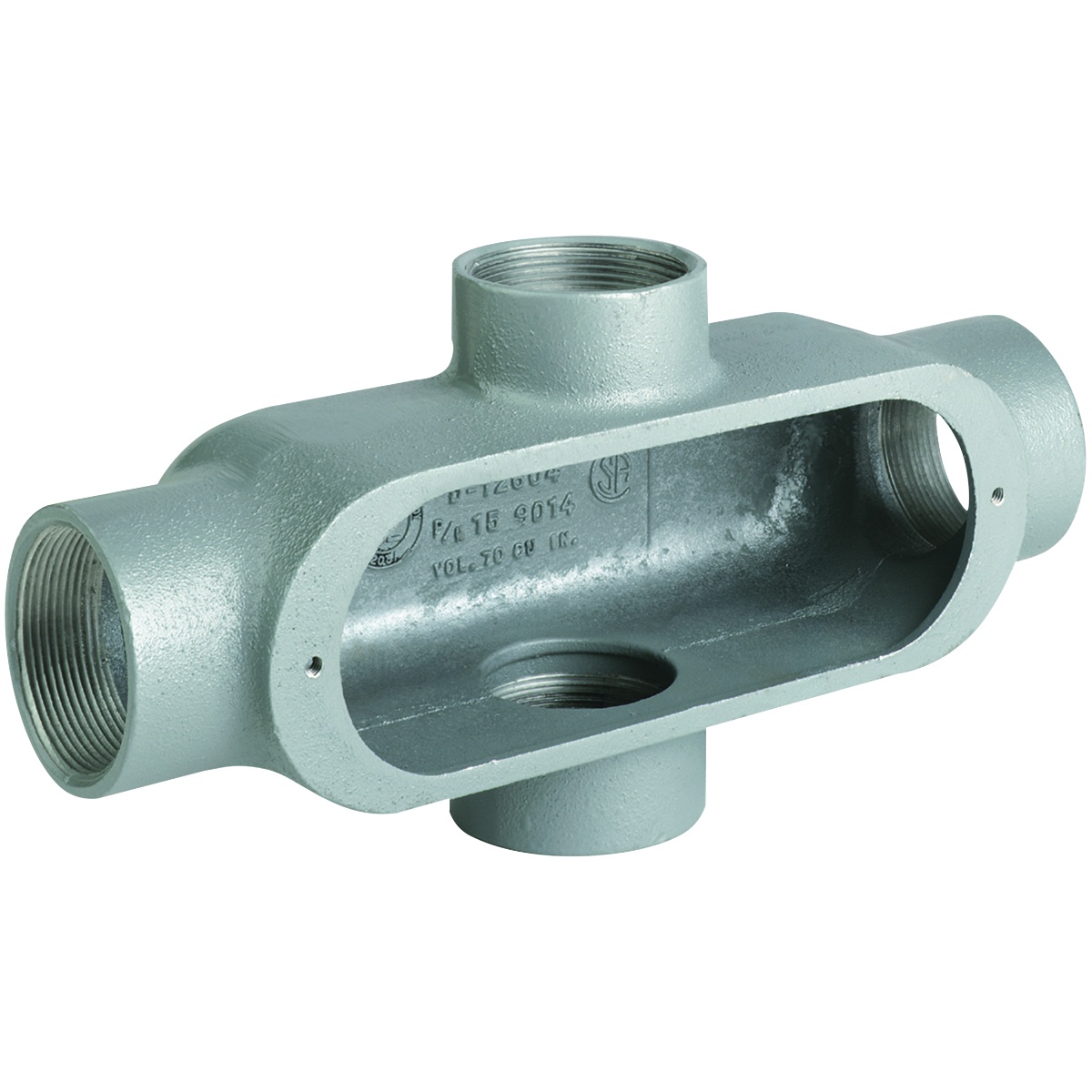

Hubbell OX-2 Duraloy 5 Conduit Body

20969 MFG #: OX-2
$17.00 / EA
Usually Ships within 5-8 Days
  • Capacity: 7
  • Dimensions: 6-1/16 in L x 2-7/8 in W x 2 in H
  • Finish: Powder Coated
  • Hub Size: 3/4
  • Series: O Series
  • Type: Type X
  • Color: Gray
  • Connection type: Threaded
  • Material: Aluminum

Hubbell OX-2 Duraloy 5 Conduit Body

Killark® Duraloy® 5 Conduit Body, Type X, Series: O Series, 3/4 in Hub, 4 Hubs, 7 cu-in Capacity, Thread Connection, Aluminum, Powder Coated, Gray, 6-1/16 in L x 2-7/8 in W x 2 in H Dimensions

Additional Description: KILL-OX-2 3/4" ALUM CONDUIT BODY TYPE X

Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY - X TYPE - HUB SIZE3/4 INCH - VOLUME 7.0 CUBIC INCHES

  • Specifications
  • Raintight when used with gasketed covers
  • Electrostatically applied powder coated
  • Malleable iron suitable for use in concrete
  • Stainless steel screws on stamped and cast cover
  • Interchangeable with competitive products
  • Tapered threaded hubs (NPT)
  • To provide access to conductors for pulling, splicing and maintenance
  • Copper free aluminum (less than 4/10 of 1%)
  • Suitable for wet locations when used with gasketed covers
  • Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
