Part Number # PB2C10
SKU # 2227924
Image Disclaimers Message
Brand: Hubbell
PB2C10

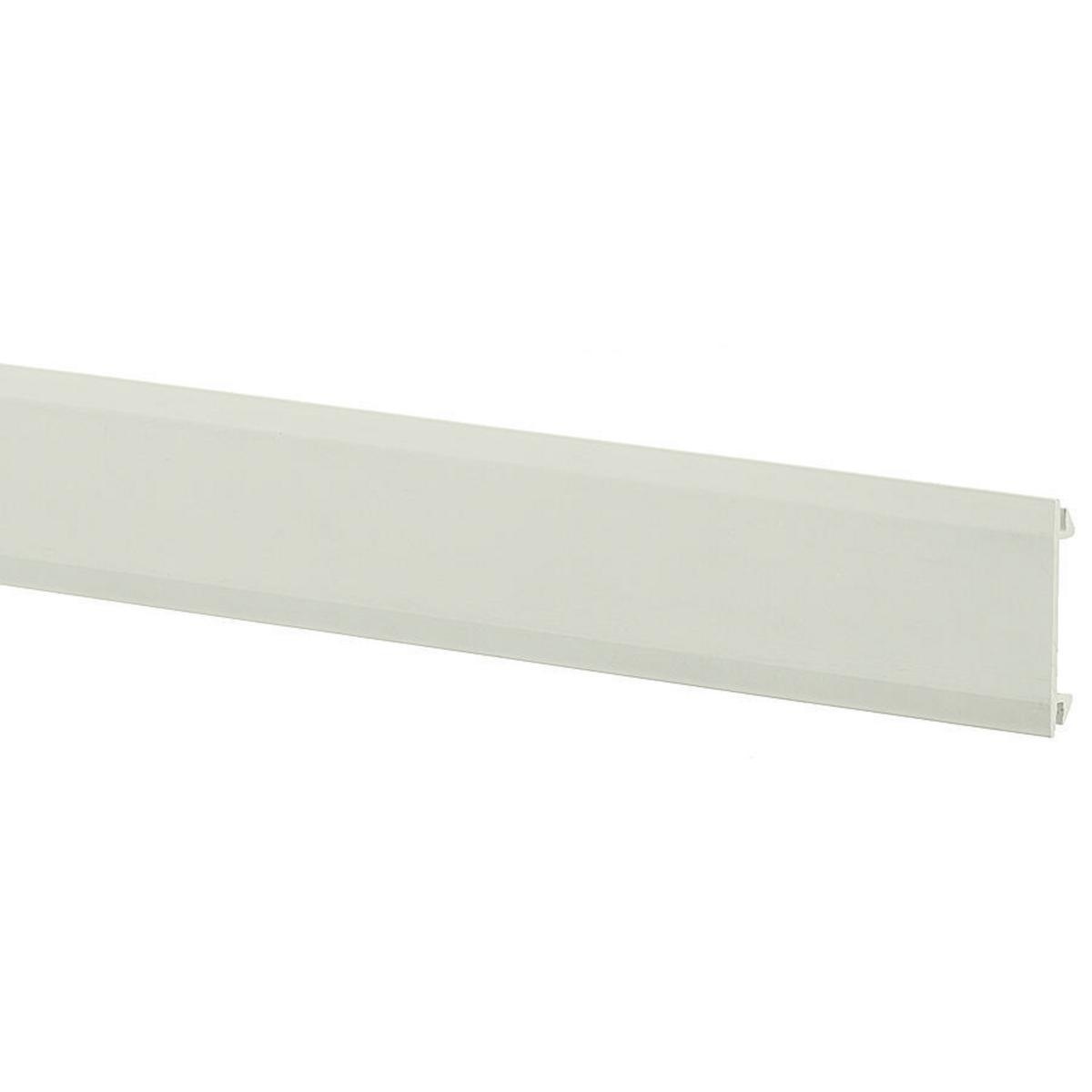

Hubbell PB2C10 Raceway Cover
Part Number # PB2C10
SKU # 2227924
$61.40 / 10Feet
Typical price:$79.50 / Feet
Hubbell PB2C10 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | PB2C10 |
| SKU #: | 2227924 |
| Number of Channels: | 2 |
| Series: | PB2 |
| Suitable For Use With: | BaseTrak 2-Channel Non-Metallic Raceways, BaseTrak® 2-Channel Non-Metallic Raceways, PB2 BaseTrak® Series Non-Metallic Raceway |
| Temperature Rating (Degrees F): | -25.6 to 158 |
| Type: | 2-Channel Removable Standard, Non-Latching, Removable Standard |
| Color: | Off-White, White |
| Country of origin: | US |
| Height: | 1.42, 1.42 in, 1.63 |
| Length: | 10, 10 ft |
| Material: | Extruded Thermoplastic, PVC, Thermoplastic |
| Width: | 4-1/2, 4-1/2 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131710 |
| UPC: | 00783585310022 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$61.40 / 10Feet
Typical price:$79.50 / Feet
Quantity:
- PREMISE WIRING, PB2C10, Raceway Cover, Removable Standard, Series: PB2, 10 ft Length, 4-1/2 in Width, 1.42 in Height, For Use With: BaseTrak 2-Channel Non-Metallic Raceways, Extruded Thermoplastic, Off-White
PB2C10 Item Features
- Eliminates need to order three separate boxes and reducing inventory requirements
- 2-gang divided box available for power, data, voice, audio and video applications
- Boxes utilize Hubbell KP plates or iSTATION modules and bezels
- Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel
- Boxes have three cut-always that can be utilized with Walltrak, Lantrak and Premisetrak (latching) systems
- 5 ft lb impact resistance
- 300 lb crush resistance
- UL94V-0 flame rating
- NEMA 1 rating enclosure
- 1-piece
- Made of UV stabilized PVC
- Office white color
- Cover allows access to multiple channels
- Single and two channel latching raceways are dual rated for both power and data applications, reducing inventory requirements
PB2C10 Standards
RoHS Compliant|UL 5A|EIA/TIA-569A|UL E118895/E119190|CSA C22.2 No. 62|LR87514 CertifiedSKU #2227924Part Number #PB2C10UNSPSC39131710UPC00783585310022
