Brand: Hubbell
PB3BC10

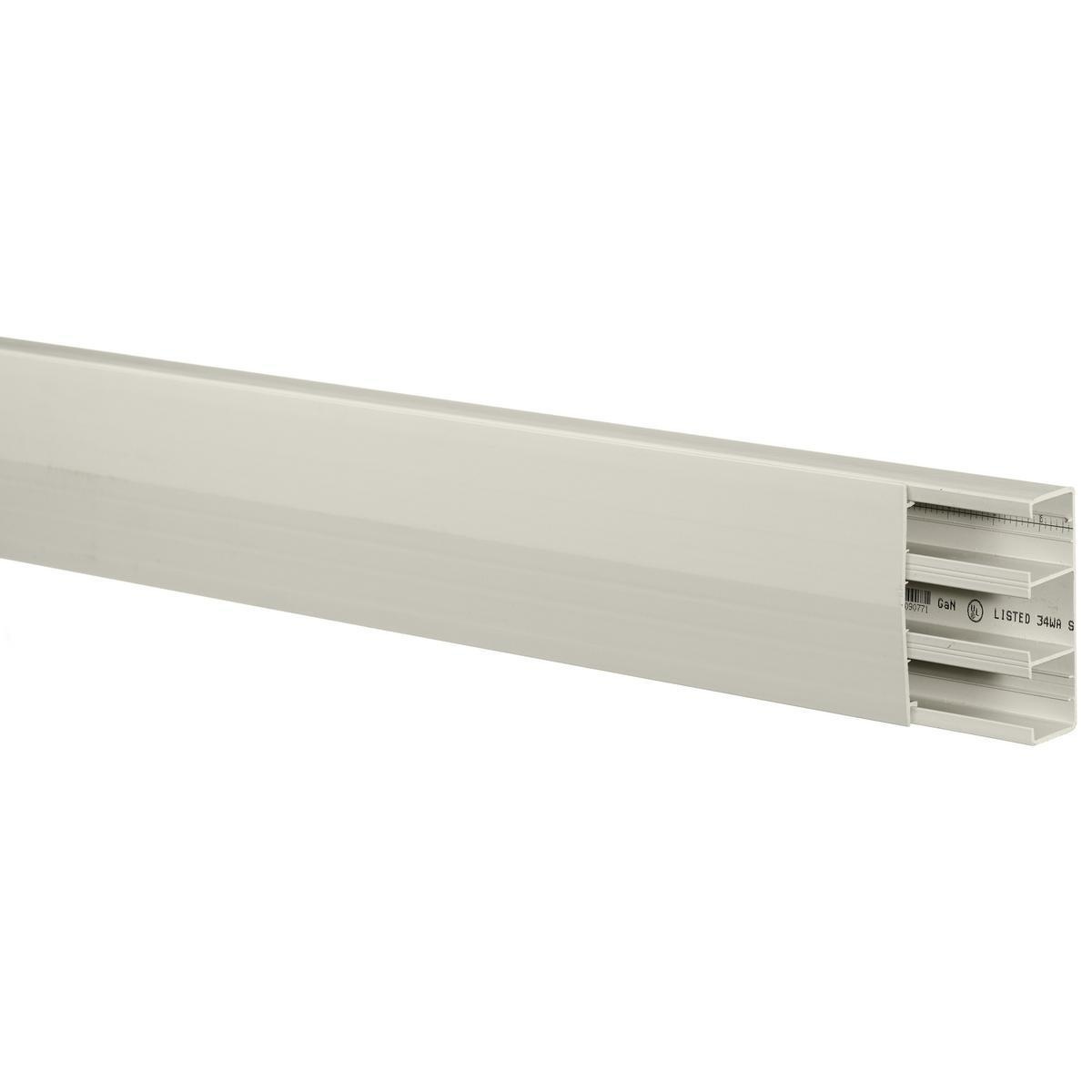

Hubbell PB3BC10 Non-Metallic Raceway
Part Number # PB3BC10
SKU # 2206953
$116.40 / 10Feet
Typical price:$150.50 / Feet
Hubbell PB3BC10 Key Features
Brand: Hubbell
Part Number # PB3BC10
SKU #2206953
Number of Channels: 3
Series: PB3
Temperature Rating (Degrees F): -25.6 to 158, -25.6 to 158 deg F
Type: Non-Latching, Standard
Voltage Rating: 600, 600 VAC
Color: Off-White, White
Country of origin: US
Height: 1.63, 1.63 in
Length: 10, 10 ft
Material: PVC, Thermoplastic
Width: 4-1/2, 4-1/2 in
Manufacturer Name: Hubbell
UNSPSC: 39131710
UPC: 00783585090764
$116.40 / 10Feet
Typical price:$150.50 / Feet
SKU # 2206953
Part Number # PB3BC10
Hubbell PB3BC10 Non-Metallic Raceway
Brand: Hubbell
Part Number: PB3BC10
PREMISE WIRING Basetrak Raceway, Standard, Series: PB3, 10 ft Length, 4-1/2 in Width, 1.63 in Height, 600 VAC, 3 Channels, Removable Cover, -25.6 to 158 deg F, Thermoplastic, Off-White
Additional Description: HUBW-PB3BC10 BASETRAK, BASE AND COVER, 10'
Catalog Description: Hubbell Wiring Device Kellems, Non-Metallic Raceway, BaseTrak Series,Base and Cover, 10' Length
PB3BC10 Application
For both power and data application and non-hazardous locationsPB3BC10 Item Features
- Eliminates need to order three separate boxes and reducing inventory requirements
- 2-gang divided box available for power, data, voice, audio and video applications
- Boxes utilize Hubbell KP plates or iSTATION modules and bezels
- Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel
- Boxes have three cut-always that can be utilized with Walltrak, Lantrak and Premisetrak (latching) systems
- 5 ft lb impact resistance
- 300 lb crush resistance
- UL94V-0 flame rating
- NEMA 1 rating enclosure
- 1-piece
- Made of UV stabilized PVC
- Office white color
- Without knockouts
PB3BC10 Standards
RoHS Compliant|UL 5A|File No. E253976|E253833|CSA C22.2 No. 63 File No. LR87514|NEC Article 381|EIA-569B|UL94V-0 Flammability|NEMA 1|EIA/TIA-569A|UL E118895/E119190|LR87514 CertifiedSKU #2206953Part Number #PB3BC10UNSPSC39131710UPC00783585090764
