Part Number # PBS82
SKU # 2236323
Image provided may only be a representation of
final product and may include optional equipment
PBS82

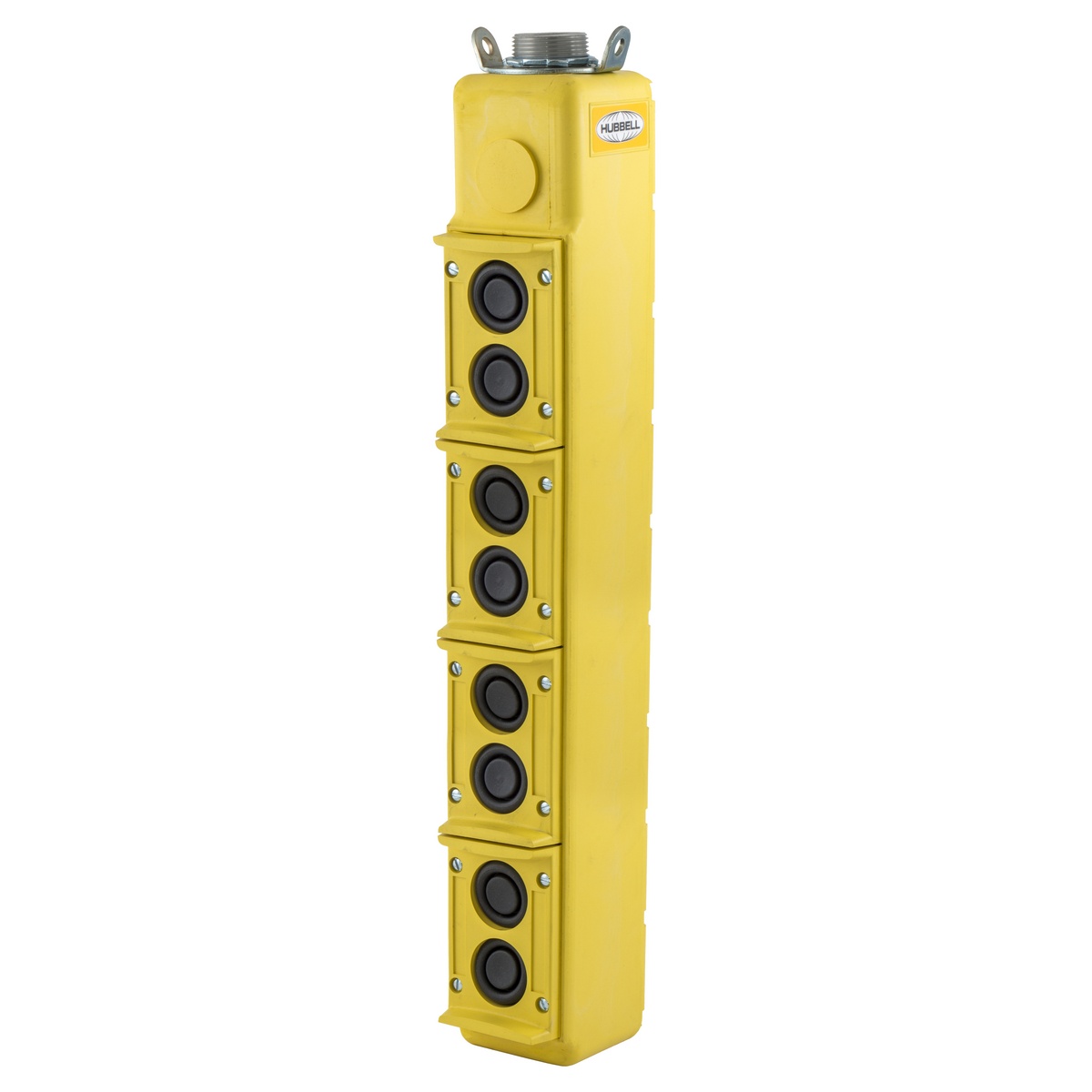

Hubbell PBS82 Pushbutton Station
Part Number # PBS82
SKU # 2236323
Hubbell PBS82 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | PBS82 |
| SKU #: | 2236323 |
| Actuator: | Push Button |
| Amperage Rating: | 0.2, 6 A |
| Contact Configuration: | Momentary |
| Dimensions: | 22.31 in H x 3.25 in W x 3.5 in D |
| NEMA Rating: | 3R, NEMA 3R |
| Number of Poles: | 4 |
| Operating Temperature: | -40 to 75, -40 to 75 deg C |
| Phase: | 1, 1 ph |
| Series: | PBS |
| Type: | 8-Button 2-Speed Full Heavy Duty Industrial Grade Non-Metallic Pilot Duty Standard |
| Connection type: | Screw Terminal |
| Country of origin: | US |
| Mounting type: | Cable, Surface |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121561 |
| UPC: | 00783585610825 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell PBS82 Pushbutton Station
Brand: Hubbell
Part Number: PBS82
Wiring Device-Kellems Pushbutton Station, 8-Button 2-Speed Full Heavy Duty Industrial Grade Non-Metallic Pilot Duty Standard, Series: PBS, 250 VAC, 6 A, 4 Pole, Momentary Contact Configuration, 1 ph, Push Button Actuator, Screw Terminal Connection, 3R NEMA Rating, Cable Mounting, -40 to 75 deg C Operating, Yellow, 22.31 in H x 3.25 in W x 3.5 in D
Additional Description: HUBW-PBS82 (N) BUTTON STATION, 8 BUTTON 2 SPEED BUTTON NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Switches and Lighting Controls, Industrial Grade, Pendant Controls, Push Button Station, 8) Buttons- Two Speed, Pilot Duty, 250V AC Max, Terminal Screws, Yellow
PBS82 Application
Indoor and Outdoor ApplicationsPBS82 Item Features
- Moulded enclosure, high visibility safety yellow
- Ground connection at the conduit entrance/cable support area
- Mechanical interlock prevents activating both buttons simultaneously
PBS82 Standards
UL 508SKU #2236323Part Number #PBS82UNSPSC39121561UPC00783585610825
