Brand: Hubbell
PL1ABC7

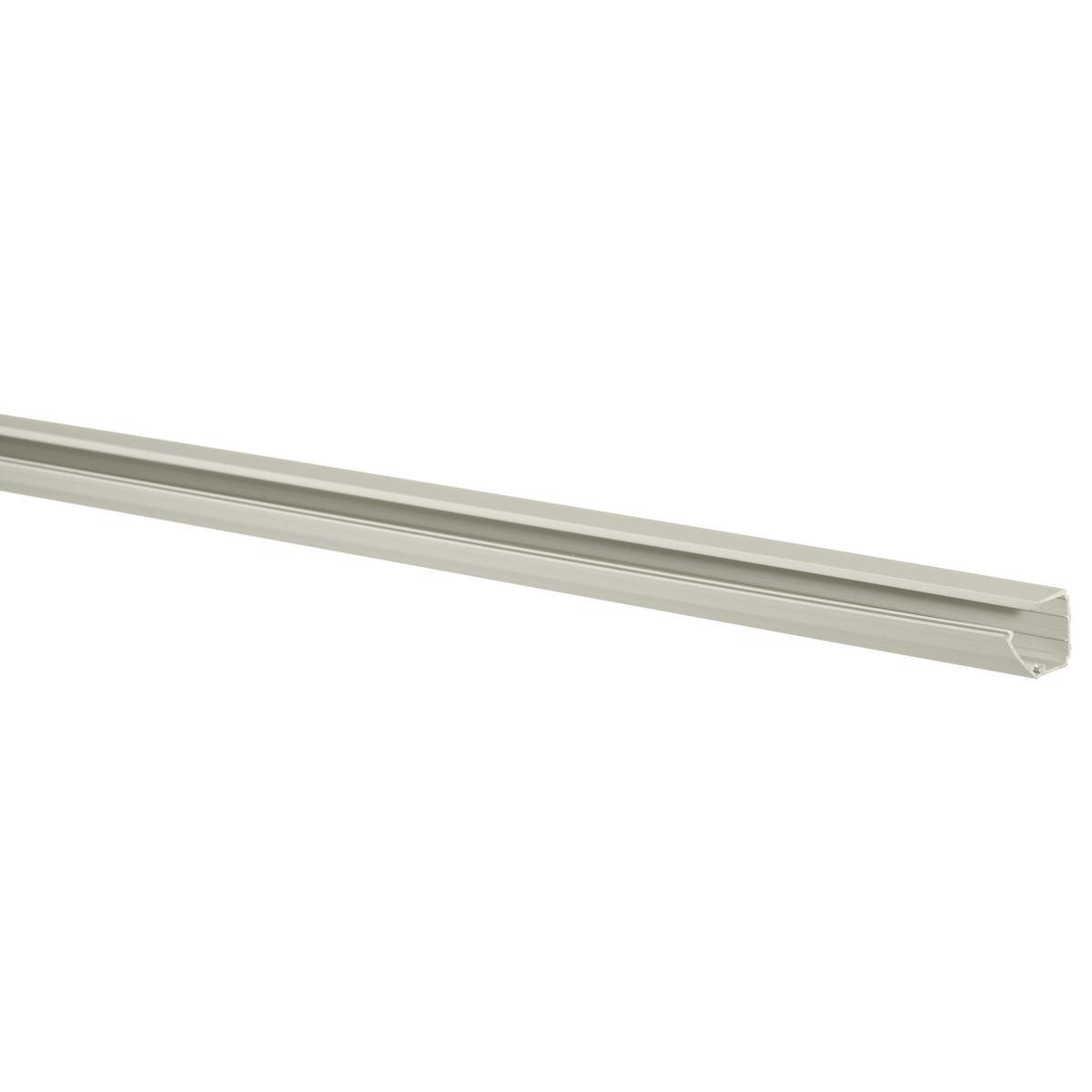

Hubbell PL1ABC7 Latching Raceway
Part Number # PL1ABC7
SKU # 2290075
$32.97 / 7Feet
Typical price:$50.40 / Feet
Hubbell PL1ABC7 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | PL1ABC7 |
| SKU #: | 2290075 |
| Number of Channels: | 1 |
| Series: | PL1 |
| Temperature Rating (Degrees F): | -25.6 to 158, -25.6 to 158 deg F |
| Type: | Standard |
| Color: | Off-White |
| Country of origin: | US |
| Height: | 1.04, 1.04 in |
| Length: | 7, 7 ft |
| Material: | Thermoplastic |
| Width: | 1.38, 1.38 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131710 |
| UPC: | 00783585090221 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$32.97 / 7Feet
Typical price:$50.40 / Feet
Quantity:
- PREMISE WIRING, PL1ABC7, Latching Raceway, Standard, Series: PL1, 7 ft Length, 1.38 in Width, 1.04 in Height, 600 V AC, 1 Channels, Adhesive Back, Integral Cover, -25.6 to 158 deg F, Thermoplastic, Off-White
PL1ABC7 Application
For both power and data application and non-hazardous locationsPL1ABC7 Item Features
- Eliminates need to order three separate boxes and reducing inventory requirements
- 2-gang divided box available for power, data, voice, audio and video applications
- Boxes utilize Hubbell KP plates or iSTATION modules and bezels
- Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel
- Boxes have three cut-always that can be utilized with Walltrak, Lantrak and Premisetrak (latching) systems
- 5 ft lb impact resistance
- 300 lb crush resistance
- UL94V-0 flame rating
- NEMA 1 rating enclosure
- Made of UV stabilized PVC
- Office white color
- Without knockouts
PL1ABC7 Standards
RoHS Compliant|UL 5A|File No. E253976|E253833|CSA C22.2 No. 63 File No. LR87514|NEC Article 381|EIA-569B|UL94V-0 Flammability|NEMA 1|EIA/TIA-569A|UL E118895/E119190|LR87514 CertifiedSKU #2290075Part Number #PL1ABC7UNSPSC39131710UPC00783585090221
