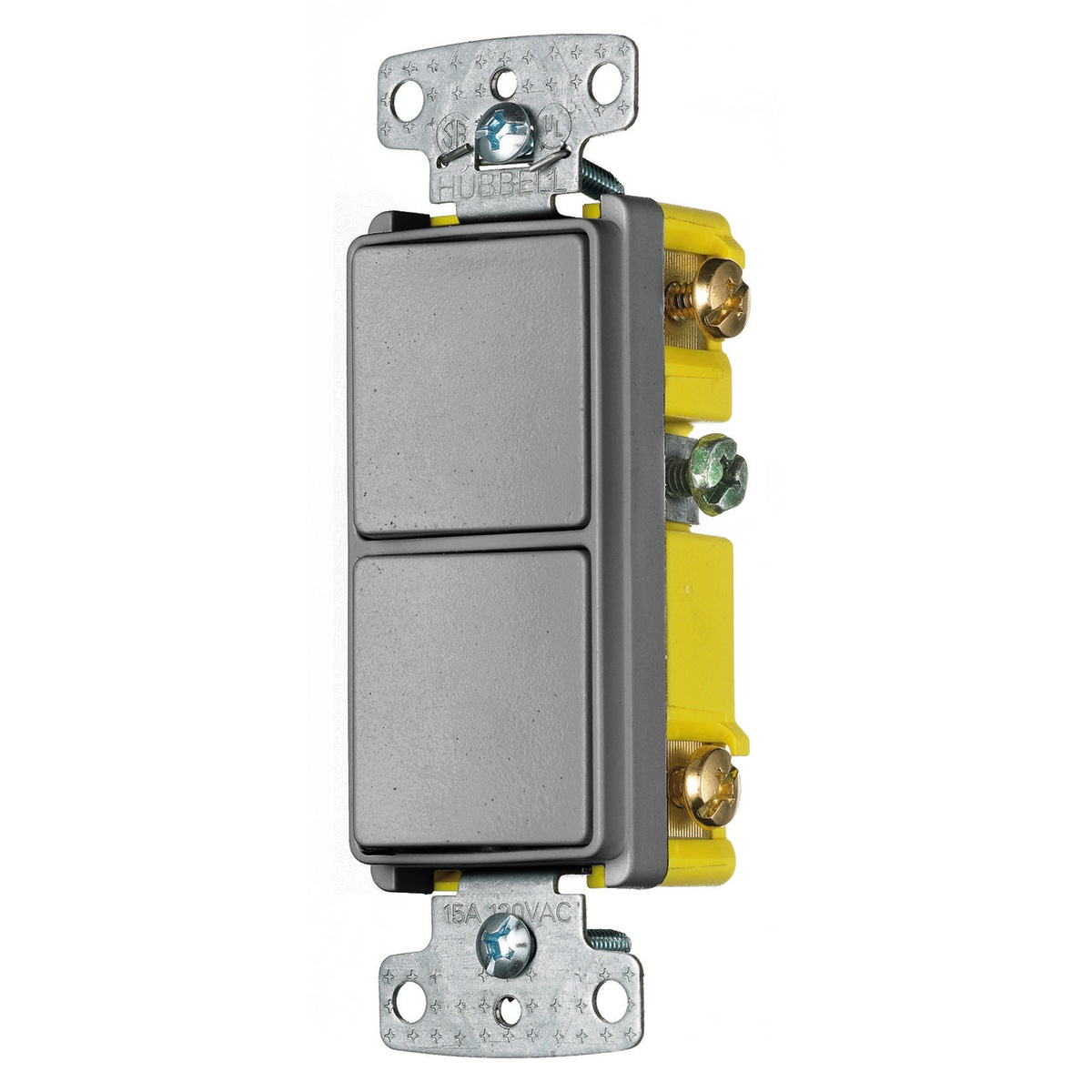

Part #:RCD101GY
SKU #: 2346646
$30.64/EA
Key Features
Part #:RCD101GY
SKU #: 2346646
Brand: Hubbell
Actuator: Rocker
Electrical Ratings: 15 A at 120/277 VAC, 15 A, 120/277 VAC, 4155 W
Environmental Conditions: -20 to 60 deg C Operating Temperature, -40 to 75 deg C Temperature
Mounting: Threaded
Number of Poles: 1
$30.64/EA
- Mini-rockers provide multiple switches in a compact 1-gang
- Maximize control while maintaining function and appearance
- Low profile, less than 1 in D
- Elegant appearance, smooth quiet rocker action
- Side wired connectivity
- Brass rocker button and terminal, zinc plated steel bridge, drive screw and mounting screws, plastic base, cover, rocker button, spring housing and washers
- Stainless steel grounding spring, silver switch contact, steel spring
- 1500 VAC minimum for 1 min withstands dielectric voltage
- 14 to 12 AWG copper stranded or solid wire size only back and side wire, 14 AWG solid copper wire only push wire mechanical terminal
- https://youtu.be/W6nh0aLbE4o
Specifications
Brand: Hubbell
Actuator: Rocker
Electrical Ratings: 15 A at 120/277 VAC, 15 A, 120/277 VAC, 4155 W
Environmental Conditions: -20 to 60 deg C Operating Temperature, -40 to 75 deg C Temperature
Mounting: Threaded
Number of Poles: 1
Operating Cycles: 30000, 30000 Cycles
Series: Decorator
Size: 4.2 in H x 1.32 in W x 1 in D, 4.2 in H x 1.32 in W x 1.11 in D
Type: 2-Position Self-Grounding Snap Action Standard, 2-Position Standard, Side Wired Snap Action
Color: Gray
Country of origin: CN
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39122226
UPC: 00883778110238
Item FeaturesResidential Applications
Item Features
Item FeaturesRoHS Compliant|UL 20|UL File No. E3896|CSA Certified|NEMA WD1/WD5
