Part Number # RR450
SKU # 2413008
RR450

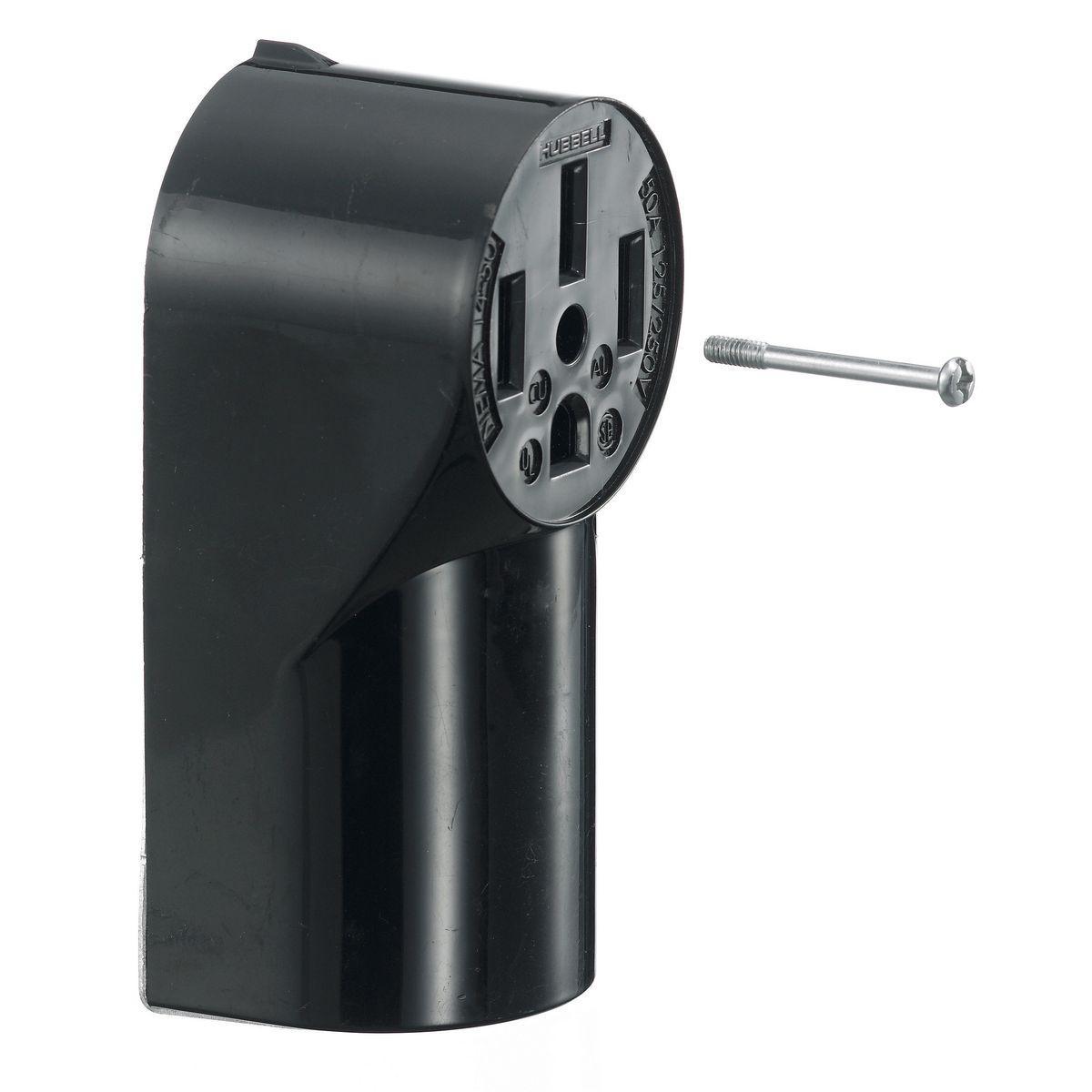

Hubbell RR450 Wiring Device-Kellems tradeSELECT Straight Blade Power Receptacle
Part Number # RR450
SKU # 2413008
Hubbell RR450 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | RR450 |
| SKU #: | 2413008 |
| Amperage Rating: | 50 A |
| Dimensions: | 5.49 in L x 2.5 in W x 0.96 in H |
| NEMA Rating: | 14-50R, NEMA 14-50R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Terminal Type: | Pressure Screw, Screw |
| Type: | 1-Phase Grounding Single Surface Mount Standard, 1-Phase Single Surface Mounted Screw Mount |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic, Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00883778100833 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell RR450 Wiring Device-Kellems tradeSELECT Straight Blade Power Receptacle
Brand: Hubbell
Part Number: RR450
Wiring Device-Kellems tradeSELECT® Straight Blade Power Receptacle, Single Surface Mounted, 125/250 VAC, 50 A, 3 Pole, 4 Wires, NEMA 14-50R NEMA Rating, Residential Grade, Screw Terminal, Composite/Thermoplastic, Black, 5.49 in L x 2.5 in W x 0.96 in H Dimensions
Additional Description: HUBW-RR450 RECPT, SB, 50A 125/250V, 3P4W, SURF, BK
Catalog Description: tradeSELECT® Straight Blade Residential Grade, Single, 50A 125/250V, 3-Pole 4-Wire Grounding, 14-50R, Surface Mount
RR450 Application
Indoor Dry EnvironmentRR450 Item Features
- Flush Mount for 1- or 2-Gang Box
- https://youtu.be/W6nh0aLbE4o
RR450 Standards
RoHS Compliant|NEMA WD1/WD5|UL 498/943|CSA CertifiedSKU #2413008Part Number #RR450UNSPSC39121406UPC00883778100833
Image provided may only be a representation of final product and may include optional equipment
