Part Number # 223
SKU # 2439170
Image Disclaimers Message
223

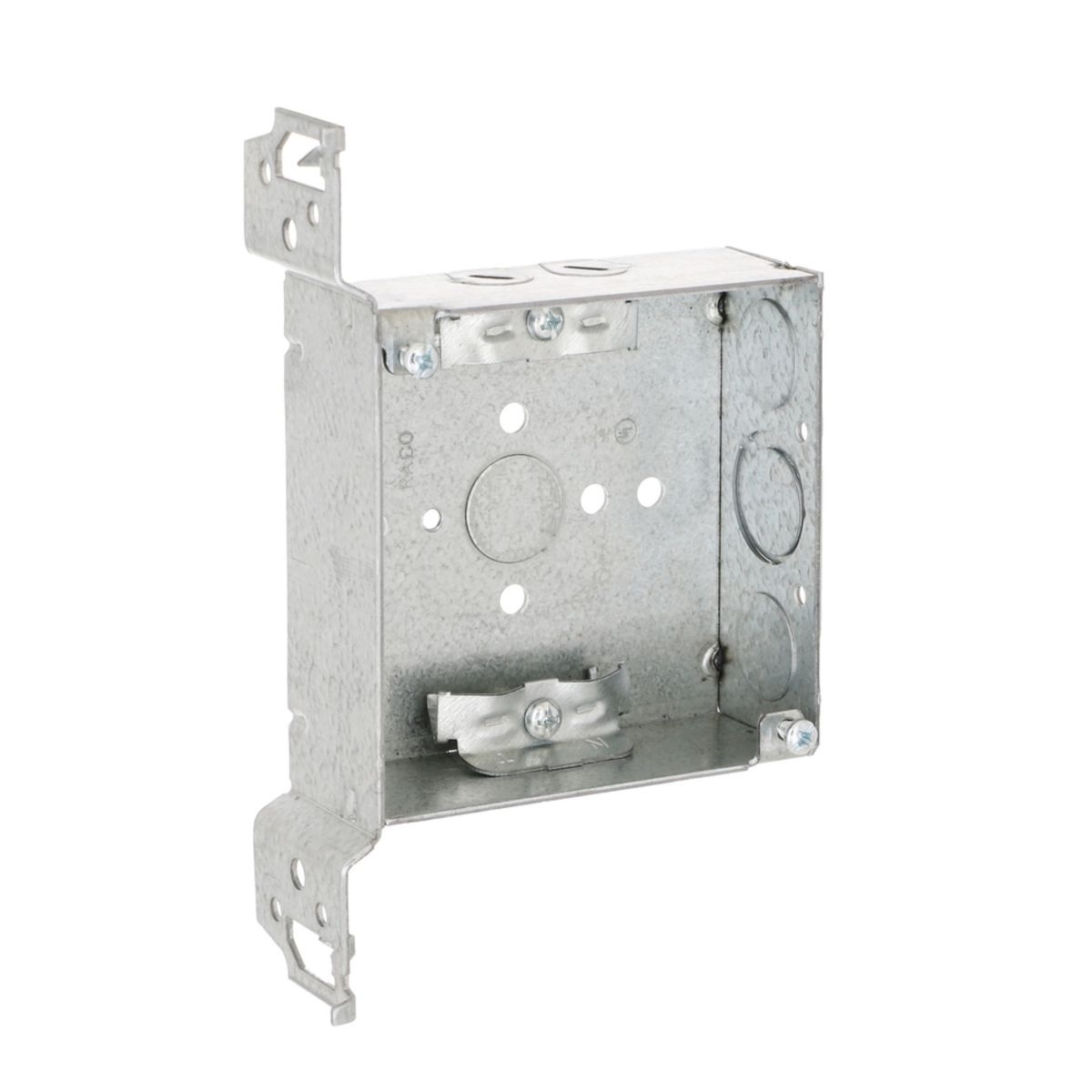

Hubbell-Raco 223 Square Box
Part Number # 223
SKU # 2439170
$934.75 / 25Each
Typical price:$1639.48 / Each
Hubbell-Raco 223 Key Features
| Brand: | Hubbell-Raco |
|---|---|
| Part Number # : | 223 |
| SKU #: | 2439170 |
| Capacity: | 21 cu-in |
| Dimensions: | 4 in H x 4 in W x 1-1/2 in D |
| Finish: | Pre-Galvanized |
| Knockout Size: | 1/2 in |
| Number of Knockouts: | 8 |
| Color: | Silver |
| Country of origin: | CN |
| Material: | Steel |
| Mounting type: | Flush |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121303 |
| UPC: | 00050169002230 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$934.75 / 25Each
Typical price:$1639.48 / Each
Quantity:
Hubbell-Raco 223 Square Box
Brand: Hubbell-Raco
Part Number: 223
RACO® Square Box, 8 Knockouts, 1/2 in Knockout, Squared, Flush Mount, 21 cu-in, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 1-1/2 in D
Additional Description: RACO-223 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP
Catalog Description: 4 In. Square Boxes, 1-1/2 In. Deep - Welded with NMSC Clamps, 600V, FS,Flush
223 Application
Electrical, Lighting Fixtures, Switches or Receptacles Applications223 Includes
FM Bracket and Non-Metallic Sheathed Cable Clamp223 Item Features
- Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices
- BOX-LOC (MS) bracket box is a snap to install
- TKO knockouts offer greater flexibility with RACO patented combination 1/2 in and 3/4 in knockout
- Suitable for use without a bonding jumper in circuits above or below 250 volts
- Combination cover screw heads provide for faster mud ring/cover installation
- FM bracket mounts flat on side of stud and provides a rigid/secure box installation
- Slots in the bracket engage the lip of the stud and actually crimp it as you press the bracket on the stud, quickly locking it in place
- Acceptable for use in 2 hr fire rated walls
223 Standards
UL File No. E195978223 Warranty
1 YearSKU #2439170Part Number #223UNSPSC39121303UPC00050169002230
