Part Number # 232MS
SKU # 2405878
Image Disclaimers Message
232MS

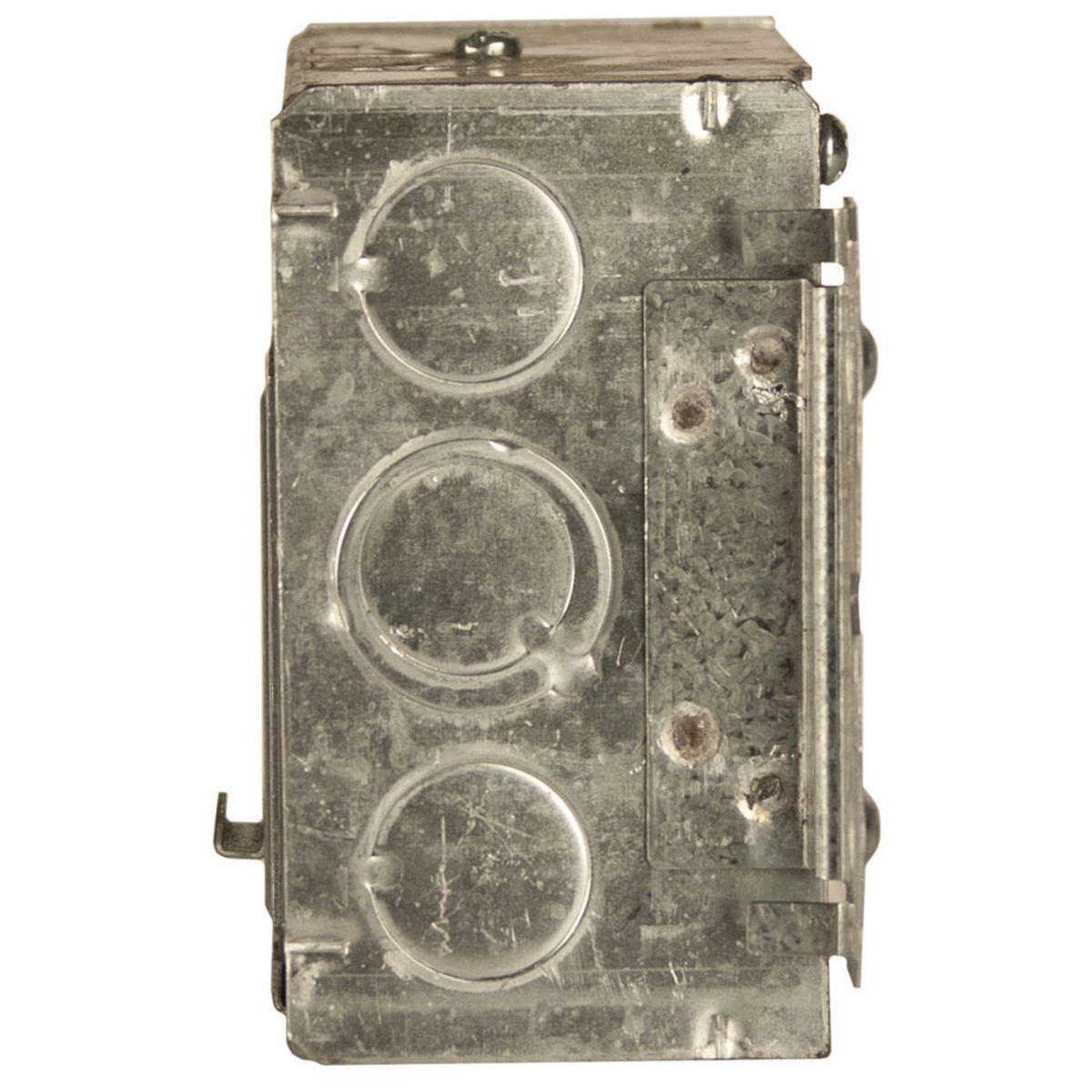

Hubbell-Raco 232MS Square Box
Part Number # 232MS
SKU # 2405878
$494.50 / 25Each
Typical price:$867.20 / Each
Hubbell-Raco 232MS Key Features
| Brand: | Hubbell-Raco |
|---|---|
| Part Number # : | 232MS |
| SKU #: | 2405878 |
| Capacity: | 30.3 cu-in |
| Dimensions: | 4 in H x 4 in W x 2-1/8 in D, 5.86 in H x 4 in W x 2.125 in D |
| Knockout Size: | 1/2 to 3/4 in |
| Number of Gangs: | 2 |
| Number of Knockouts: | 11 |
| Number of Outlets: | 2 |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Steel |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121303 |
| UPC: | 00050169500736 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$494.50 / 25Each
Typical price:$867.20 / Each
Quantity:
Hubbell-Raco 232MS Square Box
Brand: Hubbell-Raco
Part Number: 232MS
RACO Square Box, 2 Outlets, 2 Gangs, 11 Knockouts, 1/2 to 3/4 in Knockout, Squared, 30.3 cu-in, Steel, Gray, 5.86 in H x 4 in W x 2.125 in D
Additional Description: RACO-232MS 4SQBX O/W 2-1/8DP 1/2-3/4TKO W/STAB-IT
Catalog Description: 4 In. Square Box, 2-1/8 In. Deep - Welded with STAB-IT Connector,600V,Raised Ground, 8" #12 Solid Copper Pigtail, UBS, M Bracket
232MS Application
Commercial, Lighting Fixtures, Switches or Receptacles Applications232MS Includes
3/8 in Setback "M" Bracket, STAB-IT Connector and 12 AWG 8 in Solid Copper Pigtail232MS Item Features
- Designed for quick installation of flex, MC, MCI, MCI-A, AC, and hcf cable
- TKO knockouts offer greater flexibility with RACO patented combination 1/2 in and 3/4 in knockout
- UBS support - welded to box, preset bend points to work with wall thickness 2-1/2 to 6 in
- Universal box stabilizer bracket
- Raised ground
- Welded steel construction with UBC support with preset bend points to work with wall thickness 2-1/2 to 6 in and M brackets on both sides of the box
- Combination Phillips/slotted screw heads
- Acceptable for use in 2 hr fire rated walls
- https://youtu.be/_2Hx0_FM0kI;https://youtu.be/FlYORAM_Klo
232MS Standards
UL File No. E195978SKU #2405878Part Number #232MSUNSPSC39121303UPC00050169500736
