Part Number # 236
SKU # 2459736
236
Hubbell-Raco 236
Part Number # 236
SKU # 2459736
$906.00 / 25Each
Typical price:$1588.85 / Each
Hubbell-Raco 236 Key Features
| Brand: | Hubbell-Raco |
|---|---|
| Part Number # : | 236 |
| SKU #: | 2459736 |
| Type: | Welded |
| UNSPSC: | 39121303 |
| UPC: | 00050169002360 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$906.00 / 25Each
Typical price:$1588.85 / Each
Quantity:
Hubbell-Raco 236
Brand: Hubbell-Raco
Part Number: 236

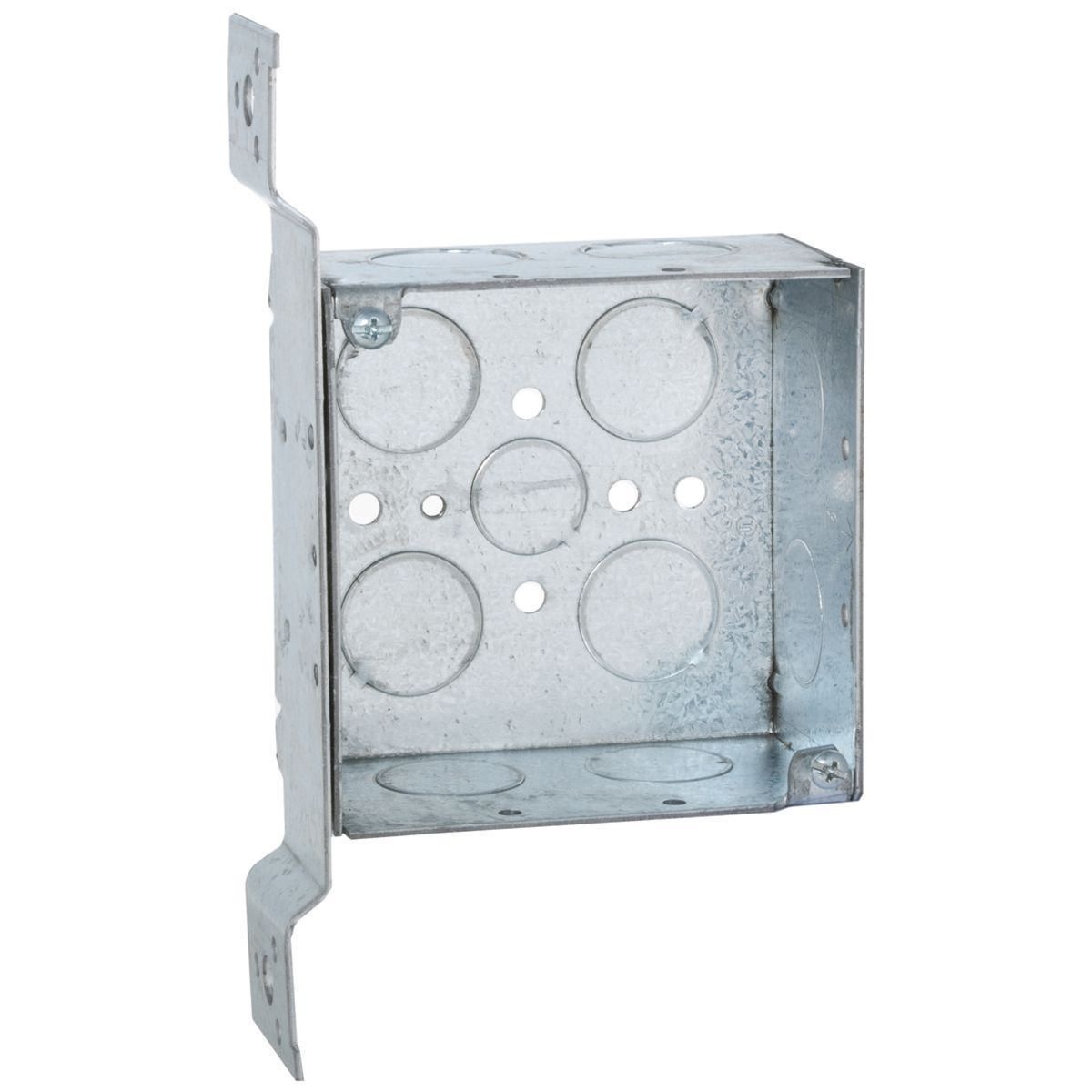

RACO® Square Box, 11 Knockouts, 1/2 in, 3/4 in Knockout, Squared, Flush Mount, 30.3 cu-in, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D
Additional Description: RACO-236 4SQ BOX 2-1/8 DEEP FM-BRKT 1/2-3/4 KO
Catalog Description: 4 In. Sq. Brkt. Box, 2-1/8 In. Deep - Welded with Conduit KO's, 600V,FM,Flush 1/2-3/4 KO
236 Application
Electrical, Lighting Fixtures, Switches or Receptacles Applications236 Includes
FM Bracket236 Item Features
- TKO knockouts offer greater flexibility with RACO patented combination 1/2 in and 3/4 in knockout
- UBS support - welded to box, preset bend points to work with wall thickness 2-1/2 to 6 in
- UPC barcoded
- Welded construction
- FM style bracket, flush
- Combination cover screw heads provide for faster mud ring/cover installation
- Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices
- Acceptable in 2 hr fire rated walls
- Suitable for use without a bonding jumper in circuits above or below 250 volts
236 Standards
ARRA Compliant|Buy American Act Compliant|UL File No. E195978|UL Listed236 Warranty
1 YearSKU #2459736Part Number #236UNSPSC39121303UPC00050169002360
Image provided may only be a representation of final product and may include optional equipment
