Part Number # 3793-5
SKU # 2345200
Image Disclaimers Message
Brand: Hubbell-Raco
3793-5

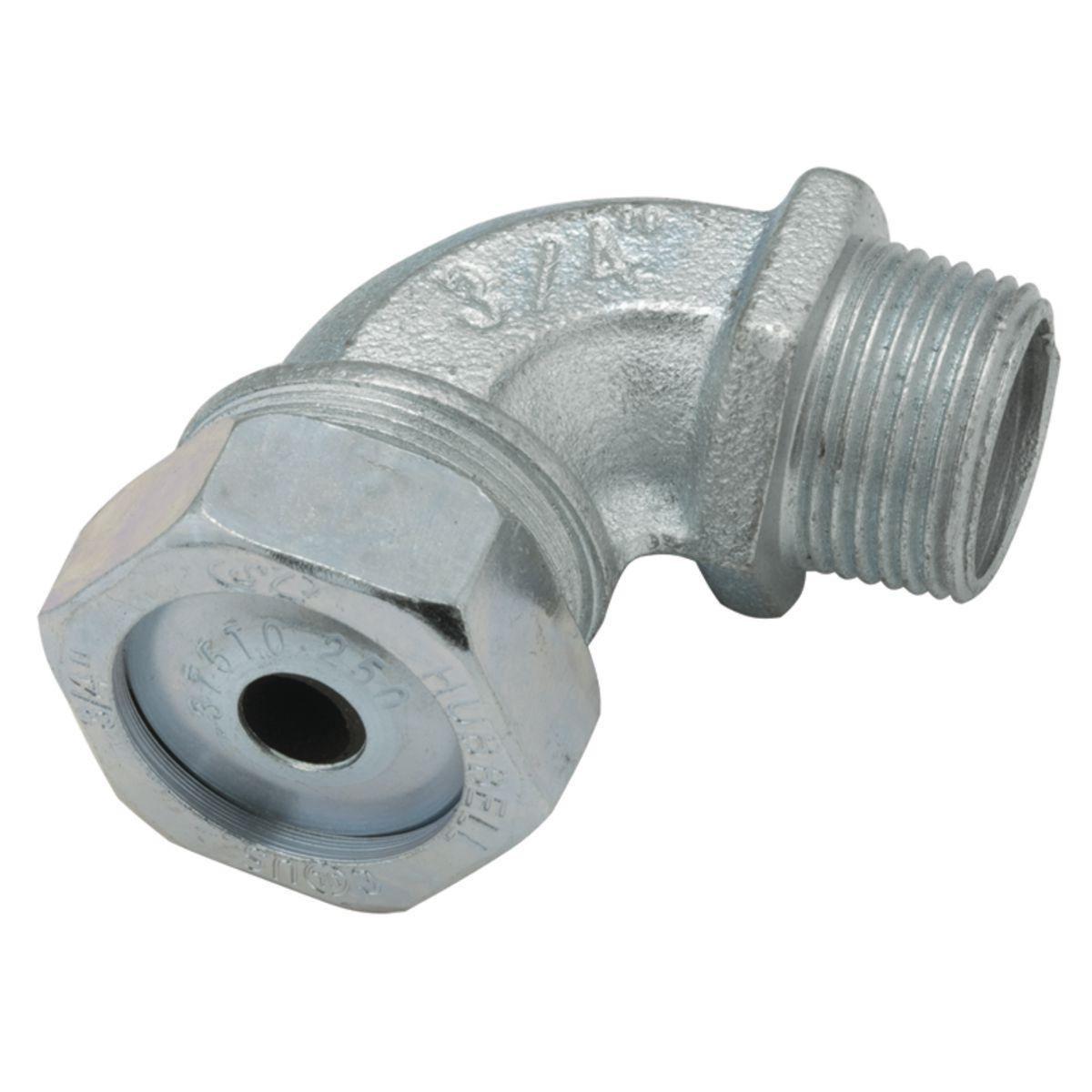

Hubbell-Raco 3793-5 Angled Cord Connector
Part Number # 3793-5
SKU # 2345200
$669.11 / 10Each
Typical price:$1089.70 / Each
Hubbell-Raco 3793-5 Key Features
| Brand: | Hubbell-Raco |
|---|---|
| Part Number # : | 3793-5 |
| SKU #: | 2345200 |
| Angle: | 90, 90 deg |
| Cable Openings: | 0.7 to 0.85, 0.7 to 0.85 in |
| Dimensions: | 1-13/32 in OD |
| Finish: | Electro-Plated Zinc |
| Trade Size: | 3/4, 3/4 in |
| Type: | Form 3 Liquidtight Strain Relief |
| Color: | Silver |
| Connection type: | Thread, Threaded |
| Country of origin: | CN |
| Material: | Malleable Iron |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121431 |
| UPC: | 00050169379356 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$669.11 / 10Each
Typical price:$1089.70 / Each
Quantity:
Hubbell-Raco 3793-5 Angled Cord Connector
Brand: Hubbell-Raco
Part Number: 3793-5
RACO Angled Cord Connector, Form 3 Liquidtight Strain Relief, 3/4 in Trade, Cable Openings: 0.7 to 0.85 in, Thread Connection, 90 deg Angle, Malleable Iron, Electro-Plated Zinc, Silver, 1-13/32 in OD Dimensions
Additional Description: RACO-3793-5 CORDGRIP CONN 90 3/4 IN (.700-.850) IRON
Catalog Description: 90 Degree Strain Relief Cord Connectors Steel/Malleable Iron, .700 -.850In. Cable Ranges
3793-5 Application
Used in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable, electrical applications3793-5 Item Features
- All steel/malleable construction provides mechanical strength
- Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
- Washers have size range imprinted for indentification - eliminates misidentifying inventory
- Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel
- All metallic components are zinc electroplated for corrosion protection
SKU #2345200Part Number #3793-5UNSPSC39121431UPC00050169379356
