Part Number # SDSB1A
SKU # 2239212
Image provided may only be a representation of
final product and may include optional equipment
SDSB1A

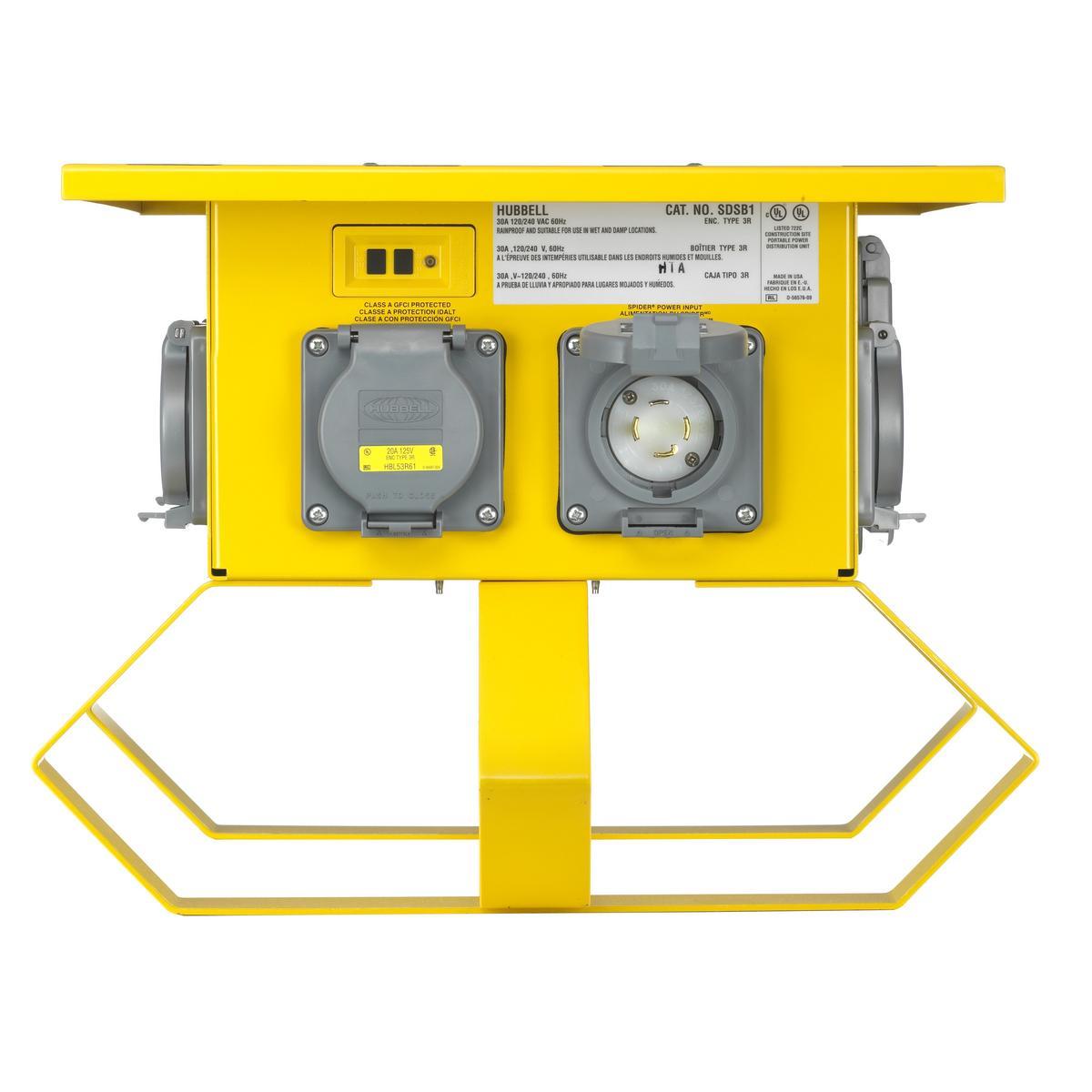

Hubbell SDSB1A II Temporary Power Complete Unit
Part Number # SDSB1A
SKU # 2239212
Hubbell SDSB1A Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | SDSB1A |
| SKU #: | 2239212 |
| Amperage Rating: | 50 A |
| Dimensions: | 13.7 in H x 18.75 in W, 18.75 in W x 13.7 in H |
| Enclosure: | NEMA 3R |
| NEMA Rating: | (6) 5-20R, 5-20R/L5-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Type: | 3-Phase Heavy Duty Standard Sized Straight Blade, 3-Phase Pre-Wired Heavy Duty Standard Sized Straight Blade |
| Country of origin: | PR |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585370897 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell SDSB1A II Temporary Power Complete Unit
Brand: Hubbell
Part Number: SDSB1A
Wiring Device-Kellems Spider II Temporary Power Complete Unit, 3-Phase Pre-Wired Heavy Duty Standard Sized Straight Blade, 120/240 VAC, 50 A, 12480 W Power, 2 Pole, 3 Wires, NEMA 3R Enclosure, 5-20R/L5-30R NEMA Rating, Thermoplastic, Yellow, 18.75 in W x 13.7 in H
Additional Description: HUBW-SDSB1A (N) SPIDER BOX, 30A. STRAIGHTBLADE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Temporary Power Products, Spider Portable Power, Complete Unit, Straight Blade Style, With 7) 20A 125V Receptacles- 1) 30A 125/250V Inlet and Outlet, Yellow
SDSB1A Application
Indoor and Outdoor ApplicationsSDSB1A Item Features
- Individual GFCI modules
- TYPE 3R metallic enclosure and heavy duty,abuse resistant legs
- Standard stab termination circuit breakers with gasketed lift cover
SDSB1A Standards
UL 514C|UL 467|UL 50|CSA CertifiedSKU #2239212Part Number #SDSB1AUNSPSC39121406UPC00783585370897
