Brand: Hubbell

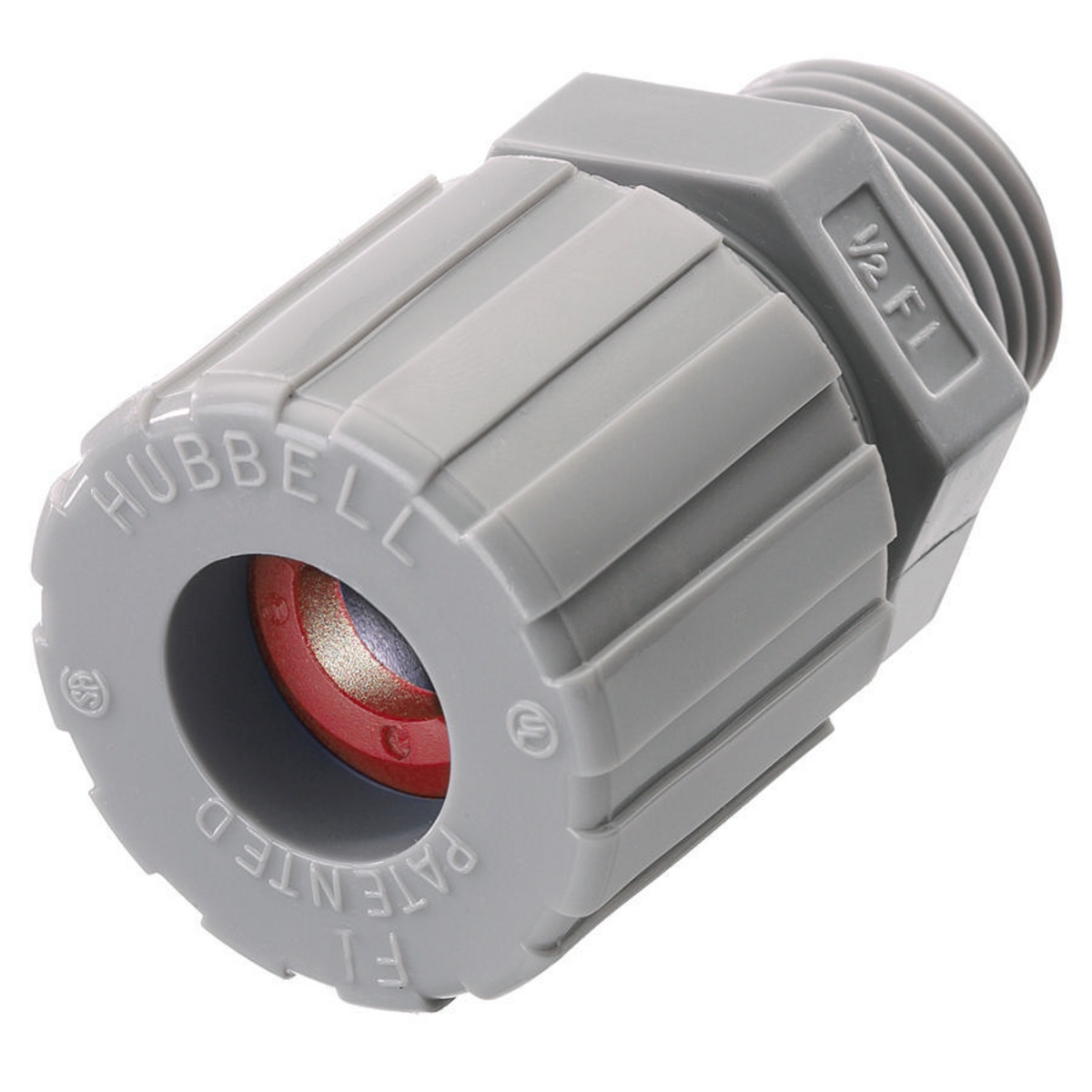

Hubbell SHC1009CR Cord Connector
![PDP image](https://do1jvmih5t6vs.cloudfront.net/userfiles/ad/large/wiring_device-kellems_shc1009cr.jpg)
Image Disclaimers Message
Brand: Hubbell
Hubbell SHC1009CR Cord Connector
Brand: Hubbell
Hubbell SHC1009CR Cord Connector
Part #:SHC1009CR
SKU #: 2164300
$9.36/EA
Key Features
Part #:SHC1009CR
SKU #: 2164300
Brand: Hubbell
Cable Openings: 0.19 to 0.25 in, 0.19 to 0.25 in Dia
Dimensions: 1 in Dia x 1.53 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
$9.36/EA
- Nylon cord connector resists most common industrial corrosives
- Hubbells nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design
- They are ideal for any application where weight, conductivity or corrosion may be an issue
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
- 0.67 to 0.7 in recommended knockout hole
- 0.43 in L thread
- 0.45 in Dia throat
Specifications
Brand: Hubbell
Cable Openings: 0.19 to 0.25 in, 0.19 to 0.25 in Dia
Dimensions: 1 in Dia x 1.53 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225, -30 to 225 deg F
Trade Size: 3/8, 3/8 in
Type: Form 1 Standard, Form 1 Standard Straight
Cable type: Jacketed
Color: Gray
Connection type: MNPT, MNPT Straight
Material: Nylon
UNSPSC: 39121431
UPC: 00783585207919
Hubbell SHC1009CR Cord Connector
Wiring Device-Kellems Cord Connector, Form 1 Standard Straight, 3/8 in Trade, 1 Conductor, Cable Openings: 0.19 to 0.25 in, MNPT Connection, Nylon, Smooth, Gray, -30 to 225 deg F, 1 in Dia x 1.53 in L Dimensions
Additional Description: HUBW-SHC1009CR CORDCON, STR ML, .19-.25, 3/8"", NYL"" NYL
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .19-.25, 3/8"", Nylon""
