SHC1012CR

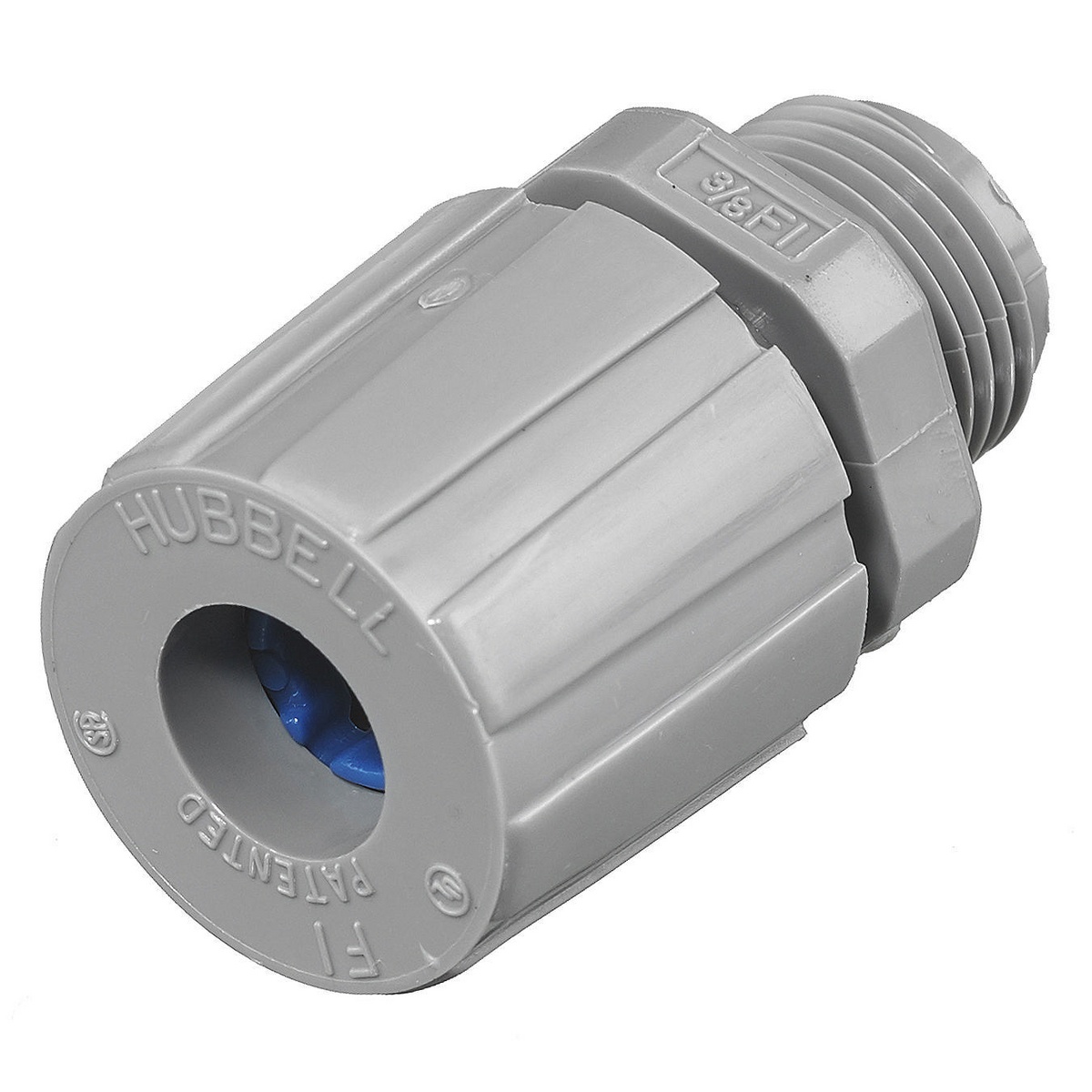

Hubbell SHC1012CR Cord Connector
Part Number # SHC1012CR
SKU # 2320078
$10.50 / Each
Typical price:$19.95 / Each
Hubbell SHC1012CR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | SHC1012CR |
| SKU #: | 2320078 |
| Cable Openings: | 0.38 to 0.44 in, 0.38 to 0.44 in Dia |
| Dimensions: | 1 in Dia x 1.53 in L |
| Finish: | Smooth |
| Number of Conductors: | 1 |
| Temperature Rating (Degrees F): | -30 to 225, -30 to 225 deg F |
| Trade Size: | 3/8, 3/8 in |
| Type: | Form 1 Standard, Form 1 Standard Straight |
| Color: | Gray |
| Connection type: | MNPT, MNPT Straight |
| Country of origin: | PR, US |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121431 |
| UPC: | 00783585207940 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.50 / Each
Typical price:$19.95 / Each
Quantity:
Hubbell SHC1012CR Cord Connector
Brand: Hubbell
Part Number: SHC1012CR
Wiring Device-Kellems Cord Connector, Form 1 Standard Straight, 3/8 in Trade, 1 Conductor, Cable Openings: 0.38 to 0.44 in, MNPT Connection, Nylon, Smooth, Gray, -30 to 225 deg F, 1 in Dia x 1.53 in L Dimensions
Additional Description: HUBW-SHC1012CR CORDCON, STR ML, .38-.44", 3/8", NYL, GY NYL, GY"" CORDCON, STR ML, .38-.44", 3/8", NYL
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .38-.44", 3/8", Nylon
SHC1012CR Application
For wet location when used with a listed nylon washer between box and fitting ApplicationsSHC1012CR Item Features
- Nylon cord connector resists most common industrial corrosives
- Provides effective pullout protection
- Lightweight design
- https://youtu.be/6SdOpBP_CJk
SHC1012CR Standards
CSA Certified|NEC Class I, Division 2, Class II, Division 1/2, Class Ill, Division 1/2 Hazardous Locations|RoHS Compliant|UL 514B|UL 94 V-2 Flammability RatingSKU #2320078Part Number #SHC1012CRUNSPSC39121431UPC00783585207940
