SHC1035CR

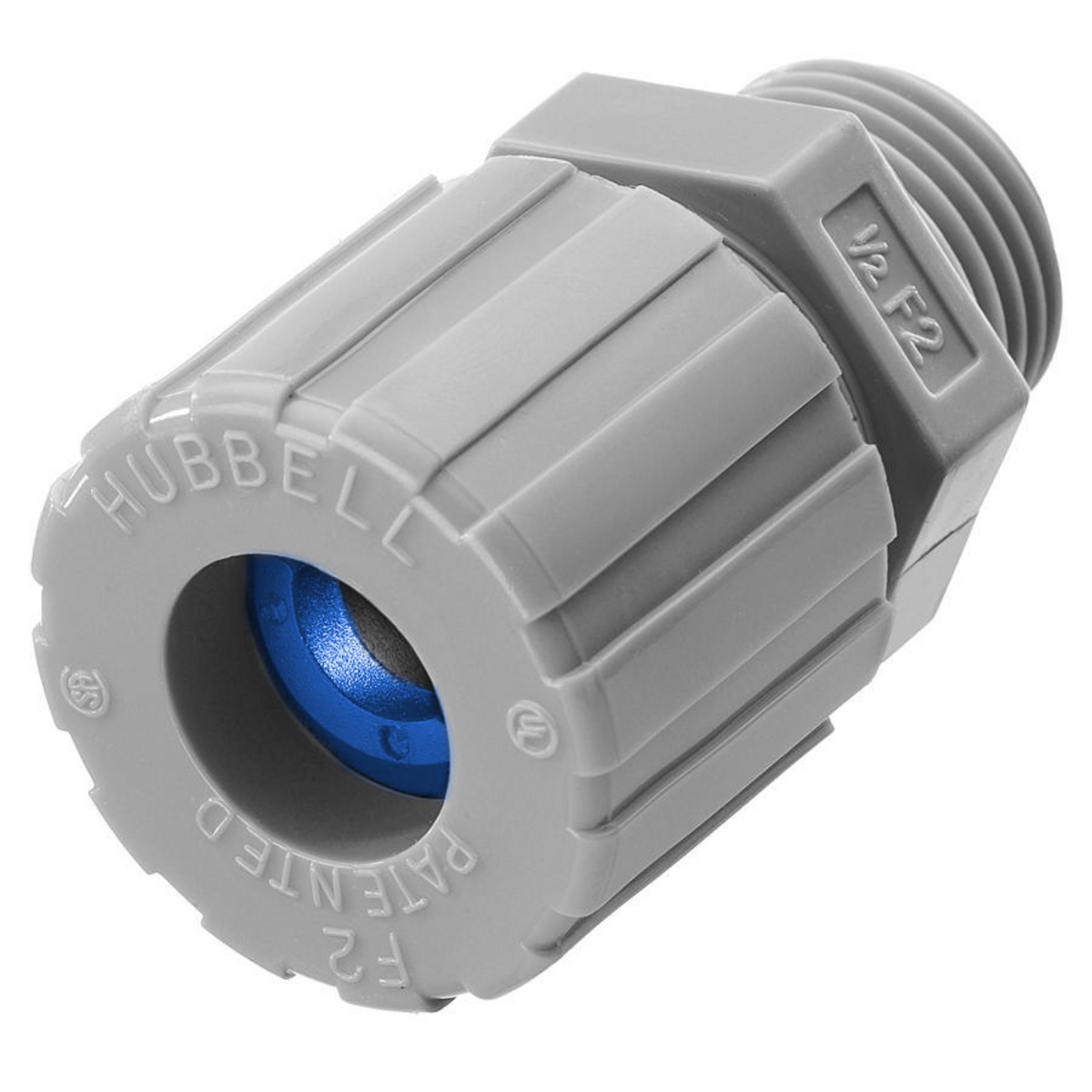

Hubbell SHC1035CR Cord Connector
Part Number # SHC1035CR
SKU # 235735
$11.71 / Each
Typical price:$15.15 / Each
Hubbell SHC1035CR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | SHC1035CR |
| SKU #: | 235735 |
| Cable Openings: | 0.38 to 0.5, 0.38 to 0.5 in |
| Dimensions: | 2.15 x 1.56 x 1.56 in |
| Finish: | Smooth |
| Number of Conductors: | 1 |
| Series: | SHC |
| Temperature Rating (Degrees F): | -30 to 225, -30 to 225 deg F |
| Trade Size: | 3/4 in, 3/4 in NPT |
| Type: | Form 3 Standard Duty, Form 3 Standard Duty Straight |
| Cable type: | Jacketed |
| Color: | Blue/gray, Gray/blue |
| Connection type: | MNPT, Straight Male |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121431 |
| UPC: | 00783585208077 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.71 / Each
Typical price:$15.15 / Each
Quantity:
Hubbell SHC1035CR Cord Connector
Brand: Hubbell
Part Number: SHC1035CR
Wiring Device-Kellems Cord Connector, Form 3 Standard Duty Straight, 3/4 in Trade, 1 Conductor, Cable Openings: 0.38 to 0.5 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Blue/Gray, -30 to 225 deg F, 2.15 x 1.56 x 1.56 in Dimensions
Additional Description: HUBW-SHC1035CR CORDCON, STR ML, .38-.50", 3/4", GY NYL NYL""
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .38"-.50", 3/4", Aluminum
SHC1035CR Application
For wet location when used with a listed nylon washer between box and fitting, hazardous location ApplicationsSHC1035CR Item Features
- Nylon cord connectors resist corrosion
- Tapered interior seats the bushing evenly for a liquidtight seal
- The connector body is a one-piece design with machined threads
- https://youtu.be/6SdOpBP_CJk
SHC1035CR Standards
CSA Certified|RoHS Compliant|UL 514B|Title 46-Part 111|UL94 V-2 Flammability RatingSKU #235735Part Number #SHC1035CRUNSPSC39121431UPC00783585208077
