Part Number # SHC1036CR
SKU # 235691
Image Disclaimers Message
SHC1036CR

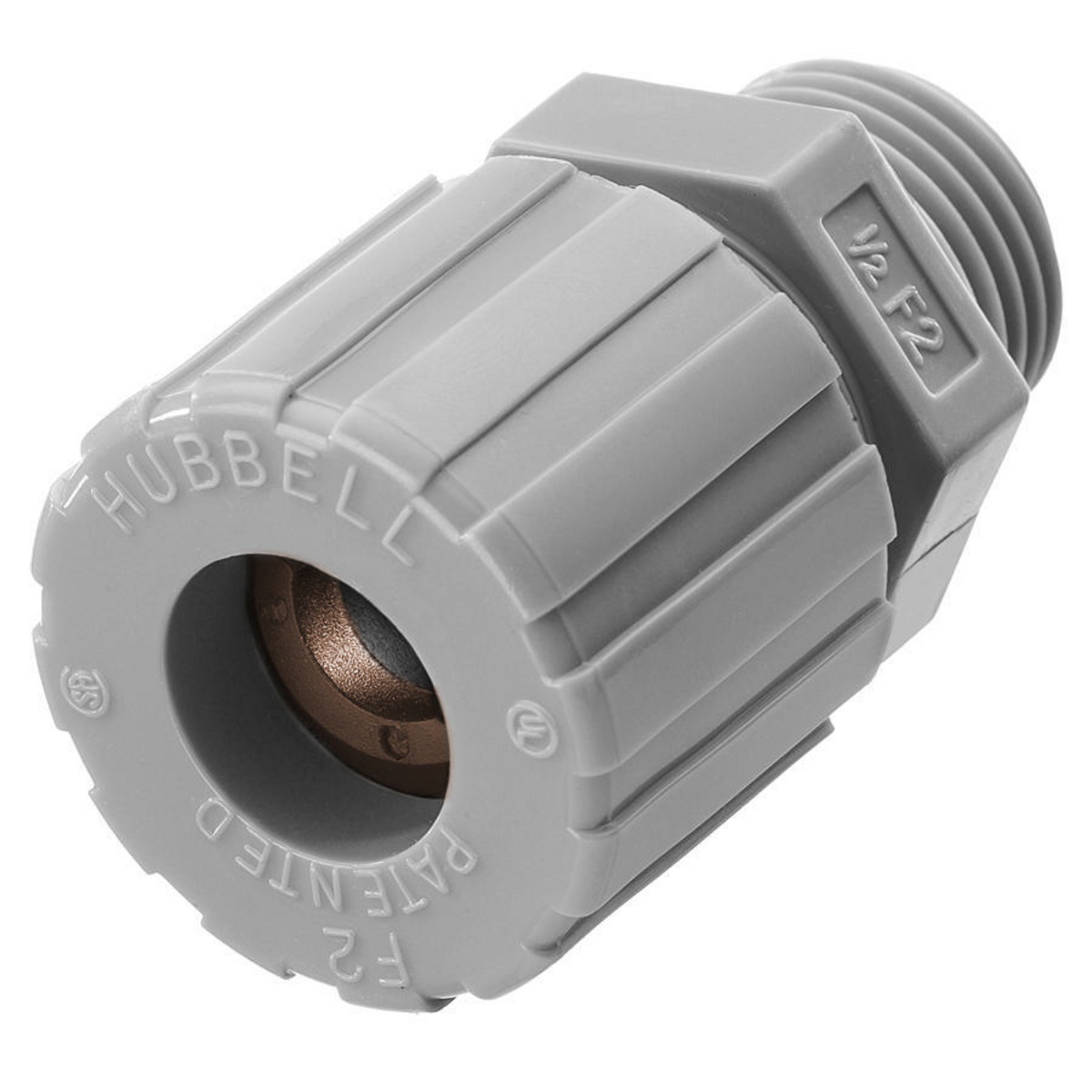

Hubbell SHC1036CR Cord Connector
Part Number # SHC1036CR
SKU # 235691
$11.71 / Each
Typical price:$15.15 / Each
Hubbell SHC1036CR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | SHC1036CR |
| SKU #: | 235691 |
| Cable Openings: | 0.5 to 0.63, 0.5 to 0.63 in |
| Dimensions: | 2.15 x 1.56 x 1.56 in |
| Finish: | Smooth |
| Number of Conductors: | 1 |
| Series: | SHC |
| Temperature Rating (Degrees F): | -30 to 225, -30 to 225 deg F |
| Trade Size: | 3/4 in, 3/4 in NPT |
| Type: | Form 3 Standard Duty, Form 3 Standard Duty Straight |
| Cable type: | Jacketed |
| Color: | Brown/Gray, Gray/Brown |
| Connection type: | MNPT, Straight Male |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121431 |
| UPC: | 00783585208084 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.71 / Each
Typical price:$15.15 / Each
Quantity:
Hubbell SHC1036CR Cord Connector
Brand: Hubbell
Part Number: SHC1036CR
Wiring Device-Kellems Cord Connector, Form 3 Standard Duty Straight, 3/4 in Trade, 1 Conductor, Cable Openings: 0.5 to 0.63 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Brown/Gray, -30 to 225 deg F, 2.15 x 1.56 x 1.56 in Dimensions
Additional Description: HUBW-SHC1036CR CORDCON, STR ML, .50-.63", 3/4", NYL, GY NYL, GY"" NYL
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .50"-.63", 3/4", Nylon
SHC1036CR Application
For wet location when used with a listed nylon washer between box and fitting, hazardous location ApplicationsSHC1036CR Item Features
- Nylon cord connectors resist corrosion
- Tapered interior seats the bushing evenly for a liquidtight seal
- The connector body is a one-piece design with machined threads
- https://youtu.be/6SdOpBP_CJk
SHC1036CR Standards
CSA Certified|RoHS Compliant|UL 514B|United States Coast Guard Approved|Title 46-Part 111SKU #235691Part Number #SHC1036CRUNSPSC39121431UPC00783585208084
