Brand: Hubbell

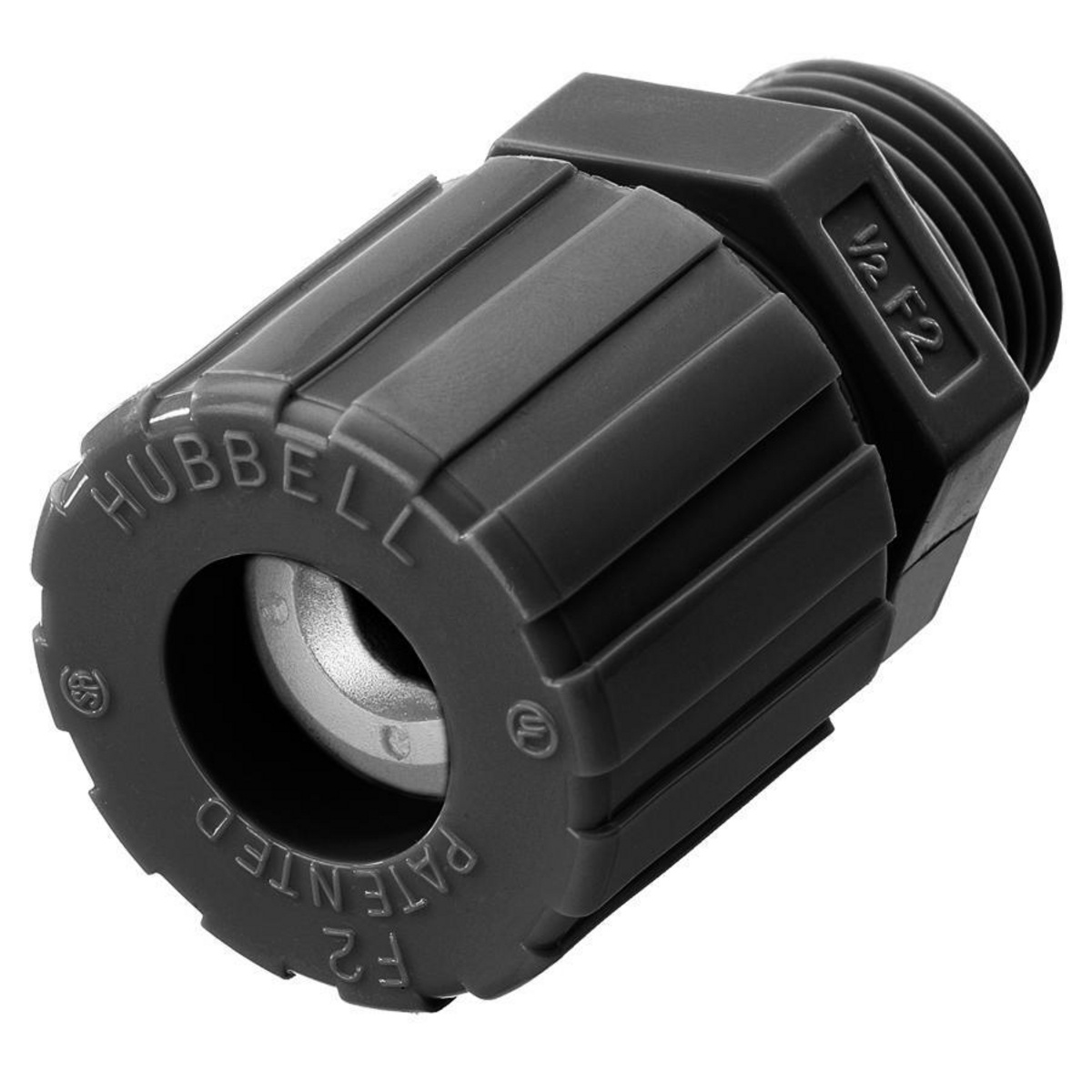

Hubbell SHC2022CR Wiring Device-Kellems Cord Connector
![PDP image](https://do1jvmih5t6vs.cloudfront.net/userfiles/ad/large/wiring_device-kellems_shc2022cr.jpg)
Image Disclaimers Message
Brand: Hubbell
Hubbell SHC2022CR Wiring Device-Kellems Cord Connector
Brand: Hubbell
Hubbell SHC2022CR Wiring Device-Kellems Cord Connector
Part #:SHC2022CR
SKU #: 2411935
$9.57/EA
Key Features
Part #:SHC2022CR
SKU #: 2411935
Brand: Hubbell
Cable Openings: 0.25 to 0.38 in
Dimensions: 1.32 in Dia x 2.03 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
$9.57/EA
- Nylon cord connector resists most common industrial corrosives
- Hubbells nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design
- They are ideal for any application where weight, conductivity or corrosion may be an issue
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
- 1.09 to 1.14 in recommended knockout hole
- 0.53 in L thread
- 0.58 in Dia throat
Specifications
Brand: Hubbell
Cable Openings: 0.25 to 0.38 in
Dimensions: 1.32 in Dia x 2.03 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225 deg F
Trade Size: 1/2 in
Type: Flexible Standard Straight, Form 2 Standard Straight
Cable type: Jacketed
Color: Black
Connection type: MNPT
Material: Nylon
UNSPSC: 39121431
UPC: 00783585451626
Hubbell SHC2022CR Wiring Device-Kellems Cord Connector
Wiring Device-Kellems Cord Connector, Form 2 Standard, 1/2 in, 1 Conductors, Cable Openings: 0.25 to 0.38 in Dia, MNPT Straight, Nylon, Smooth, Black, -30 to 225 deg F, 1.32 in Dia x 2.03 in L
Additional Description: HUBW-SHC2022CR CORDCONN, STR ML, .25-.38, 1/2"", NYL,BK"" NYL,BK
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .25-.38, 1/2"", Nylon""
