Brand: Hubbell

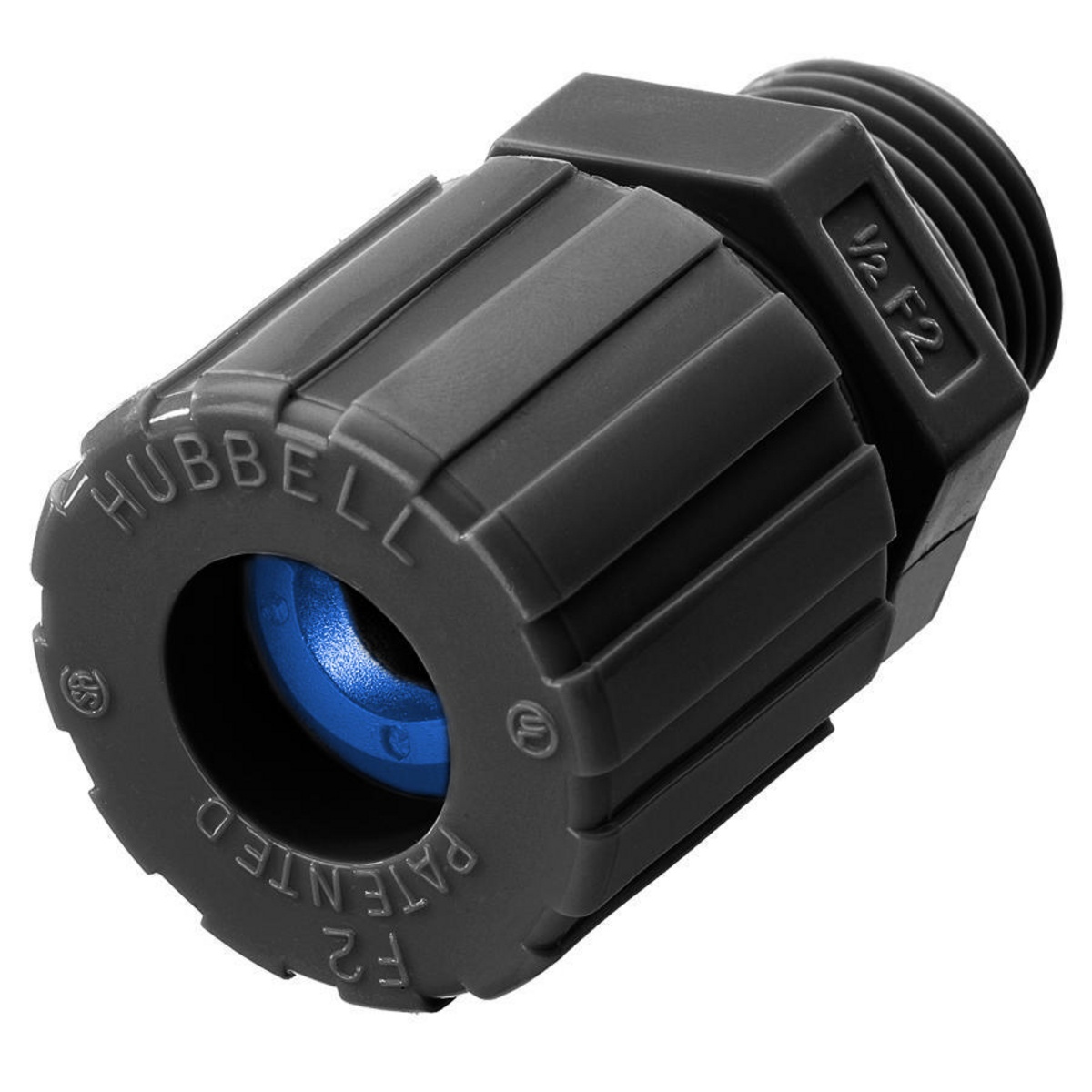

Hubbell SHC2023CR Cord Connector
Image Disclaimers Message
Brand: Hubbell
Hubbell SHC2023CR Cord Connector
Brand: Hubbell
Hubbell SHC2023CR Cord Connector
Part #:SHC2023CR
SKU #: 2197158
$9.43/EA
Key Features
Part #:SHC2023CR
SKU #: 2197158
Brand: Hubbell
Cable Openings: 0.38 to 0.5, 0.38 to 0.5 in
Dimensions: 1.32 in Dia x 2.03 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
$9.43/EA
- Nylon cord connector resists most common industrial corrosives
- 0.53 in L thread
- 0.58 in Dia throat
- Hubbells nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design
- They are ideal for any application where weight, conductivity or corrosion may be an issue
- Suitable for use in wet locations when used with a listed nylon washer between box and fitting
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
- Blue color code
- 1.09 to 1.14 in recommended knockout hole
Specifications
Brand: Hubbell
Cable Openings: 0.38 to 0.5, 0.38 to 0.5 in
Dimensions: 1.32 in Dia x 2.03 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225, -30 to 225 deg F
Trade Size: 1/2 in, 1/2 in NPT
Type: Form 2 Standard Duty, Form 2 Standard Duty Straight
Cable type: Jacketed
Color: Black/Blue
Connection type: MNPT, Straight Male
Country of origin: PR, US
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121431
UPC: 00783585451640
Hubbell SHC2023CR Cord Connector
Wiring Device-Kellems Cord Connector, Form 2 Standard Duty Straight, 1/2 in Trade, 1 Conductor, Cable Openings: 0.38 to 0.5 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Black/Blue, -30 to 225 deg F
Additional Description: HUBW-SHC2023CR CORDCONN, STR ML, .38-.50, 1/2"", NYL,BK"" NYL,BK NYL 1/2NPT
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .38-.50", 1/2", Nylon
Item FeaturesFor wet location when used with a listed nylon washer between box and fitting, hazardous location Applications
Item Features
Item FeaturesCSA Certified|RoHS Compliant|UL 514B|Title 46-Part 111|UL94 V-2 Flammability Rating
