Brand: Hubbell

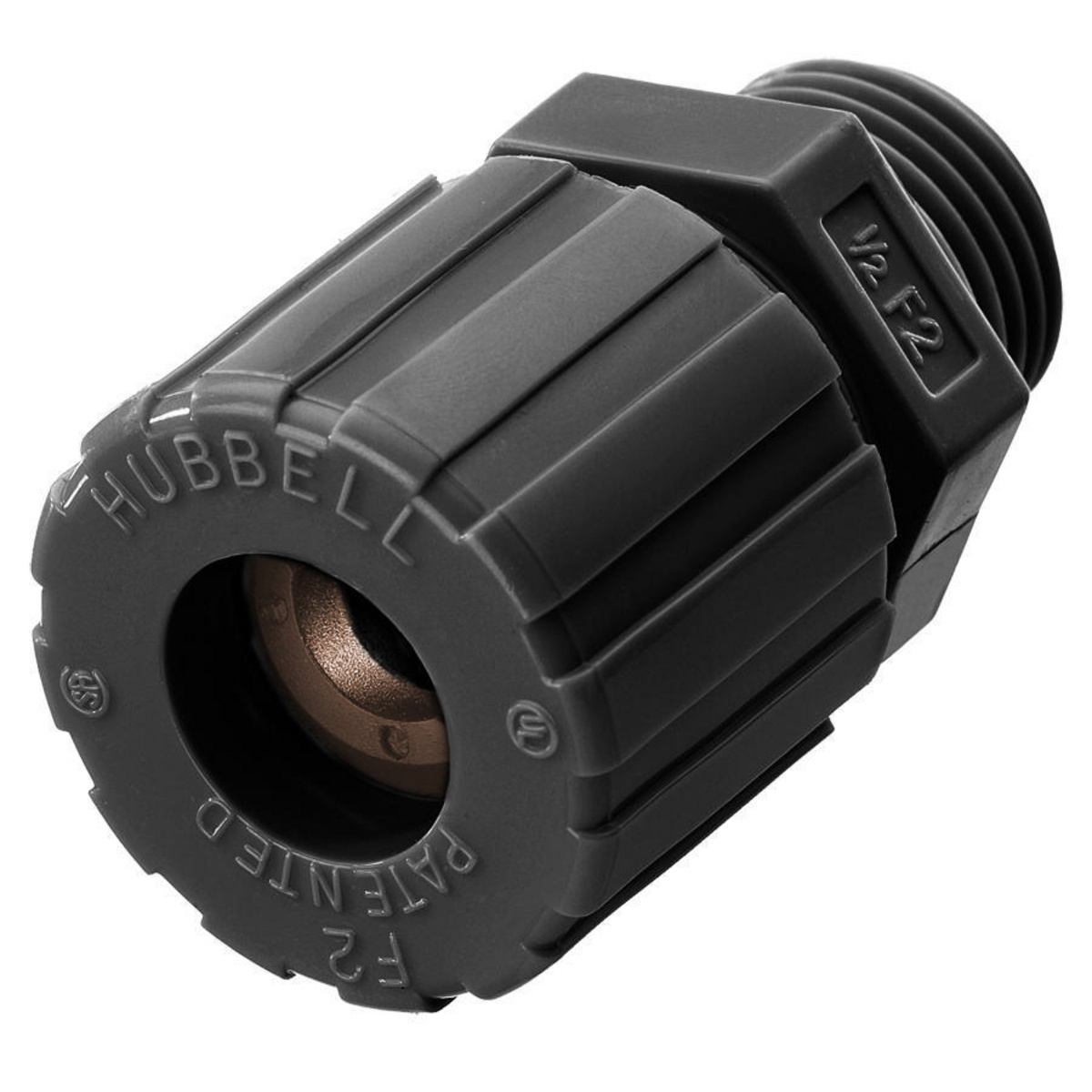

Hubbell SHC2040CR Cord Connector
Image Disclaimers Message
Brand: Hubbell
Hubbell SHC2040CR Cord Connector
Brand: Hubbell
Hubbell SHC2040CR Cord Connector
Part #:SHC2040CR
SKU #: 2324076
$13.07/EA
Key Features
Part #:SHC2040CR
SKU #: 2324076
Brand: Hubbell
Cable Openings: 0.5 to 0.63, 0.5 to 0.63 in
Dimensions: 1.88 in Dia x 2.45 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
$13.07/EA
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
- Brown color code
- 1.36 to 1.41 in recommended knockout hole
- 0.7 in thread length
- F4 form size
- Hubbells nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design
- They are ideal for any application where weight, conductivity or corrosion may be an issue
- NEMA 4/4X/12/13 enclosure
Specifications
Brand: Hubbell
Cable Openings: 0.5 to 0.63, 0.5 to 0.63 in
Dimensions: 1.88 in Dia x 2.45 in L
Finish: Smooth
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225, -30 to 225 deg F
Trade Size: 1, 1 in
Type: Flexible Standard Straight, Form 4 Standard Straight
Cable type: Jacketed
Color: Black
Connection type: MNPT
Country of origin: PR
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121431
UPC: 00783585451657
Hubbell SHC2040CR Cord Connector
Wiring Device-Kellems Flexible Cord Connector, Form 4 Standard Straight, 1 in Trade, 1 Conductor, Cable Openings: 0.5 to 0.63 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Black, -30 to 225 deg F, 1.88 in Dia x 2.45 in L Dimensions
Additional Description: HUBW-SHC2040CR CORDCON, STR ML, .50-.63, 1"", NYL, BK"" NYL, BK BK
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .50-.63", 1", Nylon
Item FeaturesFor wet location when used with a listed nylon washer between box and fitting, hazardous location Applications
Item Features
Item FeaturesCSA Certified|RoHS Compliant|Title 46-Part 111|UL 514B|UL 94 V-2 Flammability Rating
