Brand: Hubbell

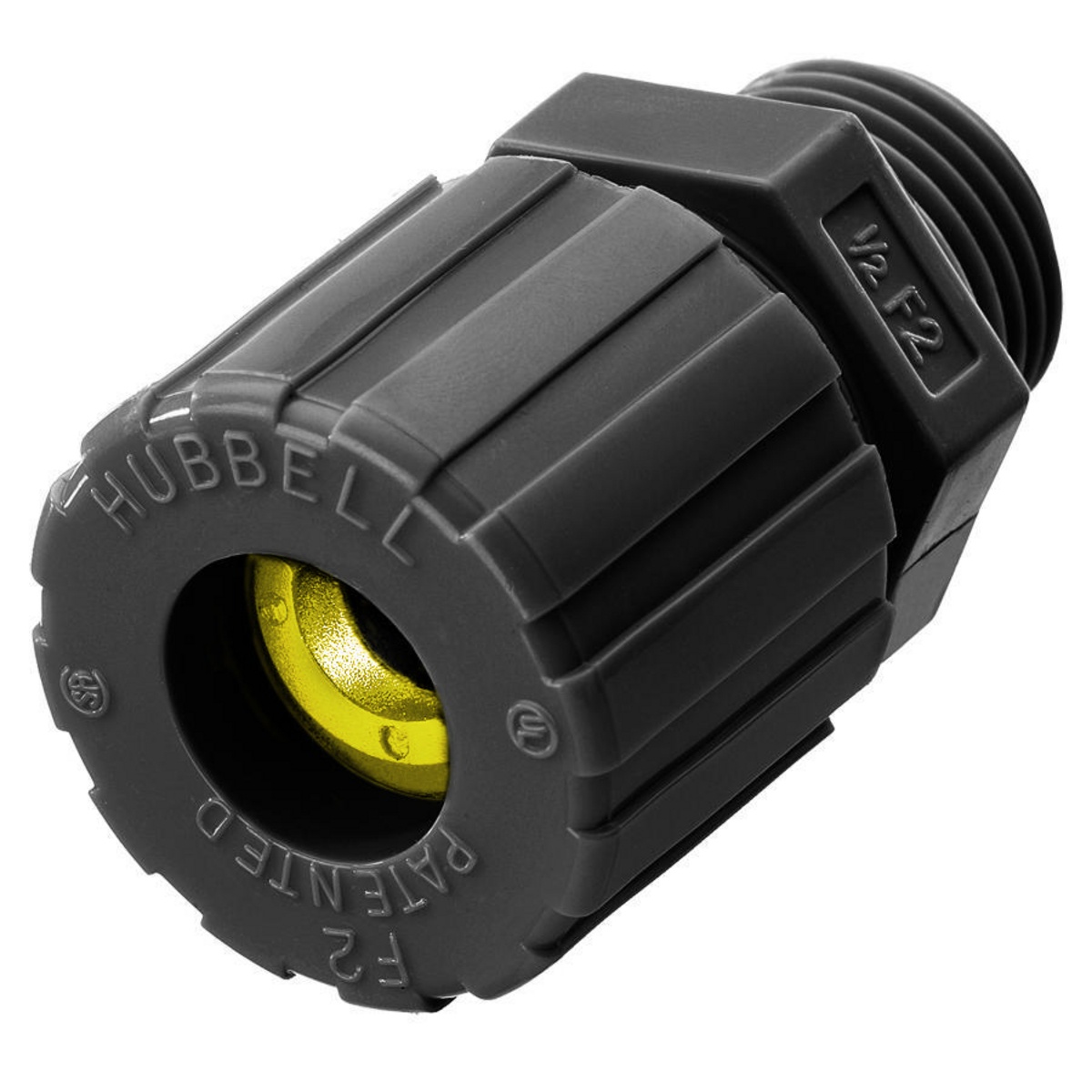

Hubbell SHC2041CR Cord Connector
Image Disclaimers Message
Brand: Hubbell
Hubbell SHC2041CR Cord Connector
Brand: Hubbell
Hubbell SHC2041CR Cord Connector
Part #:SHC2041CR
SKU #: 2343308
$13.07/EA
Key Features
Part #:SHC2041CR
SKU #: 2343308
Brand: Hubbell
Cable Openings: 0.63 to 0.75, 0.63 to 0.75 in
Dimensions: 1.88 in L x 1.88 in W x 2.45 in H
Finish: Smooth
Number of Conductors: 1
Series: SHC
$13.07/EA
- Nylon cord connector resists most common industrial corrosives
- 0.7 in thread length
- 1.01 in Dia throat
- F4 form size
- Hubbells nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design
- They are ideal for any application where weight, conductivity or corrosion may be an issue
- NEMA 4/4X/12/13 enclosure
- Suitable for use in wet locations when used with a listed nylon washer between box and fitting
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification
- Yellow color code
- 1.09 to 1.14 in recommended knockout hole
Specifications
Brand: Hubbell
Cable Openings: 0.63 to 0.75, 0.63 to 0.75 in
Dimensions: 1.88 in L x 1.88 in W x 2.45 in H
Finish: Smooth
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225, -30 to 225 deg F
Trade Size: 1 in, 1 in NPT
Type: Form 4 Standard Duty, Form 4 Standard Duty Straight
Cable type: Jacketed
Color: Black/Yellow
Connection type: MNPT, Straight Male
Material: Nylon
UNSPSC: 39121431
UPC: 00783585451763
Hubbell SHC2041CR Cord Connector
Wiring Device-Kellems Cord Connector, Form 4 Standard Duty Straight, 1 in Trade, 1 Conductor, Cable Openings: 0.63 to 0.75 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Black/Yellow, -30 to 225 deg F, 1.88 in L x 1.88 in W x 2.45 in H Dimensions
Additional Description: HUBW-SHC2041CR CORDCON, STR ML, .63-.75, 1"", NYL, BK"" NYL, BK BK
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .63-.75, 1"", Nylon""
