Brand: Hubbell

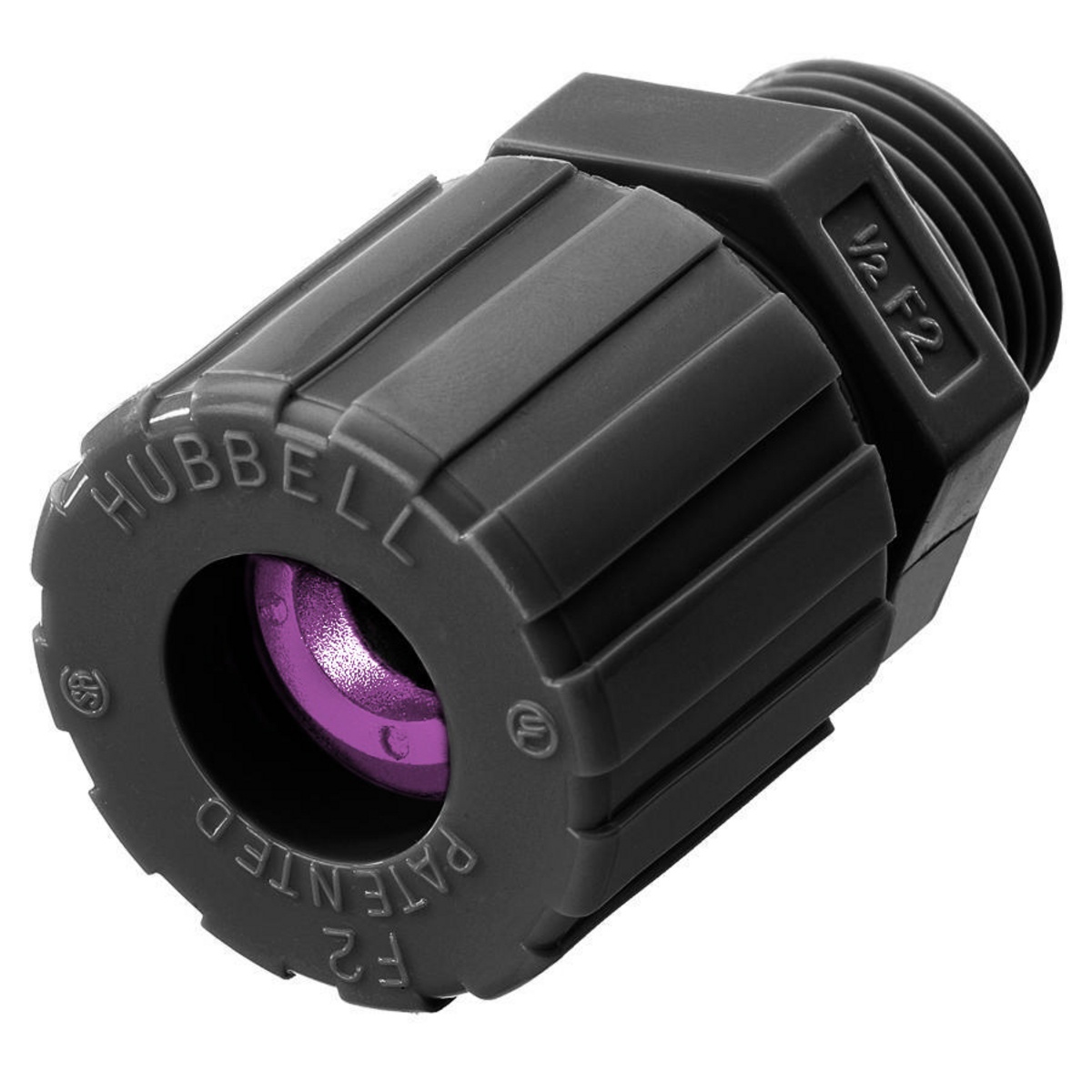

Hubbell SHC2042CR Cord Connector
Image Disclaimers Message
Brand: Hubbell
Hubbell SHC2042CR Cord Connector
Brand: Hubbell
Hubbell SHC2042CR Cord Connector
Part #:SHC2042CR
SKU #: 2296127
$13.21/EA
Key Features
Part #:SHC2042CR
SKU #: 2296127
Brand: Hubbell
Cable Openings: 0.75 to 0.88 in, 0.75 to 0.88 in Dia
Dimensions: 1.88 in L x 1.88 in W x 2.45 in H
Finish: Smooth
Number of Conductors: 1
Series: SHC
$13.21/EA
- 1.01 in Dia throat
- Hubbells nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design
- They are ideal for any application where weight, conductivity or corrosion may be an issue
- Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
- Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
- Patented GOTCHA ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
- Orchid color code
- 1.09 to 1.14 in recommended knockout hole
- https://youtu.be/6SdOpBP_CJk
Specifications
Brand: Hubbell
Cable Openings: 0.75 to 0.88 in, 0.75 to 0.88 in Dia
Dimensions: 1.88 in L x 1.88 in W x 2.45 in H
Finish: Smooth
Number of Conductors: 1
Series: SHC
Temperature Rating (Degrees F): -30 to 225, -30 to 225 deg F
Trade Size: 1, 1 in
Type: Form 4 Standard, Form 4 Standard Straight
Cable type: Jacketed
Color: Black
Connection type: MNPT, MNPT Straight
Country of origin: PR, US
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121431
UPC: 00783585451787
Hubbell SHC2042CR Cord Connector
Wiring Device-Kellems Cord Connector, Form 4 Standard Straight, 1 in Trade, 1 Conductor, Cable Openings: 0.75 to 0.88 in, MNPT Connection, Nylon, Smooth, Black, -30 to 225 deg F, 1.88 in L x 1.88 in W x 2.45 in H Dimensions
Additional Description: HUBW-SHC2042CR CORDCON, STR ML, .75-.88, 1"", NYL, BK"" NYL, BK BK
Catalog Description: Kellems Wire Management, Cord Connectors, Straight Male, .75-.88", 1", Nylon
Item FeaturesFor wet location when used with a listed nylon washer between box and fitting Applications
Item Features
Item FeaturesCSA Certified|NEC Class I, Division 2, Class II, Division 1/2, Class Ill, Division 1/2 Hazardous Locations|RoHS Compliant|UL 514B|UL 94 V-2 Flammability Rating|Title 46-Part 111
