Brand: Hubbell

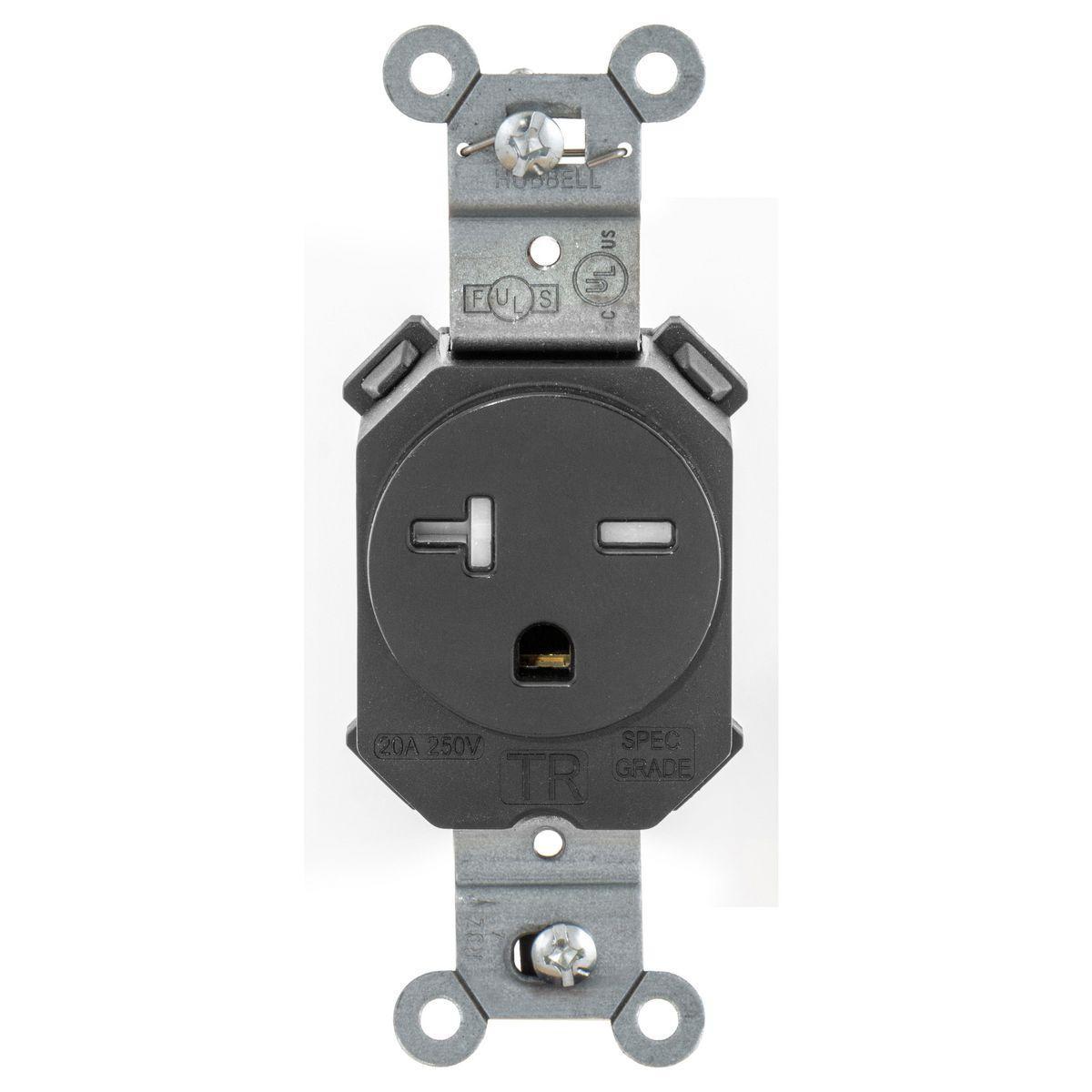

Hubbell SNAP5461BKTR Snapconnect Straight Blade Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell SNAP5461BKTR Snapconnect Straight Blade Receptacle
Brand: Hubbell
Hubbell SNAP5461BKTR Snapconnect Straight Blade Receptacle
Part #:SNAP5461BKTR
SKU #: 2424289
$31.71/EA
Key Features
Part #:SNAP5461BKTR
SKU #: 2424289
Brand: Hubbell
Amperage Rating: 20 A
NEMA Rating: NEMA 6-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75 deg C
$31.71/EA
- Audible snap indicates solid connection
- Fully insulated design
- Best in class tamper-resistant mechanism for easy plug insertion
- Durable nylon construction for heavy use applications
- Modular wiring eliminates screw terminals and increases installation efficiency
- No exposed metal for a safer installation
- Clear polycarbonate connector cover to inspect contacts
Specifications
Brand: Hubbell
Amperage Rating: 20 A
NEMA Rating: NEMA 6-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75 deg C
Type: Extra Heavy Duty Single Standard Tamper-Resistant
Voltage Rating: 250 V
Color: Black
Country of origin: CN
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585531045
Hubbell SNAP5461BKTR Snapconnect Straight Blade Receptacle
Wiring Device-Kellems SNAPConnect® Straight Blade Receptacle, Extra Heavy Duty Single Standard Tamper-Resistant, 250 V, 20 A, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Nylon, Black
Additional Description: HUBW-SNAP5461BKTR SNAPCONNECT SINGLE TR 20A/250V BK
Catalog Description: Straight Blade Devices, Receptacles, Tamper Resistant, Single, SNAPConnect, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Black.
Item FeaturesHotels/Motels, Schools, Child Care Facilities, Medical/Dental Offices and Dormitories Applications
Item Features
Item FeaturesUL 498|UL File No. E2186|Federal Specification W-C-596|CSA C22.2 No. 42 File No. 285|NEMA WD-6
