Part Number # TA57
SKU # 2295592
Image provided may only be a representation of
final product and may include optional equipment
Hubbell TA57 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | TA57 |
| SKU #: | 2295592 |
| Capacity: | 27, 27 cu-in |
| Dimensions: | 8-7/16 in L x 3-11/16 in W x 3-3/4 in H |
| Enclosure: | NEMA 3 |
| Finish: | Tri-Coated |
| Form: | 7 |
| Hub Size: | 1-1/2, 1-1/2 in |
| Type: | Type TA |
| Connection type: | Thread, Threaded |
| Country of origin: | MX |
| Material: | Iron |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131708 |
| UPC: | 00783936011745 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$169.27 / Each
Quantity:

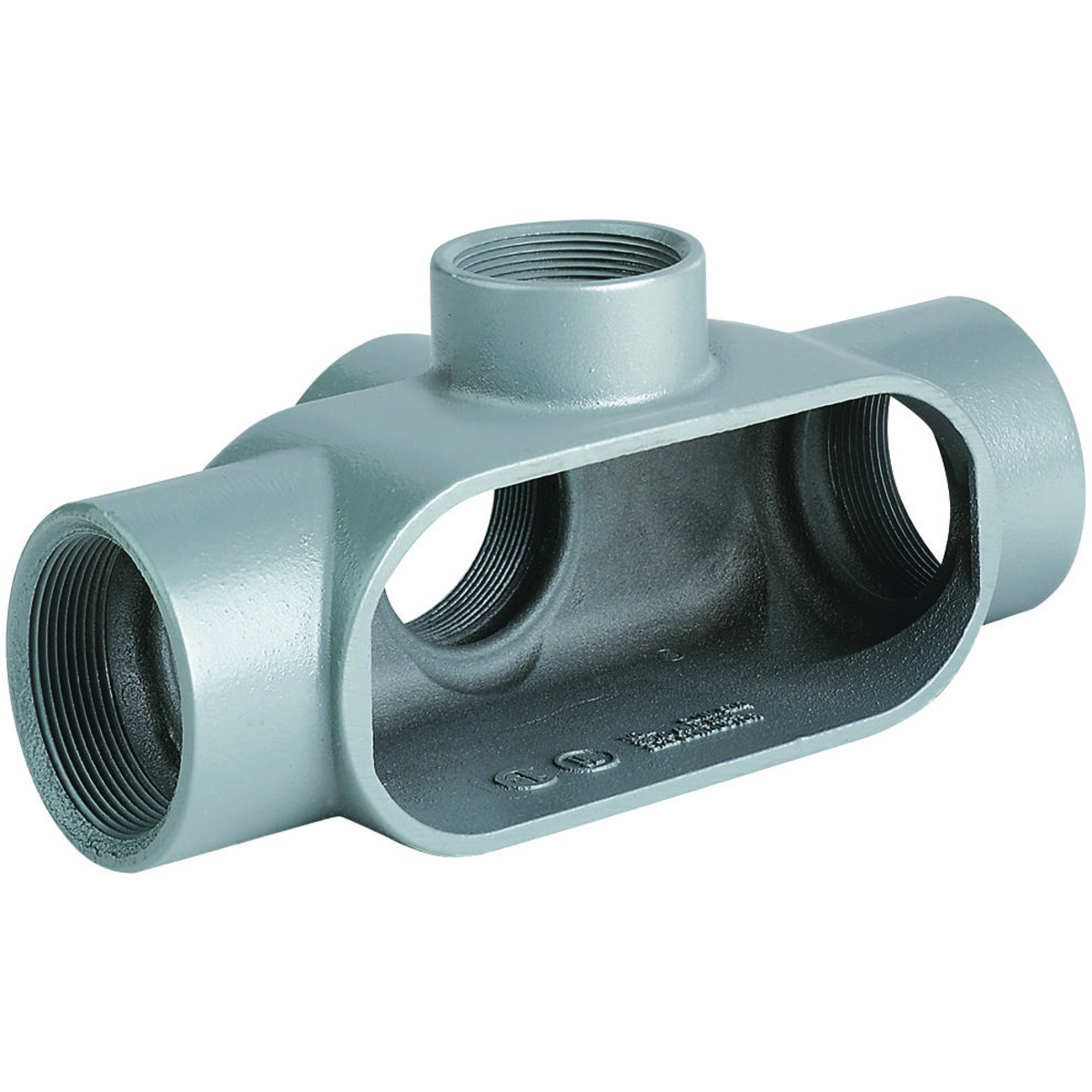

Hubbell TA57 Duraloy 7 Conduit Body
Brand: Hubbell
Part Number: TA57
Killark Duraloy 7 Conduit Body, Type TA, 1-1/2 in Hub, 4 Hubs, 27 cu-in Capacity, 7 Form, NEMA 3 Enclosure, Thread Connection, Iron, Tri-Coated, Gray, 8-7/16 in L x 3-11/16 in W x 3-3/4 in H Dimensions
Additional Description: KILL-TA57 DURALOY7 1-1/2"" TA COND BDY FE
Catalog Description: 1-1/2" TA Hub, Iron Form 7 Conduit Body
TA57 Application
To provide access to conductors for pulling, splicing and maintenance, threaded for rigid and IMC conduitTA57 Item Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
- Suitable for wet locations when used with gaskets
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- Innovative spring clip design for installation ease and repeat usage
- Flat-back design for greater wiring capacity and mounting stability
TA57 Standards
UL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b) Class I Div 2, 502.10, 503.10SKU #2295592Part Number #TA57UNSPSC39131708UPC00783936011745
