UGR5-20231QW

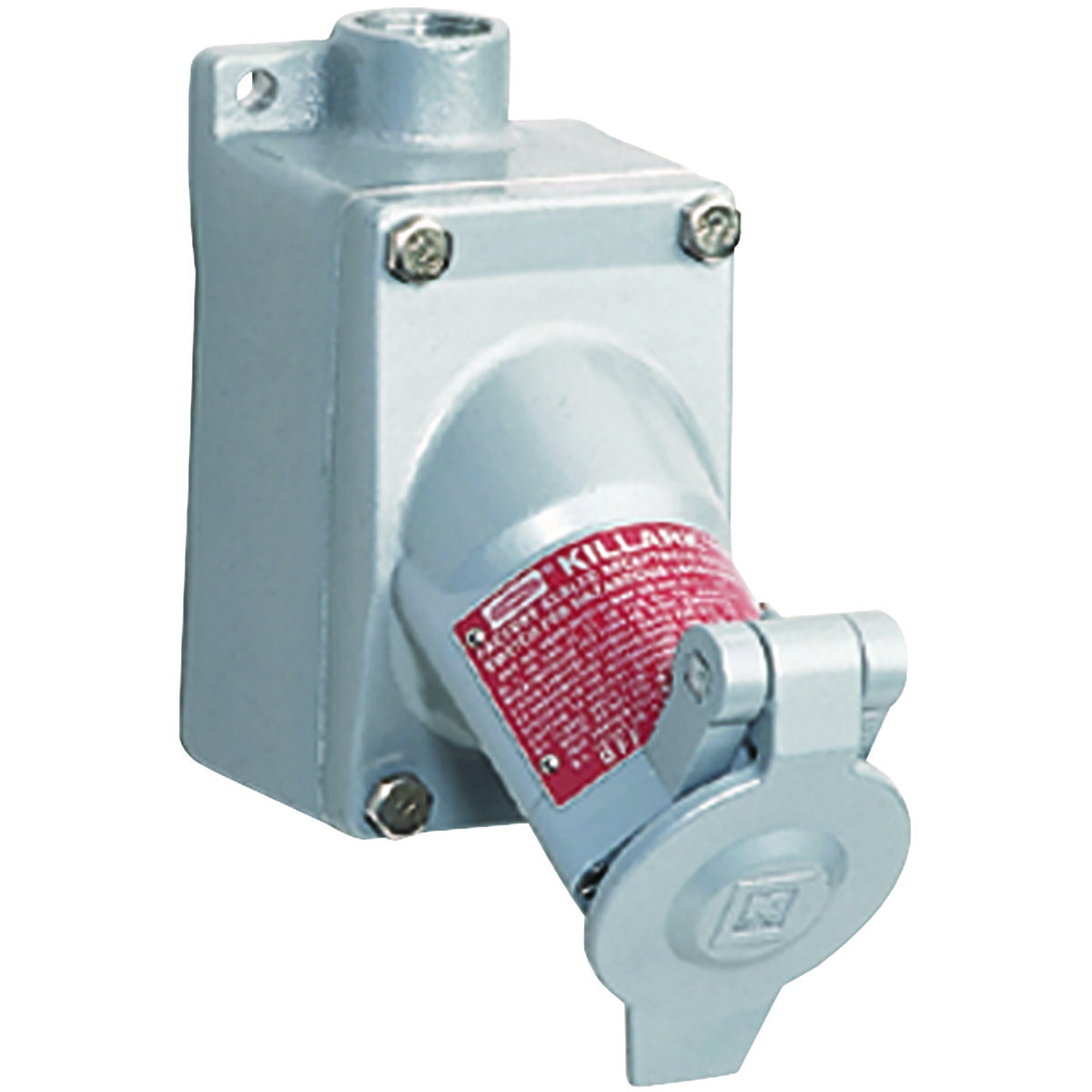

Hubbell UGR5-20231QW Acceptor Receptacle
Part Number # UGR5-20231QW
SKU # 2442528
$1175.55 / Each
Hubbell UGR5-20231QW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | UGR5-20231QW |
| SKU #: | 2442528 |
| Amperage Rating: | 20 A |
| Dimensions: | 3.13 in H x 3.13 in W x 7 in L |
| NEMA Rating: | NEMA 3/7B/7C/7D/9F/9G |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | UGR |
| Type: | 1-Gang Feed Through |
| Country of origin: | US |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | MISC |
| UPC: | 00783936124476 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1175.55 / Each
Quantity:
- Killark, UGR5-20231QW, Acceptor Receptacle, 1-Gang Feed Through, Series: UGR, 125 V, 20 A, 2 Pole, 3 Wires, NEMA 3/7B/7C/7D/9F/9G NEMA Rating, Copper Free Aluminum, 3.13 in H x 3.13 in W x 7 in L Dimensions
UGR5-20231QW Application
For use with type S/SO/ST/STO heavy duty cordUGR5-20231QW Item Features
- Factory sealed chamber in UGR receptacle contains switchs arcing components
- Spring loaded receptacle cover closes when plug is removed
- Copper-free aluminum (less than 4/10 of 1 Percent) alloy resists corrosion
- Electrostatically applied and baked powder epoxy/polyester finish
- ACCEPTOR plugs conform to NEMA configurations, while its "turn to engage" feature locks in plug and can be used to prevent accidental disengagement of critical equipment
UGR5-20231QW Standards
RoHS Compliant|Buy American Compliant|NEMA 3/7(B, C, D)/9(F, G)SKU #2442528Part Number #UGR5-20231QWUNSPSCMISCUPC00783936124476
