Part Number # USB20A5BK
SKU # 2328592
Image Disclaimers Message
USB20A5BK

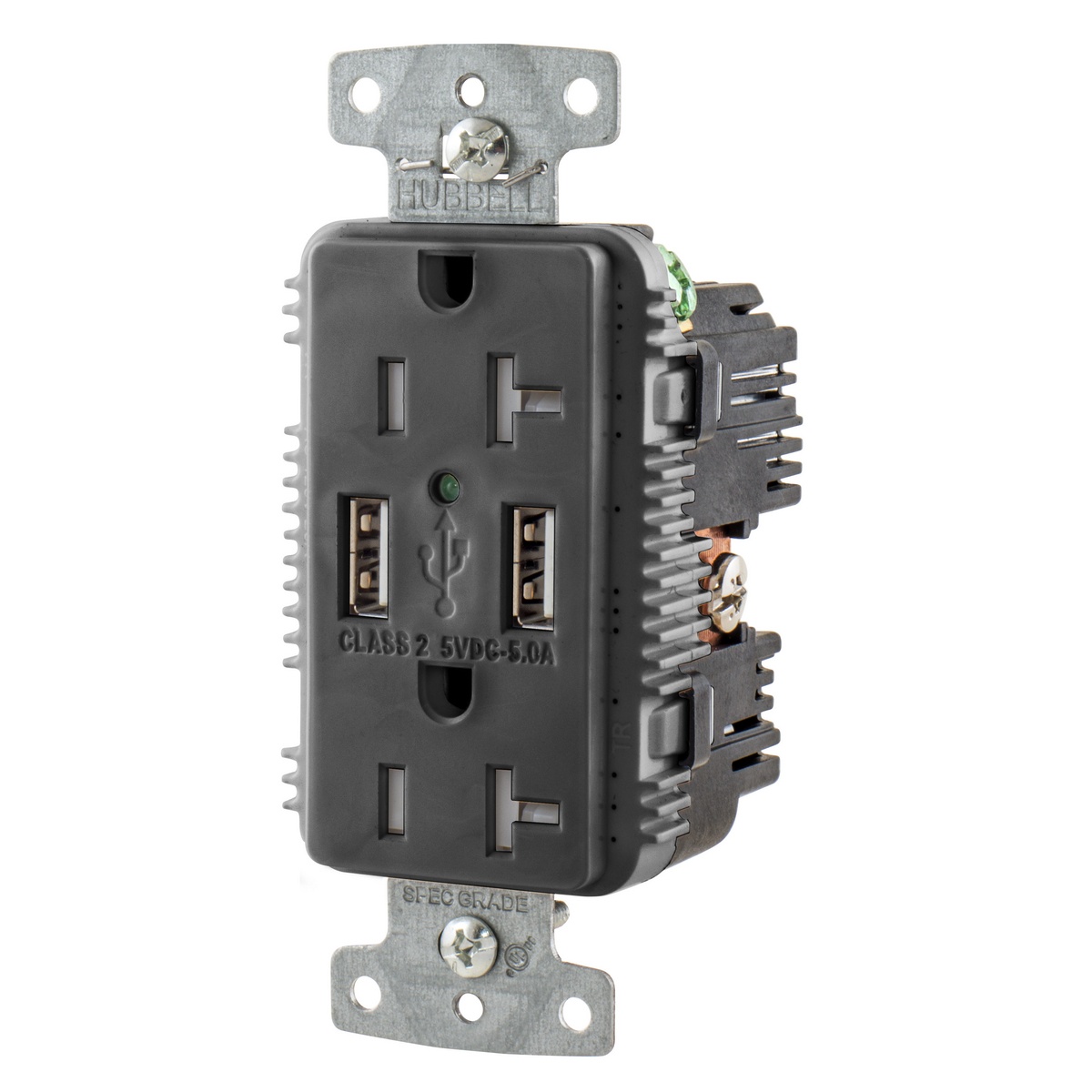

Hubbell USB20A5BK USB Charger Receptacle
Part Number # USB20A5BK
SKU # 2328592
$47.57 / Each
Typical price:$72.35 / Each
Hubbell USB20A5BK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | USB20A5BK |
| SKU #: | 2328592 |
| Connection: | Screw Terminal, Threaded |
| Electrical Ratings: | 125 VAC, 20 A, 2500 W, 20 A, 125 VAC, 2500 W |
| Environmental Conditions: | -40 to 75, -40 to 75 deg C Operating, NEMA 5-20R Enclosure |
| Mounting: | Threaded |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Phase: | 1, 1 ph |
| Size: | 1.75 in W x 1.82 in D x 3.28 in H, 3.28 in H x 1.75 in W x 1.82 in D |
| Type: | Duplex Grounding Tamper-Resistant Standard |
| USB Quantity: | 2 |
| Wire Size: | 14 to 10, 14 to 10 AWG |
| Color: | Black |
| Country of origin: | CN |
| Material: | Composite, Composite/RTP |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00883778306990 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.57 / Each
Typical price:$72.35 / Each
Quantity:
- Hubbell Wiring Device-Kellems tradeSELECT USB Charger Receptacle, Duplex Grounding Tamper-Resistant Standard, 125 VAC, 20 A, 2500 W Electrical Rating, 1 ph, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Class A USB, 2 USB Quantity, 5 A, 5 VDC USB, 1.75 in W x 1.82 in D x 3.28 in H Size, Screw Terminal Connection, Commercial Grade, Composite, Black, Environmental Conditions: -40 to 75 deg C Operating, NEMA 5-20R Enclosure
USB20A5BK Application
Dry Locations, Indoor, USB Charging, Power, Commercial, Industrial, Home, Phones, Tablets and Other Electronic Device ApplicationsUSB20A5BK Item Features
- High Power 5 A 5 V USB Output
- USB Ports Rated 10,000 Cycles
USB20A5BK Standards
cULus Listed|UL 498|UL 1310|CSA Certified|UL94 V-2 Flammability RatingSKU #2328592Part Number #USB20A5BKUNSPSC39121406UPC00883778306990
