Brand: Hubbell

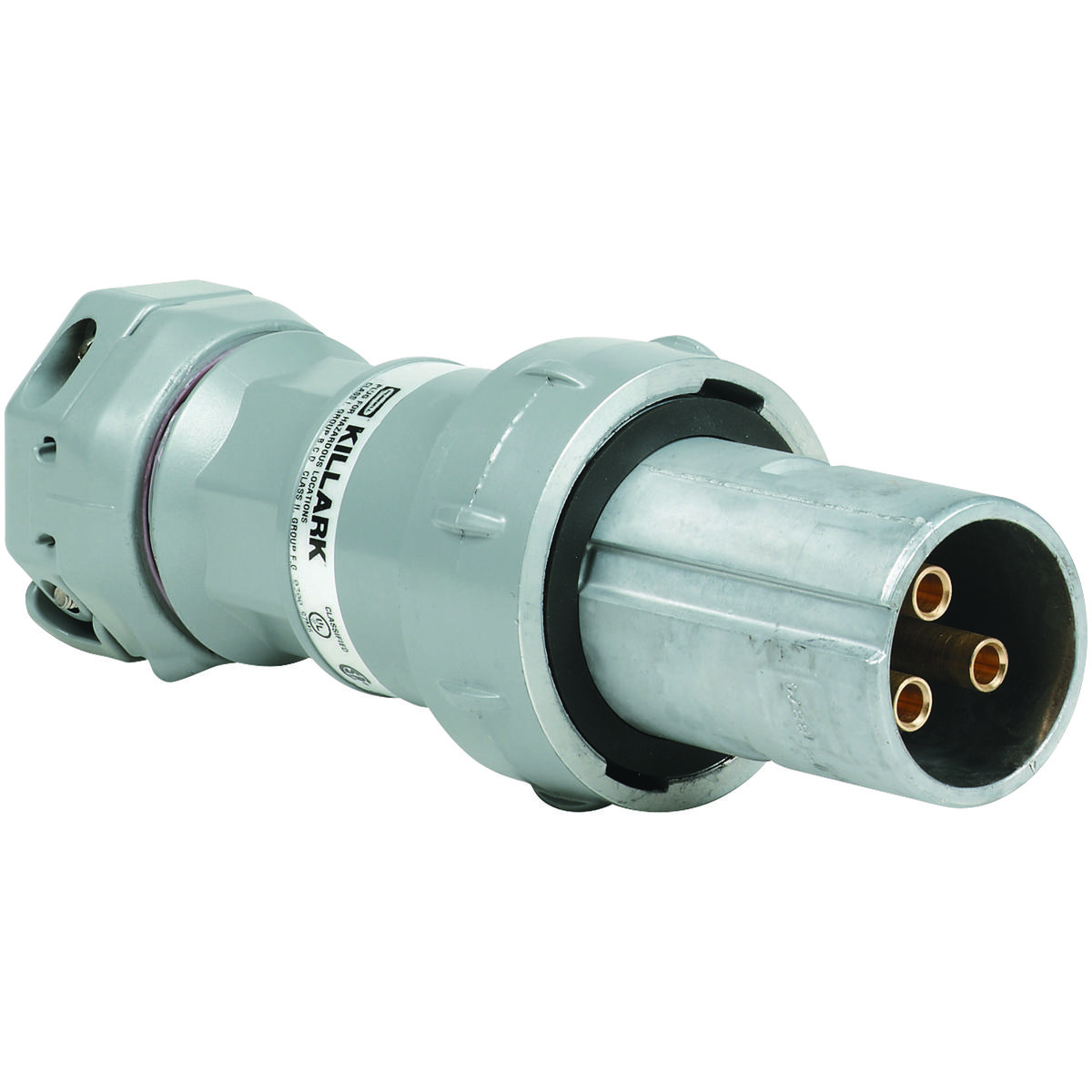

Hubbell VP10487 VERSAMATE Pin and Sleeve Plug
Image Disclaimers Message
Brand: Hubbell
Hubbell VP10487 VERSAMATE Pin and Sleeve Plug
Brand: Hubbell
Hubbell VP10487 VERSAMATE Pin and Sleeve Plug
Part #:VP10487
SKU #: 293829
$1240.55/EA
Key Features
Part #:VP10487
SKU #: 293829
Brand: Hubbell
Amperage Rating: 100, 100 A
Dimensions: 10-7/8 in L x 4-1/4 in W x 4-1/4 in H
Frequency Rating: 50 to 400, 50 to 400 Hz
NEMA Rating: NEMA 3/4/4X/7BCD/9FG
Number of Poles: 4
$1240.55/EA
- Copper-free aluminum construction with electrostatically applied epoxy/polyester finish
- Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously
- Increased safety type box terminals with gripper ribs securely clamp around conductors
- Includes suitability for type P marine cable
- Contacts are brass with a patented beryllium copper spring tensioner
- External screws are 316 stainless steel
- Ground style II
- Clamps provide a firm fit for one plug over a wide range of cable diameters
- 0.88 to 1.68 in grommet range
- Octagonal style (patented) for a firm and sure grip when connecting or disconnecting is featured on both plug and cable connector bodies
- Insulators have high mechanical and dielectric strength and low arc tracking
Specifications
Brand: Hubbell
Amperage Rating: 100, 100 A
Dimensions: 10-7/8 in L x 4-1/4 in W x 4-1/4 in H
Frequency Rating: 50 to 400, 50 to 400 Hz
NEMA Rating: NEMA 3/4/4X/7BCD/9FG
Number of Poles: 4
Number of Wires: 3
Series: VP Series
Terminal Type: Screw
Type: 3-Phase Explosionproof Heavy Duty Metallic
Voltage Rating: 600 VAC/250 VDC
Color: Gray
Country of origin: US
Material: Copper Free Aluminum
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783936834764
Hubbell VP10487 VERSAMATE Pin and Sleeve Plug
Killark VERSAMATE Pin and Sleeve Plug, 3-Phase Explosionproof Heavy Duty Metallic, Series: VP Series, 600 VAC/250 VDC, 100 A, 50 to 400 Hz, 4 Pole, 3 Wires, NEMA 3/4/4X/7BCD/9FG, Copper Free Aluminum, Gray, 10-7/8 in L x 4-1/4 in W x 4-1/4 in H
Additional Description: KILL-VP10487 100A 3W4P PLUG ASSY.
Catalog Description: 100A 3 Pole 4 Wire Plug Assembly
Item FeaturesPumps, Generators, Welders, Vacuums, Blowers, Pulp and Paper Mills, Breweries, Electrical Power Plants, Refineries, Petrochemical Plants, Chemical Plants, Wastewater Treatment, Grain Facilities, Marine, Docks, Ports, Textile Manufacturing, Construction Sites, Food Processing Facilities, Indoor, Outdoor and Industrial Applications
Item Features
Item FeaturesUL File No. E10757|CSA File No. LR111846, Class I, Division 1 and 2, Group B, C, D|NEMA 7 B, C, D, Class l, Zone 1 and 2, IIB+H2, IIA, Class II, Division 1 and 2, Group F and G|NEMA 9 F/G, Class III
