Brand: Hubbell
VP6485

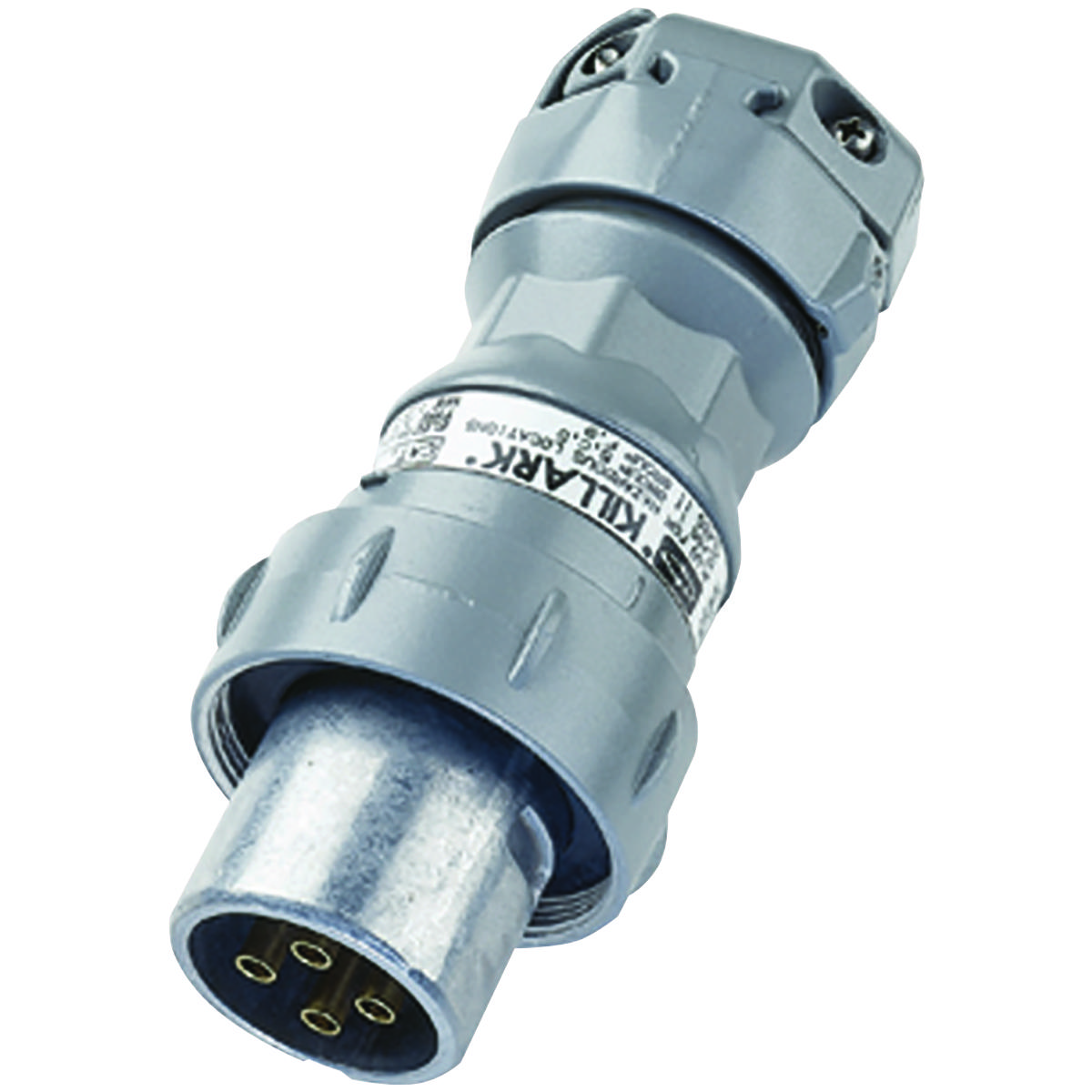

Hubbell VP6485 VERSAMATE Pin and Sleeve Plug
Part Number # VP6485
SKU # 2284775
$997.41 / Each
Hubbell VP6485 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | VP6485 |
| SKU #: | 2284775 |
| Amperage Rating: | 60 A |
| Dimensions: | 9.3 in L x 3.6875 in W x 3.6875 in H |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| NEMA Rating: | NEMA 3/4/4X/7BCD/9FG |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | VP Series |
| Terminal Type: | Screw |
| Type: | 3-Phase Explosionproof Heavy Duty Metallic |
| Color: | Gray |
| Country of origin: | US |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783936834481 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$997.41 / Each
Quantity:
- Killark, VP6485, Pin and Sleeve Plug, 3-Phase Explosionproof Heavy Duty Metallic, Series: VP Series, 600 V AC/250 V DC, 60 A, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/4/4X/7BCD/9FG NEMA Rating, Industrial Grade, Screw Terminal, Copper Free Aluminum, Gray, 9.3 in L x 3.6875 in W x 3.6875 in H Dimensions
VP6485 Application
Pumps, Generators, Welders, Vacuums, Blowers, Pulp and Paper Mills, Breweries, Electrical Power Plants, Refineries, Petrochemical Plants, Chemical Plants, Wastewater Treatment, Grain Facilities, Marine, Docks, Ports, Textile Manufacturing, Construction Sites, Food Processing Facilities, Indoor, Outdoor and Industrial ApplicationsVP6485 Item Features
- Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting
- Insulators have high mechanical and dielectric strength
- Increased Safety type box terminals with gripper ribs securely clamp around conductors
- Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened
VP6485 Standards
UL File No. E10757|CSA File No. LR111846 Class I Div 1 2 Group B C D|NEMA 7 B/C/D|Class l Zone 1 2/IIB+H2/IIA|Class II Div 1 2 Group F G/NEMA 9 F/G|Class IIISKU #2284775Part Number #VP6485UNSPSC39121402UPC00783936834481
