Part Number # VR3033C1
SKU # 2288694
VR3033C1

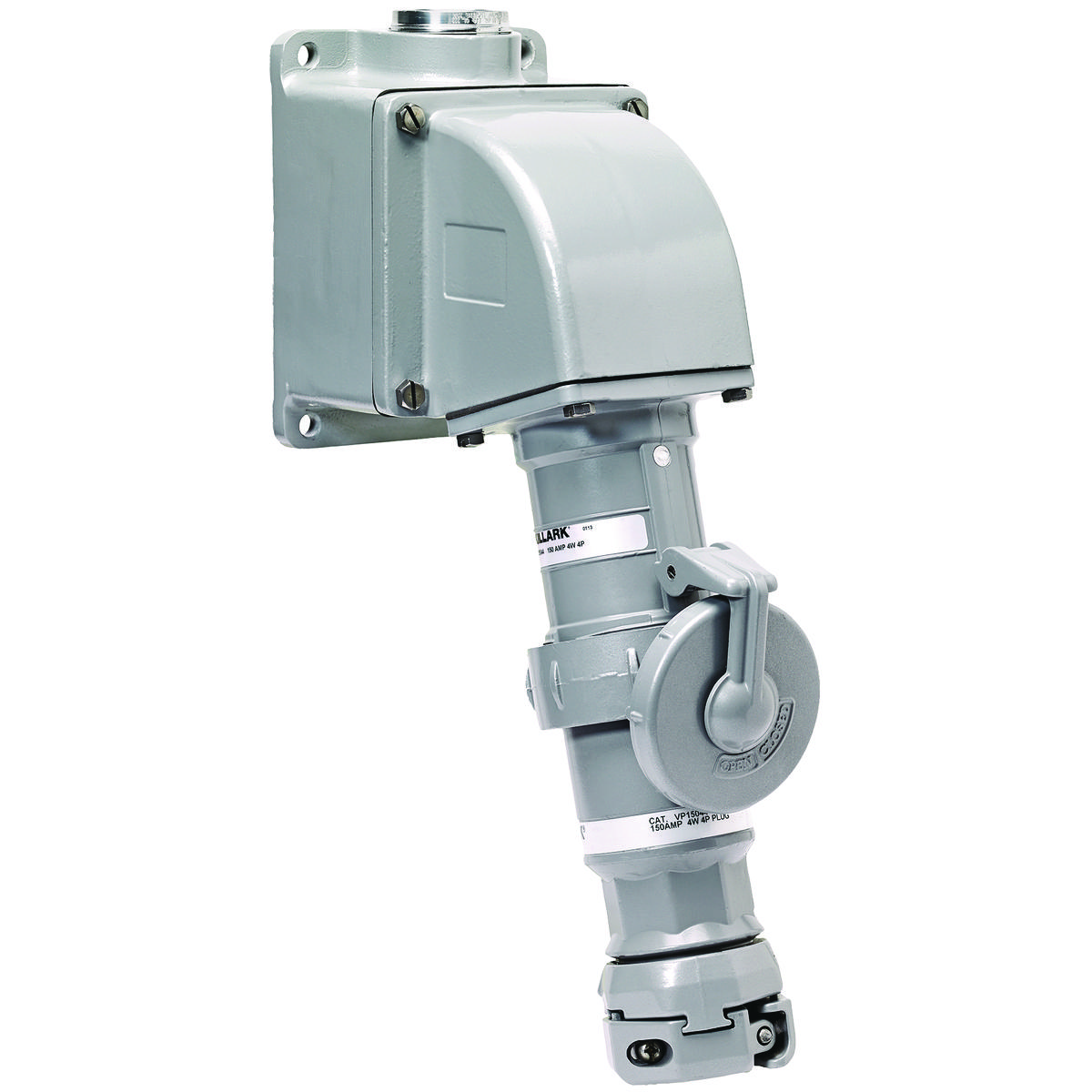

Hubbell VR3033C1 Electrical Receptacle
Part Number # VR3033C1
SKU # 2288694
$623.62 / Each
Hubbell VR3033C1 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | VR3033C1 |
| SKU #: | 2288694 |
| Amperage Rating: | 30 A |
| Dimensions: | 5.31 in H x 3.59 in W x 6.13 in L |
| Frequency Rating: | 50 to 400 Hz |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Series: | VR Series |
| Terminal Type: | Box |
| Type: | Heavy Duty |
| Country of origin: | US |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783936087641 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$623.62 / Each
Quantity:
Hubbell VR3033C1 Electrical Receptacle
Brand: Hubbell
Part Number: VR3033C1
Additional Description: KILL-VR3033C1 30A 3W3P RECPT. W/AT 1/2"" C BOX
Catalog Description: 30A 3 Pole 3 Wire Receptacle - AT Type - 1/2" C Type Box
VR3033C1 Application
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing FacilitiesVR3033C1 Item Features
- Patented "Breech-Lock" cap serves as both flip lid and screw cover
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact
- Increased Safety type box terminals with gripper ribs securely clamp around conductors
- Boxes come with a green grounding screw
VR3033C1 Standards
RoHS Compliant|Buy American CompliantSKU #2288694Part Number #VR3033C1UNSPSC39121406UPC00783936087641
Image provided may only be a representation of final product and may include optional equipment
