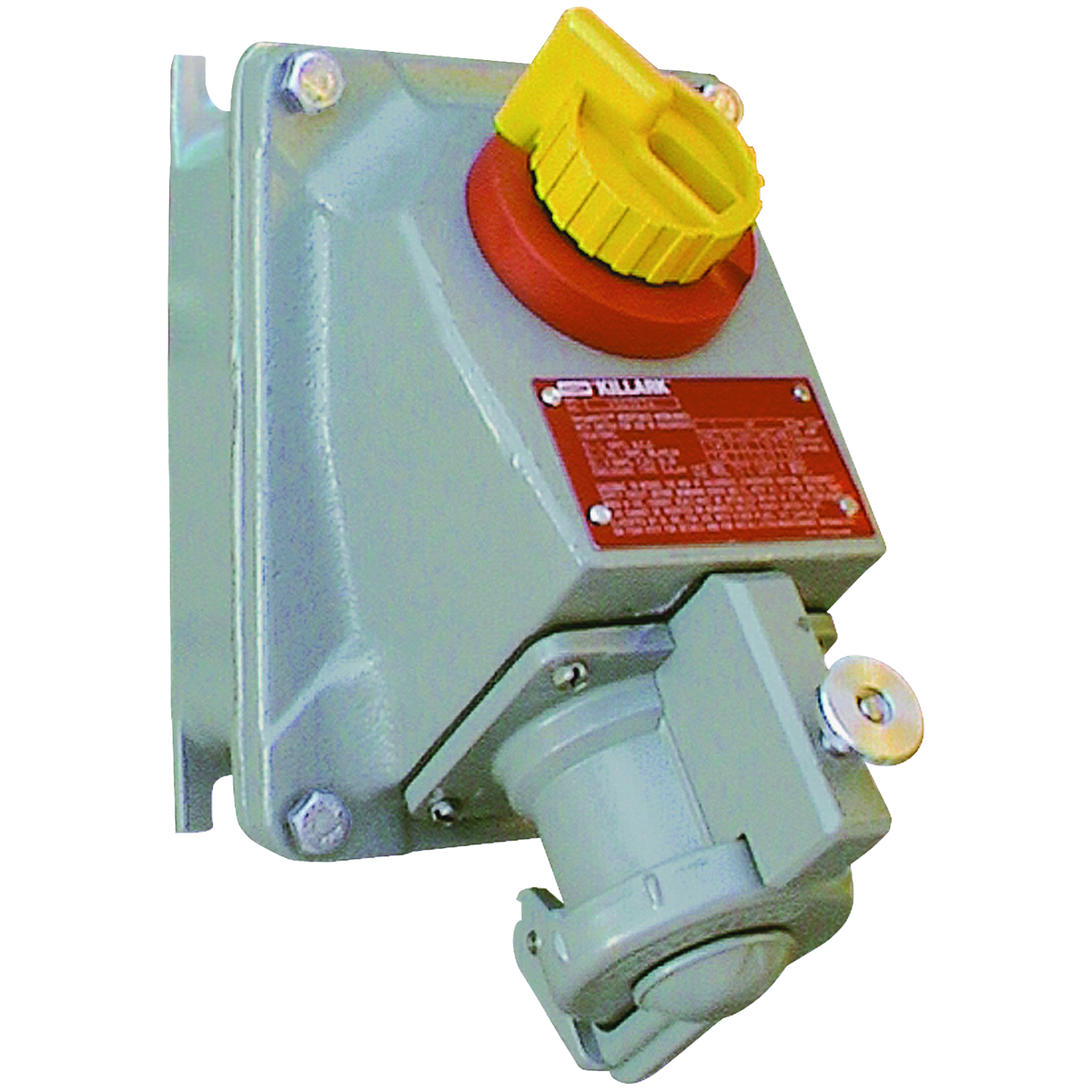

Hubbell VSQ3034 Killark Versamate Switched Receptacle
Part Number # VSQ3034
SKU # 2144156
$3362.65 / Each
Hubbell VSQ3034 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | VSQ3034 |
| SKU #: | 2144156 |
| Amperage Rating: | 30 A |
| Dimensions: | 10-1/2 in L x 5-3/4 in W x 9-3/4 in D |
| Enclosure: | NEMA 3/4/4X/7/9 |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | VSQ |
| Type: | Interlocked Switched |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783936833323 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3362.65 / Each
Quantity:
- Killark VersaMate Switched Receptacle, Interlocked Switched, Series: VSQ, 600 V AC, 30 A, 20 hp, 4 Poles, 3 Wires, NEMA 3/4/4X/7/9 Enclosure, Aluminum, 10-1/2 in L x 5-3/4 in W x 9-3/4 in D
VSQ3034 Application
For hazardous locations and heavy duty industrial applicationsVSQ3034 Includes
(2) 1 x 3/4 in Reducers and (1) 3/4 in Close-Up PlugVSQ3034 Item Features
- Compact size and footprint
- Plug Interlock Mechanism for Dead-Front construction
- Switch cannot be turned "ON" without fully inserted plug
- Factory Wired Receptacle (Load Side) "Off" position is padlockable for maintenance safety
- Auxiliary Contact (late-make early-break) contact rated 10 A 1/3 HP at 125/250 VAC
- Adjustable mounting lugs
VSQ3034 Standards
UL File No. E91049|CSA LR14667SKU #2144156Part Number #VSQ3034UNSPSC39121406UPC00783936833323
