Part Number # VSQ6034
SKU # 2335982
Image Disclaimers Message
VSQ6034

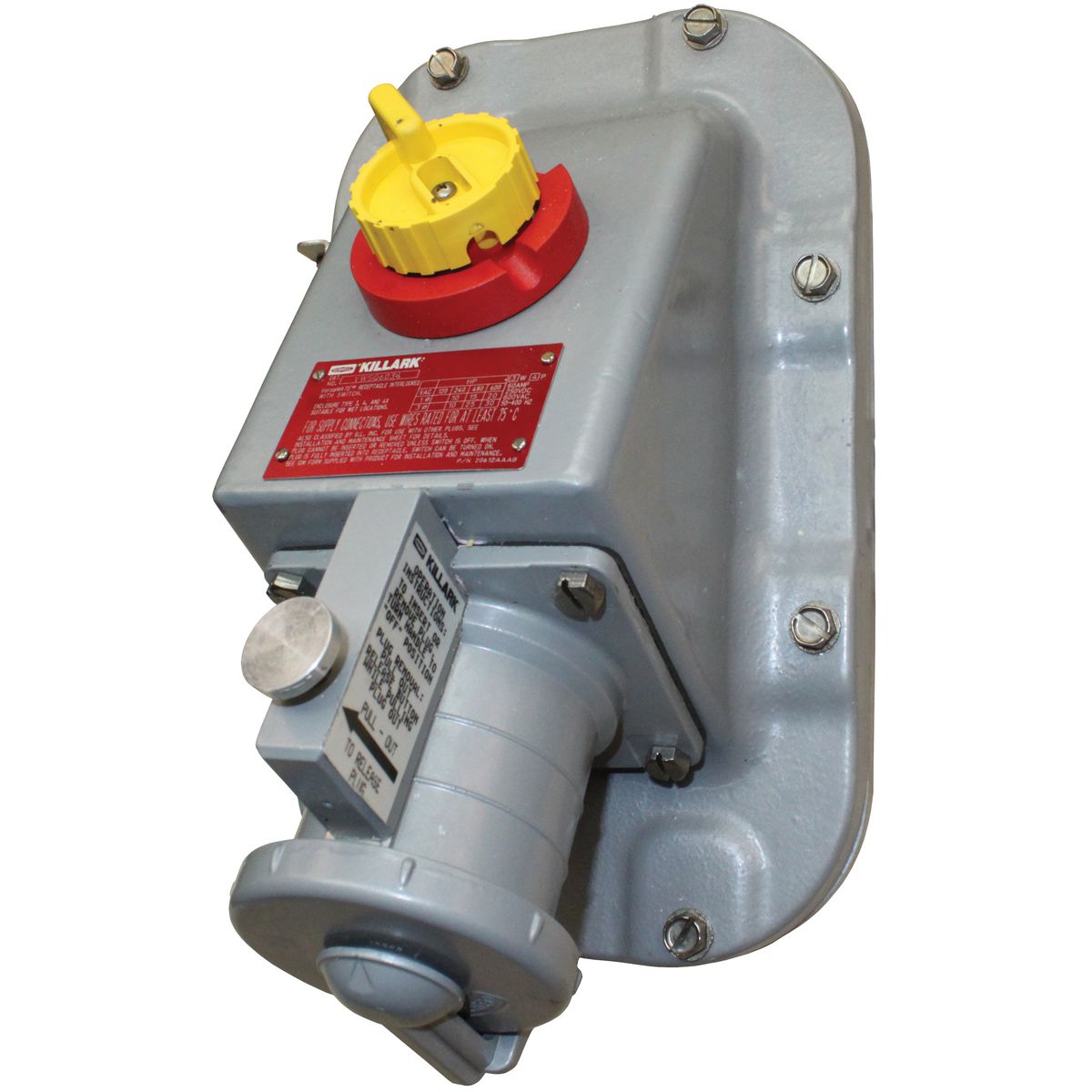

Hubbell VSQ6034 Killark Versamate Switched Receptacle
Part Number # VSQ6034
SKU # 2335982
$4830.53 / Each
Hubbell VSQ6034 Key Features
Brand: | Hubbell |
---|---|
Part Number # : | VSQ6034 |
SKU #: | 2335982 |
Amperage Rating: | 60 A |
Dimensions: | 14-5/32 in L x 8-1/8 in W x 11-9/32 in D |
Enclosure: | NEMA 3/4/4X/7/9 |
Number of Poles: | 3 |
Number of Wires: | 4 |
Series: | VSQ |
Type: | Interlocked Switched |
Country of origin: | US |
Material: | Aluminum |
Manufacturer Name: | Hubbell |
UNSPSC: | 39121406 |
UPC: | 00783936833347 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4830.53 / Each
Quantity:
- Killark VersaMate Switched Receptacle, Interlocked Switched, Series: VSQ, 600 V AC, 60 A, 30 hp, 3 Poles, 4 Wires, NEMA 3/4/4X/7/9 Enclosure, Aluminum, 14-5/32 in L x 8-1/8 in W x 11-9/32 in D
VSQ6034 Application
For hazardous locations and heavy duty industrial applicationsVSQ6034 Includes
(1) 1-1/2 in Close-Up PlugVSQ6034 Item Features
- Compact size and footprint
- Plug Interlock Mechanism for Dead-Front construction
- Switch cannot be turned "ON" without fully inserted plug
- Factory Wired Receptacle (Load Side)
- Off position is padlockable for maintenance safety
- Auxiliary Contact (late-make early-break) rated 10 A 1/3 HP at 125/250 VAC
- Adjustable mounting lugs
VSQ6034 Standards
UL File No. E91049|CSA LR14667SKU #2335982Part Number #VSQ6034UNSPSC39121406UPC00783936833347
