Brand: Hubbell

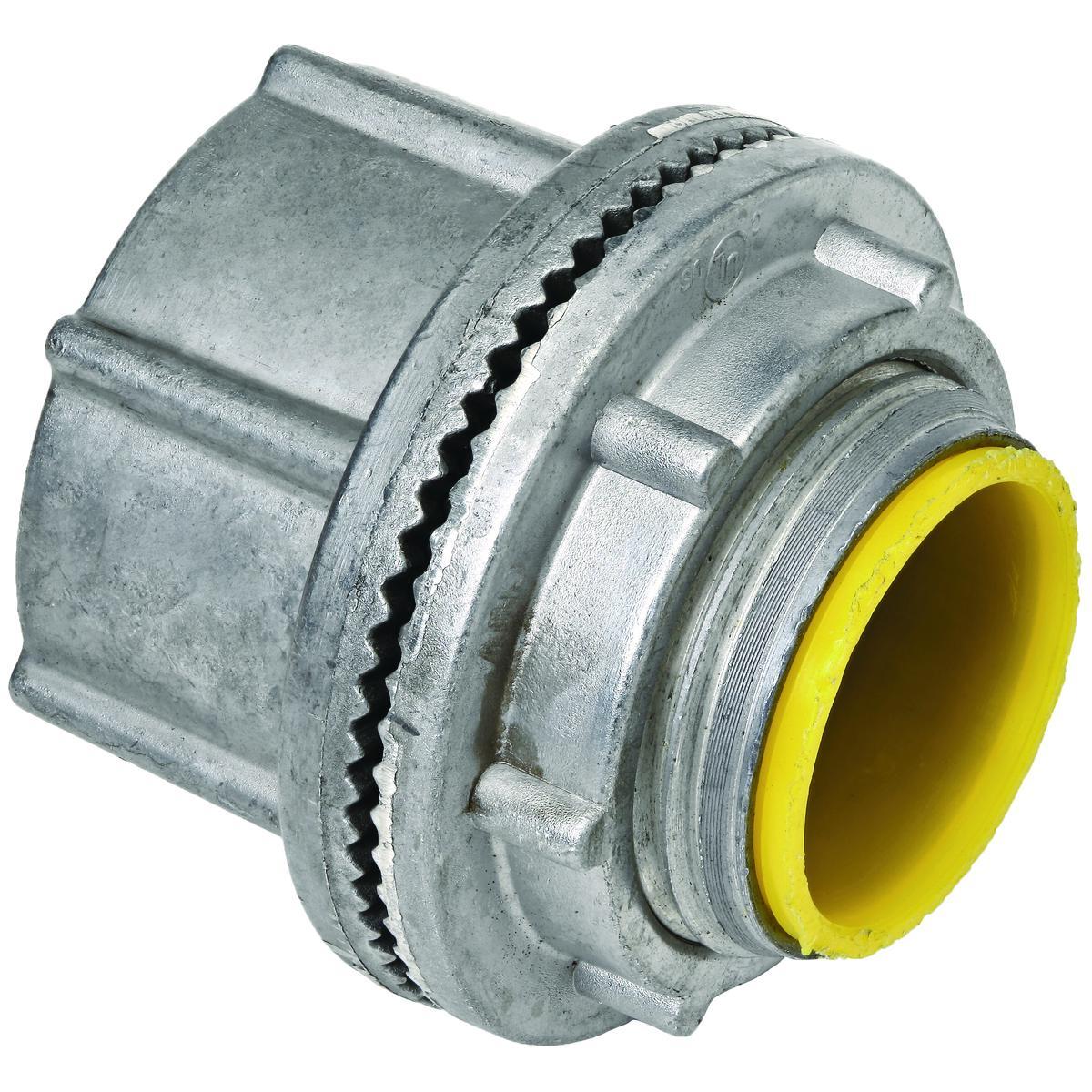

Hubbell WH-2 Conduit Hub
Image Disclaimers Message
Brand: Hubbell
Hubbell WH-2 Conduit Hub
Brand: Hubbell
Hubbell WH-2 Conduit Hub
Part #:WH-2
SKU #: 2293989
$27.06/EA
Key Features
Part #:WH-2
SKU #: 2293989
Brand: Hubbell
Dimensions: 1.685 in L x 1.685 in W x 1.51 in H
Finish: Natural
Series: WH Series
Size: 3/4, 3/4 in
Suitable For Use With: Sheet Metal Electrical Enclosure
$27.06/EA
- Oversized locknut provides for a strong vibration-proof termination
- Captive sealing ring
- Serrations on hub body and locknut provide effective positive ground path
- Rugged cast zinc construction
- Insulated throat protects conductors
- Suitable for use with NEMA type enclosures 2, 3, 3R, 4, 12 and 13
- The hubs fit into standard knock-out dimensions
- 3/4-14 NPSM thread
Specifications
Brand: Hubbell
Dimensions: 1.685 in L x 1.685 in W x 1.51 in H
Finish: Natural
Series: WH Series
Size: 3/4, 3/4 in
Suitable For Use With: Sheet Metal Electrical Enclosure
Type: Weatherproof
Color: Gray
Country of origin: IN
Material: Die Cast Zinc
Manufacturer Name: Hubbell
UNSPSC: 39131708
UPC: 00783936841816
Hubbell WH-2 Conduit Hub
Killark Conduit Hub, Weatherproof, Series: WH Series, 3/4 in, For Use With: Sheet Metal Electrical Enclosure, Die Cast Zinc, Gray, Natural, 1.685 in L x 1.685 in W x 1.51 in H
Additional Description: KILL-WH-2 3/4"" CONDUIT HUB (CTN 50)
Catalog Description: 3/4" Zinc Weather Proof Conduit Hub
Item FeaturesUsed to provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures
Item Features
Item FeaturesUL Listed|CSA Certified|NEC 501.10(b) Class I Div 2, Class I Zone 2 502.10, 503.10, 505-15
