Part Number # BR20GN
SKU # 2430370
Image Disclaimers Message
BR20GN
Hubbell Wiring Devices BR20GN
Part Number # BR20GN
SKU # 2430370
$5.71 / Each
Typical price:$10.85 / Each
Hubbell BR20GN Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | BR20GN |
| SKU #: | 2430370 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.32 in W x 0.83 in D x 3.28 in H |
| Horsepower: | 1 hp |
| NEMA Rating: | 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Duplex Standard Screw Mount |
| Color: | Green |
| Country of origin: | CN |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585542812 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.71 / Each
Typical price:$10.85 / Each
Quantity:

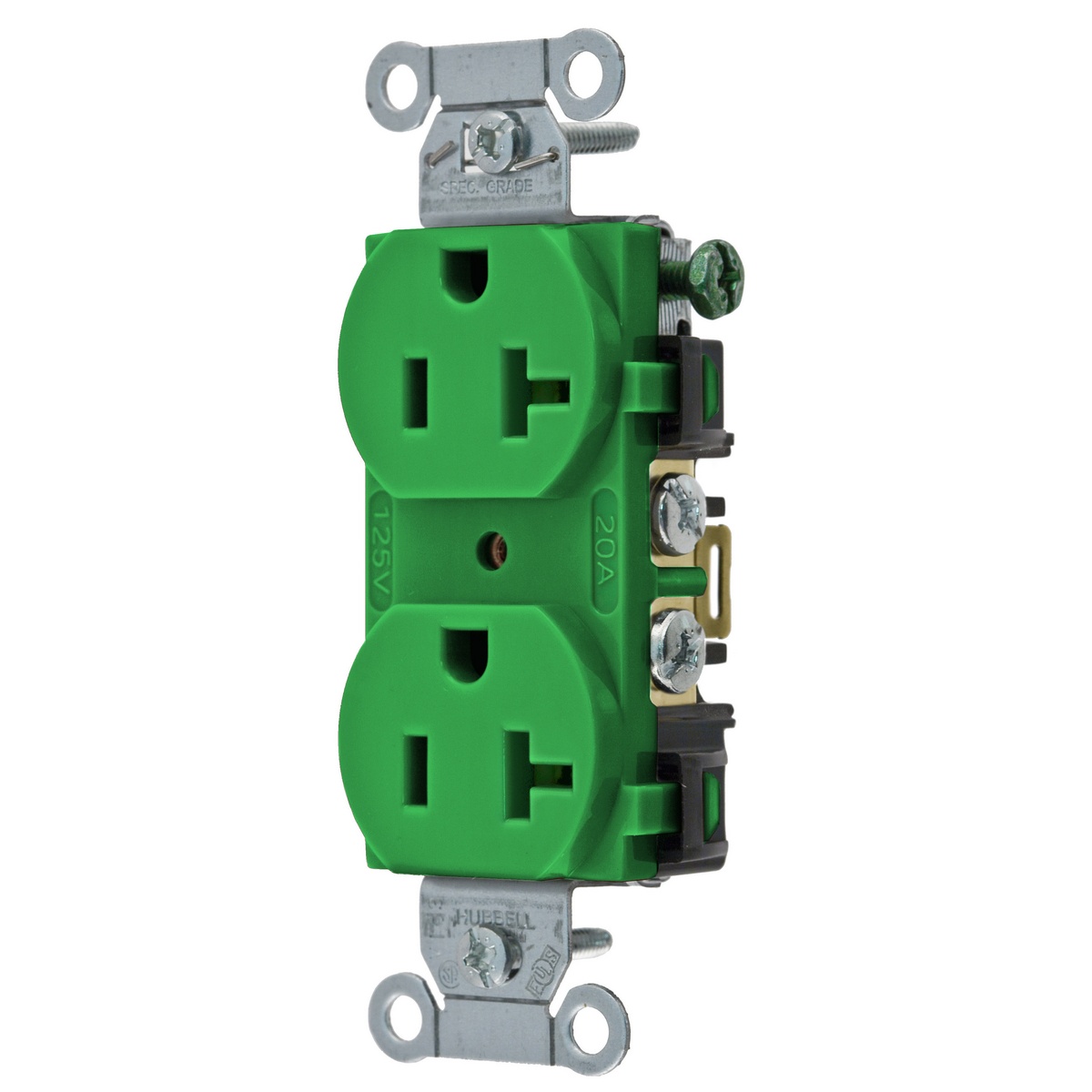

- Hubbell Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Standard Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Screw Terminal, Composite, Green, 1.32 in W x 0.83 in D x 3.28 in H
BR20GN Application
Washdown Areas, Transit Centers, Amusement Parks, Open Air Markets, Industrial and Commercial ApplicationsBR20GN Item Features
- Easy access split circuit tab
- Nylon face and base
- Wrap-around galvanized steel strap
- Triple wipe contacts
BR20GN Standards
CSA C22.2 No. 42|Federal Specification WC596|UL 498SKU #2430370Part Number #BR20GNUNSPSC39121406UPC00783585542812
