Part Number # CR15WHITR
SKU # 2458631
CR15WHITR
Hubbell Wiring Devices CR15WHITR
Part Number # CR15WHITR
SKU # 2458631
$80.70 / Each
Typical price:$104.50 / Each
Hubbell CR15WHITR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CR15WHITR |
| SKU #: | 2458631 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.32 x 0.83 x 3.28 in |
| Horsepower: | 1/2 hp |
| NEMA Rating: | 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Side Wired |
| Type: | 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585144238 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$80.70 / Each
Typical price:$104.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems, CR15WHITR, Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, White, 1.32 x 0.83 x 3.28 in Dimensions
CR15WHITR Application
Indoor Dry EnvironmentCR15WHITR Item Features
- Triple wipe contacts
- Smooth face
- https://youtu.be/6vsZAR79ASo
CR15WHITR Standards
RoHS Compliant|UL 498 File No. E2186|CSA C22.2 No. 42 File 285|UL 94-V-2 Flammability Rating|NEMA WD1/WD5/WD6SKU #2458631Part Number #CR15WHITRUNSPSC39121406UPC00783585144238

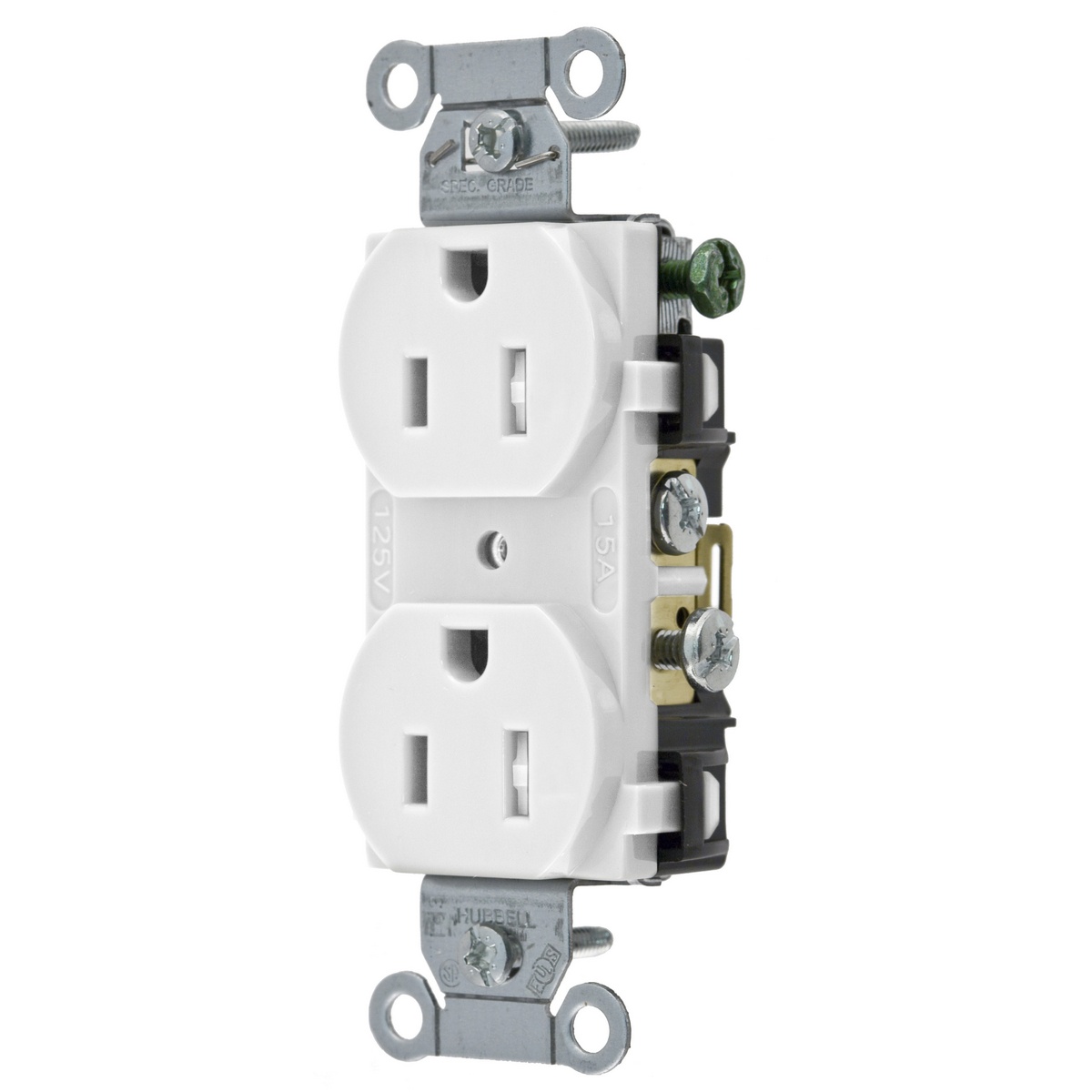

Image provided may only be a representation of final product and may include optional equipment
