Part Number # CS320W
SKU # 2446510
Image Disclaimers Message
Brand: Hubbell
CS320W

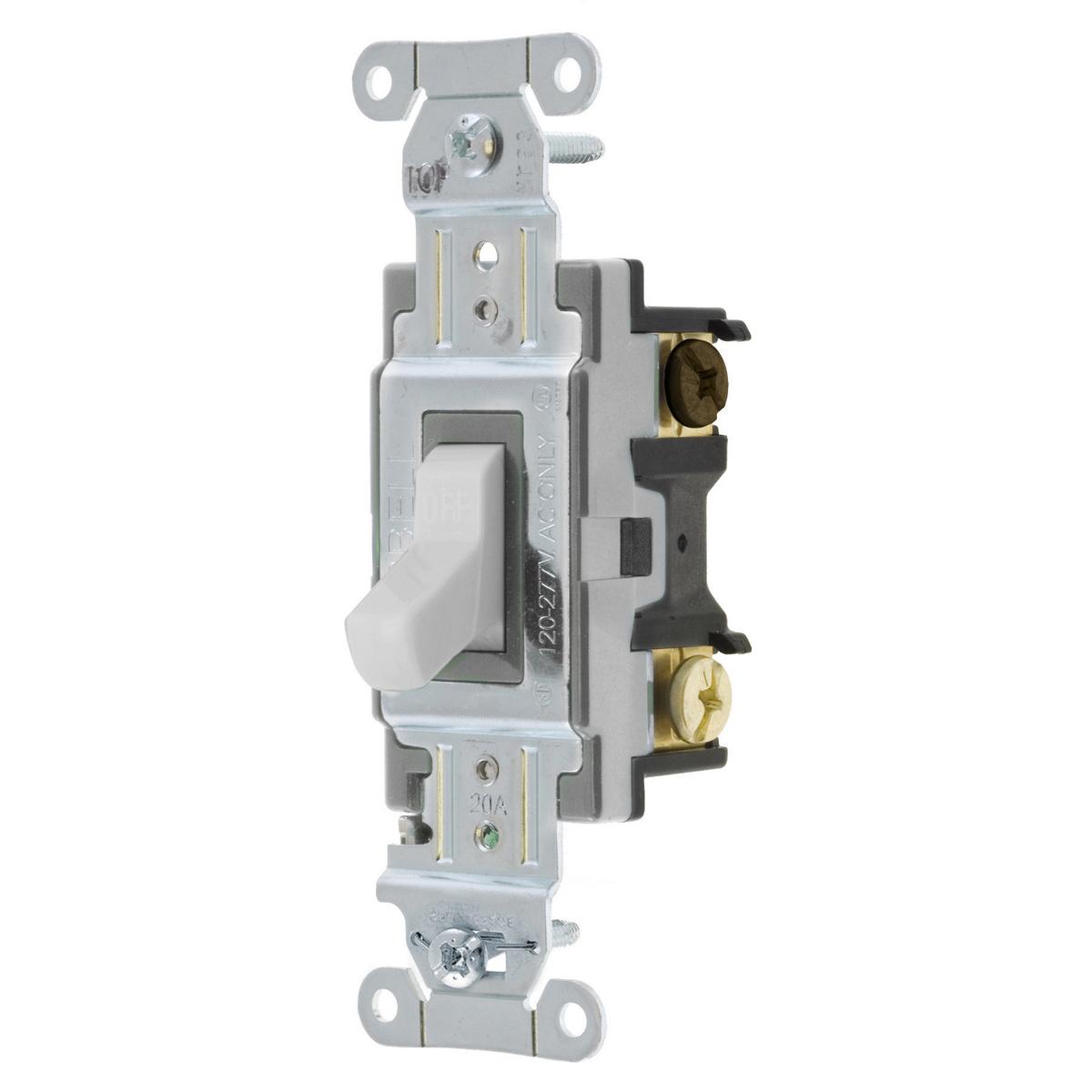

Hubbell Wiring Devices CS320W
Part Number # CS320W
SKU # 2446510
$9.86 / Each
Typical price:$12.75 / Each
Hubbell CS320W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CS320W |
| SKU #: | 2446510 |
| Actuator: | Toggle |
| Amperage Rating: | 20 A |
| Contact Configuration: | 2-Position |
| Dimensions: | 4.18 x 1.49 x 1.83 in |
| Environmental Conditions: | -40 to 75 deg C |
| Mounting: | Threaded |
| Number of Poles: | 1 |
| Operating Cycles: | 50000 cycles |
| Terminal Type: | Side Wire |
| Type: | 3-Way Standard |
| Color: | White |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122211 |
| UPC: | 00783585902142 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.86 / Each
Typical price:$12.75 / Each
Quantity:
- Hubbell Wiring Device-Kellems, CS320W, AC Toggle Switch, 3-Way Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, White, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions
CS320W Application
General Purpose, Commercial Specification Grade and Indoor Dry EnvironmentCS320W Item Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
CS320W Standards
RoHS Compliant|UL 20|CSA Certified|NEMA WD1|UL94 V-2 Flammability Rating|Federal Specification WS896SKU #2446510Part Number #CS320WUNSPSC39122211UPC00783585902142
