Part Number # DR20
SKU # 2443852
DR20
Hubbell Wiring Devices DR20
Part Number # DR20
SKU # 2443852
Hubbell DR20 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | DR20 |
| SKU #: | 2443852 |
| Amperage Rating: | 20 A |
| Dimensions: | 3.28 x 1.06 x 1.29 in |
| Horsepower: | 1 hp |
| NEMA Rating: | 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Side Wired |
| Type: | 1-Phase Decorator Duplex Standard Screw Mount |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585127866 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

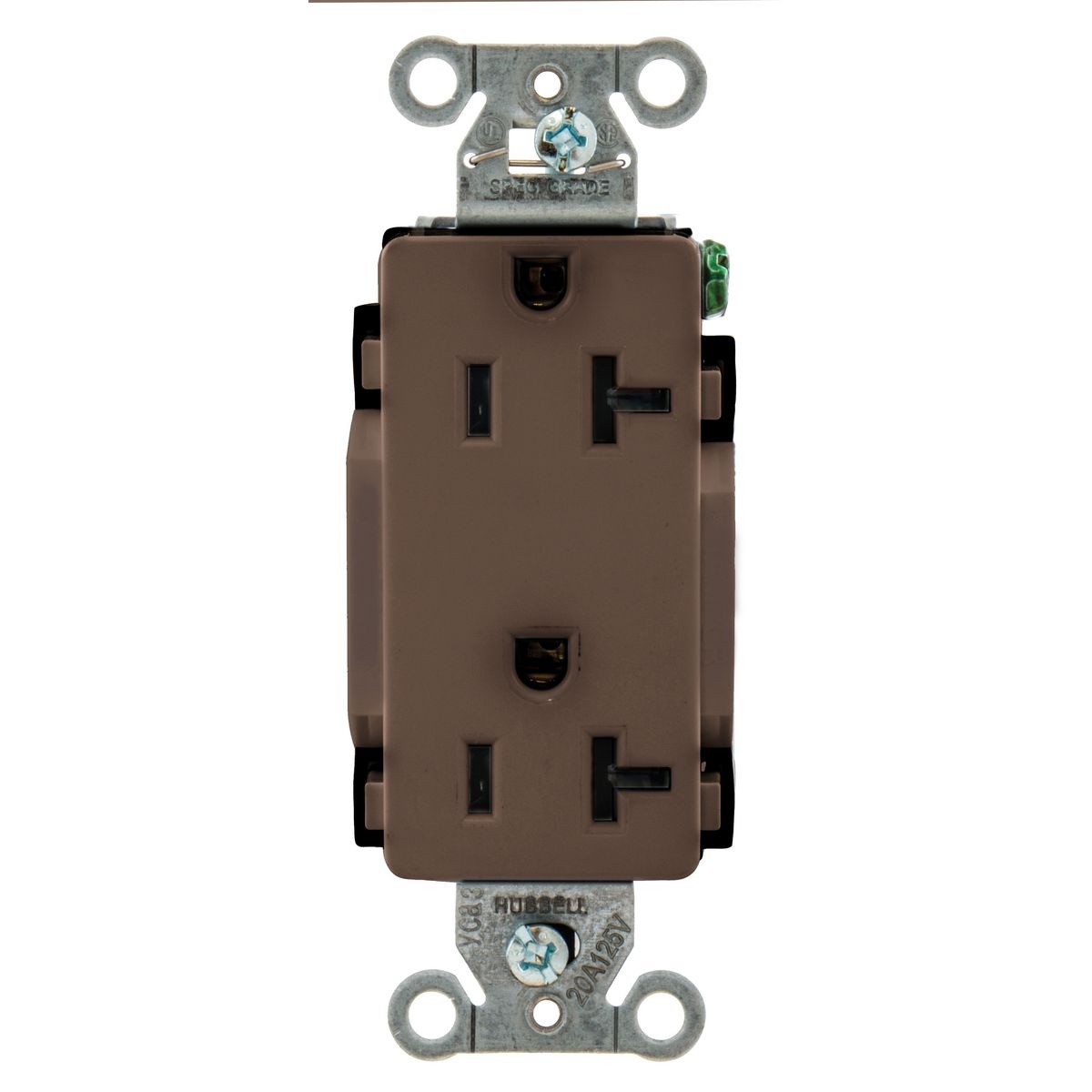

Hubbell Wiring Devices DR20
Brand: Hubbell
Part Number: DR20
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Decorator Duplex Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Brown, 3.28 in H x 1.3 in W x 1.07 in D Dimensions
Additional Description: HUBW-DR20 DECO RCPT, COMM GRD, 20A 125V, 5-20R, BR
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack.
DR20 Application
Washdown Areas, Transit Centers, Amusement Parks and Open Air MarketsDR20 Item Features
- Smooth face
- Triple wipe contacts
DR20 Standards
RoHS Compliant|CSA C22.2 No. 42|Federal Specification WC596|NEMA WD1/WD5|UL 498SKU #2443852Part Number #DR20UNSPSC39121406UPC00783585127866
Image provided may only be a representation of final product and may include optional equipment
