Part Number # HBL2320SR
SKU # 2434824
HBL2320SR
Hubbell Wiring Devices HBL2320SR
Part Number # HBL2320SR
SKU # 2434824
Hubbell HBL2320SR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2320SR |
| SKU #: | 2434824 |
| Amperage Rating: | 20 A |
| Dimensions: | 4.56 x 2.84 x 1.58 in |
| Enclosure: | NEMA 4/4X/12/IP20 |
| Horsepower: | 2 hp |
| NEMA Rating: | L6-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Heavy Duty Single Surface Mount |
| Country of origin: | PR, US |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585234106 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

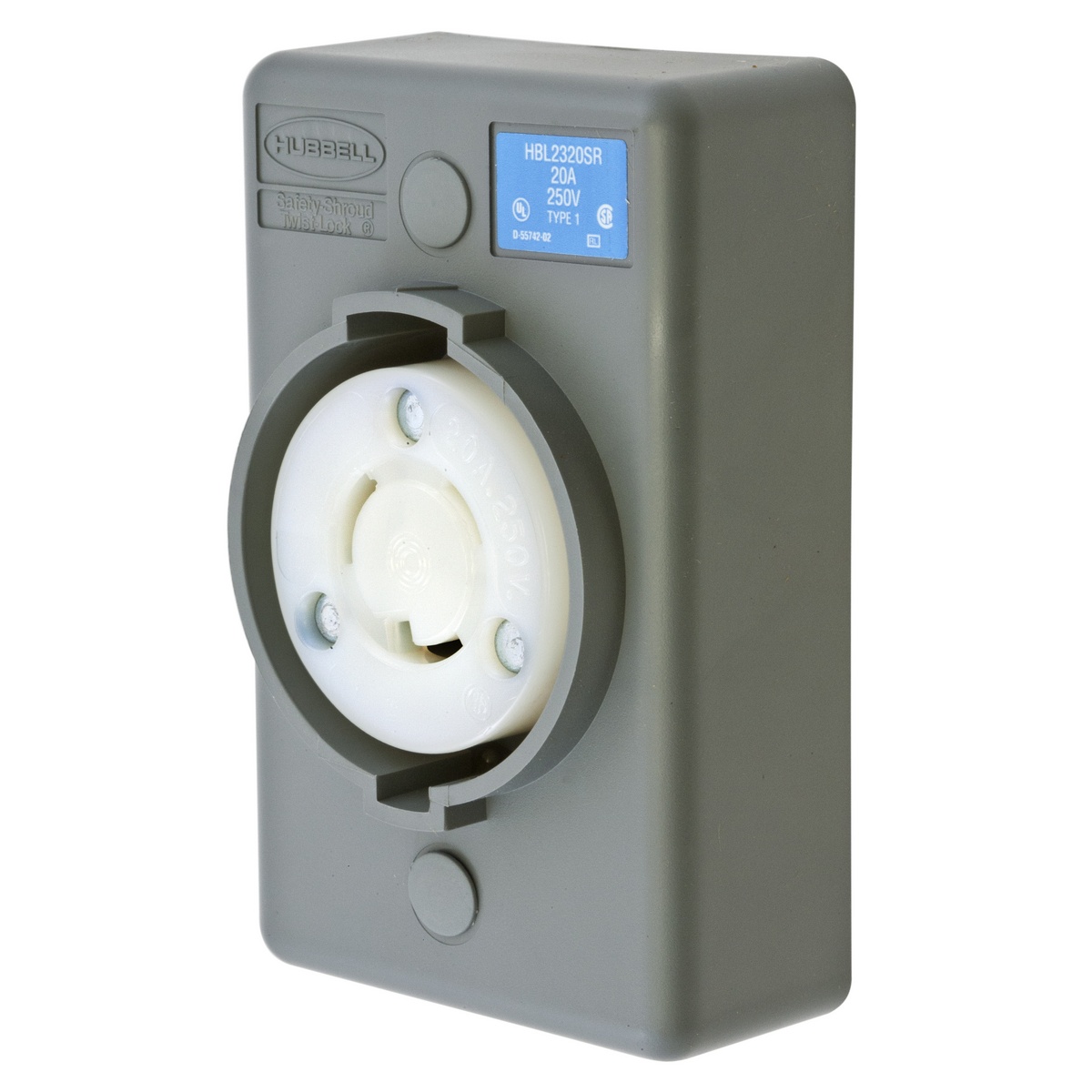

Hubbell Wiring Devices HBL2320SR
Brand: Hubbell
Part Number: HBL2320SR
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Receptacle, Grounding Heavy Duty Safety Shroud Single, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-20R, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Gray/White, 4.56 in H x 2.84 in W x 1.58 in D Dimensions
Additional Description: HUBW-HBL2320SR LKG S/SHRD RCPT, L6-20R, SURF MT, GY
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Safety-Shroud® Surface Mount Receptacle 20A 250V, 2-Pole 3-Wire Grounding, NEMA L6-20R, Screw Terminal, One Gang, Gray.
HBL2320SR Item Features
- Accepts Hubbell shrouded and standard NEMA locking plugs
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
- https://youtu.be/1DnPJu3QNw0
HBL2320SR Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #2434824Part Number #HBL2320SRUNSPSC39121406UPC00783585234106
Image provided may only be a representation of final product and may include optional equipment
