Part Number # HBL2411BK
SKU # 2442023
Image Disclaimers Message
Brand: Hubbell
HBL2411BK
Hubbell Wiring Devices HBL2411BK
Part Number # HBL2411BK
SKU # 2442023
$39.71 / Each
Typical price:$75.35 / Each
Hubbell HBL2411BK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2411BK |
| SKU #: | 2442023 |
| Amperage Rating: | 20 A |
| Cord Diameter: | 0.35 to 1.15 in |
| Dimensions: | 2.75 x 2.33 x 2.33 in |
| Enclosure: | IP20 |
| Horsepower: | 1 hp, 2 hp |
| NEMA Rating: | L14-20P |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Male Standard Cord Mount |
| Color: | Black |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585172309 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$39.71 / Each
Typical price:$75.35 / Each
Quantity:

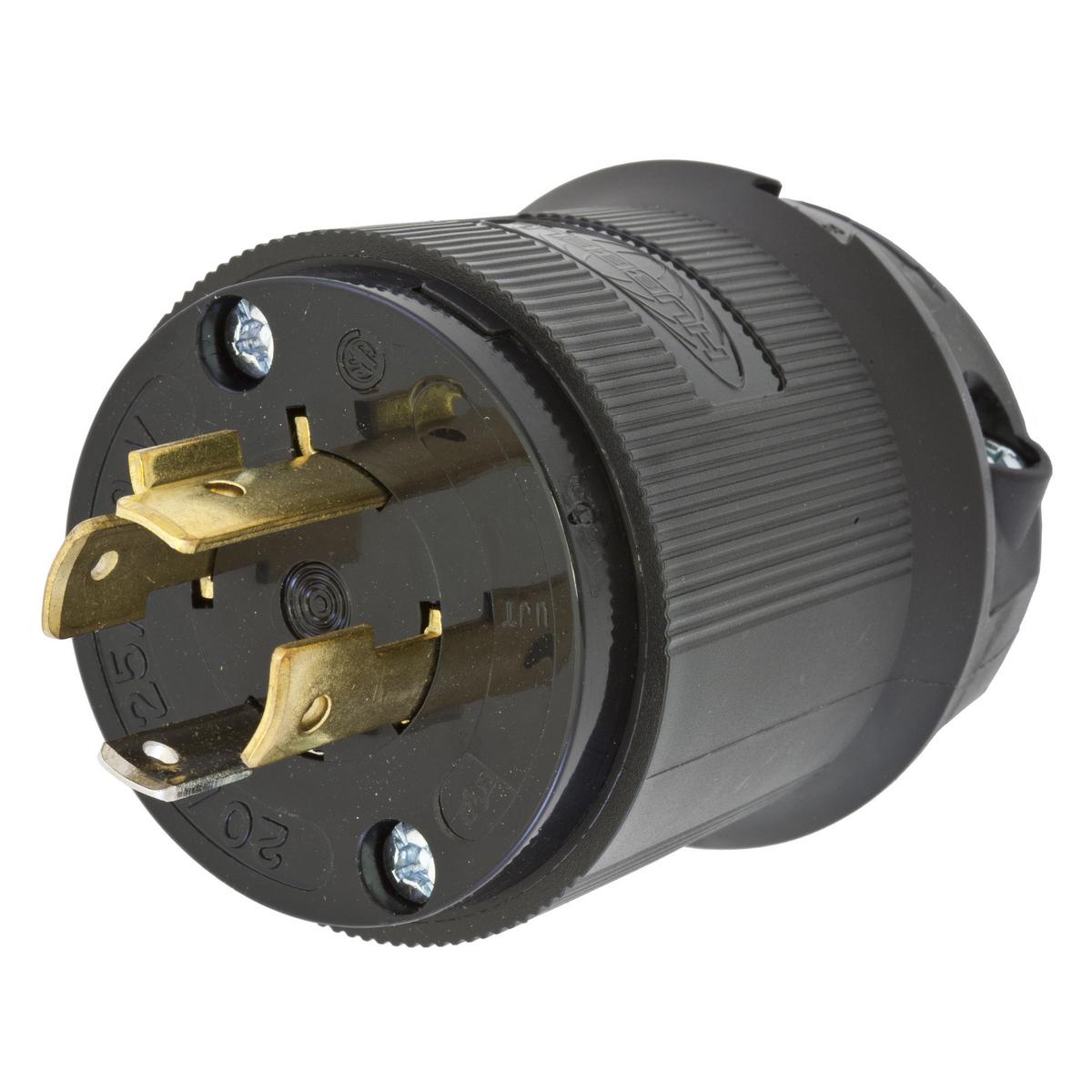

- Hubbell Wiring Device-Kellems, HBL2411BK, Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 125/250 V AC, 20 A, 1 hp, 2 hp, 3 Pole, 4 Wires, L14-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.75 x 2.33 x 2.33 in Dimensions
HBL2411BK Application
Dry Locations, Power Connection and Indoor ApplicationsHBL2411BK Item Features
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2411BK Standards
RoHS Compliant|UL94HB Flammability Rating|Federal Specification W-C-596|UL 94/498|CSA C22.2 No. 0.6/42SKU #2442023Part Number #HBL2411BKUNSPSC39121402UPC00783585172309
