Part Number # HBL2413BK
SKU # 2442022
HBL2413BK

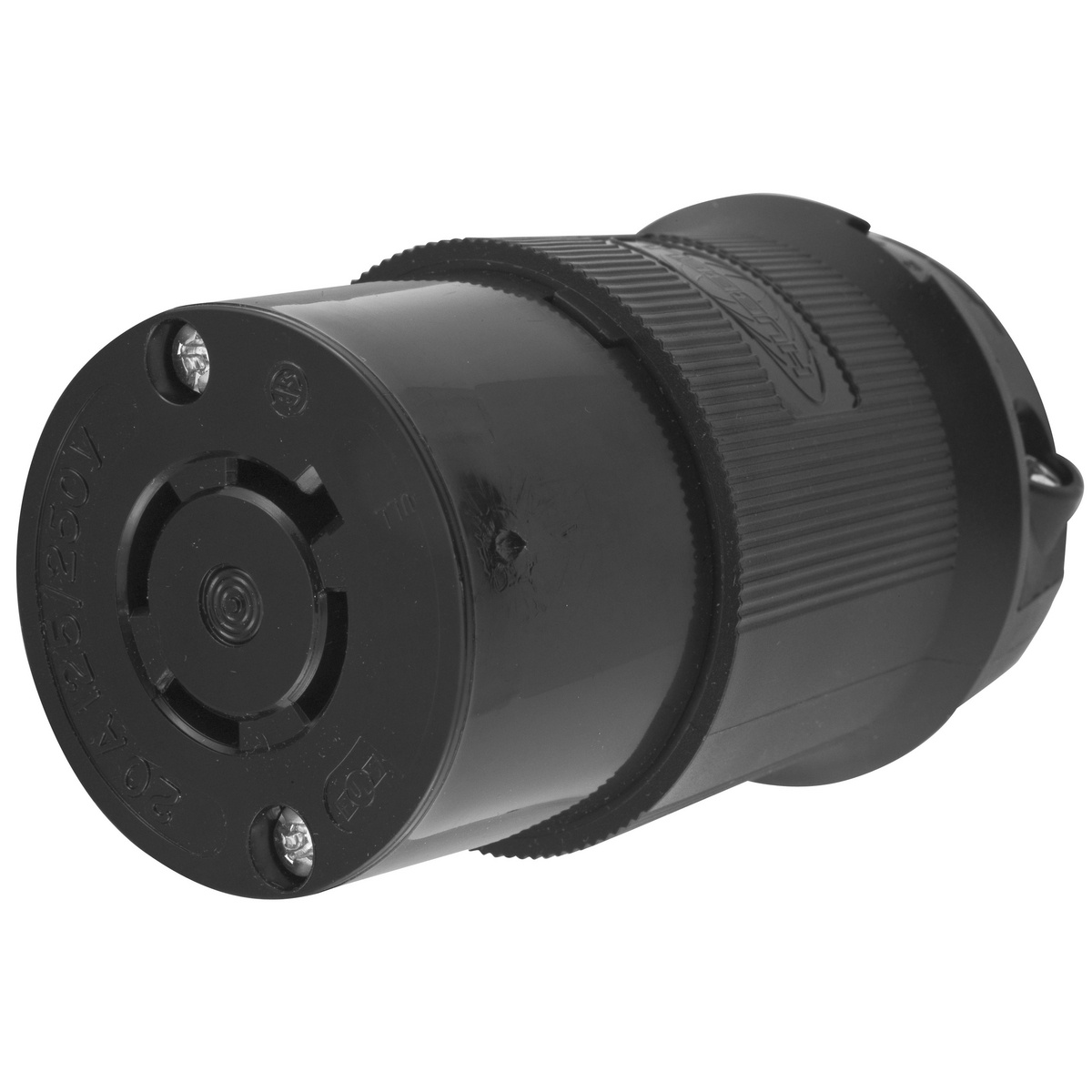

Hubbell Wiring Devices HBL2413BK
Part Number # HBL2413BK
SKU # 2442022
$55.79 / Each
Typical price:$106.00 / Each
Hubbell HBL2413BK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2413BK |
| SKU #: | 2442022 |
| Amperage Rating: | 20 A |
| Cord Diameter: | 0.35 to 1.05 in |
| Dimensions: | 3.86 x 2.33 x 2.33 in |
| Enclosure: | NEMA 4X/12/IP20/IP66 |
| Horsepower: | 1 hp |
| NEMA Rating: | L14-20R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Heavy Duty Female Grounding Insulated Standard Cord Mount |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585172316 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$55.79 / Each
Typical price:$106.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL2413BK, Locking Connector, Heavy Duty Female Grounding Insulated Standard Cord Mount, 125/250 V AC, 20 A, 1 hp, 3 Pole, 4 Wires, L14-20R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20/IP66 Enclosure, 0.35 to 1.05 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black, 3.86 x 2.33 x 2.33 in Dimensions
HBL2413BK Application
Dry Locations and Indoor ApplicationsHBL2413BK Item Features
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
HBL2413BK Standards
RoHS Compliant|UL 498|Federal Specification W-C-596|NEMA WD1/WD5|CSA C22.2 No. 42/C22.2 File No. 0.6|UL94 HB Flammability RatingSKU #2442022Part Number #HBL2413BKUNSPSC39121421UPC00783585172316
Image provided may only be a representation of final product and may include optional equipment
