Part Number # HBL2430SR2
SKU # 2430919
Image Disclaimers Message
Brand: Hubbell
HBL2430SR2
Hubbell Wiring Devices HBL2430SR2
Part Number # HBL2430SR2
SKU # 2430919
$53.64 / Each
Typical price:$69.30 / Each
Hubbell HBL2430SR2 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2430SR2 |
| SKU #: | 2430919 |
| Amperage Rating: | 20 A |
| Dimensions: | 5.12 in W x 0.77 in D x 5.12 in H, 5.12 x 5.12 x 2.22 in |
| Enclosure: | IP20 |
| Horsepower: | 5 hp |
| NEMA Rating: | L16-20R, NEMA L16-20R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 2-Gang Shrouded Single, 3-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount |
| Color: | Gray, Gray/White |
| Country of origin: | PR |
| Material: | PBT, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585234601 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$53.64 / Each
Typical price:$69.30 / Each
Quantity:

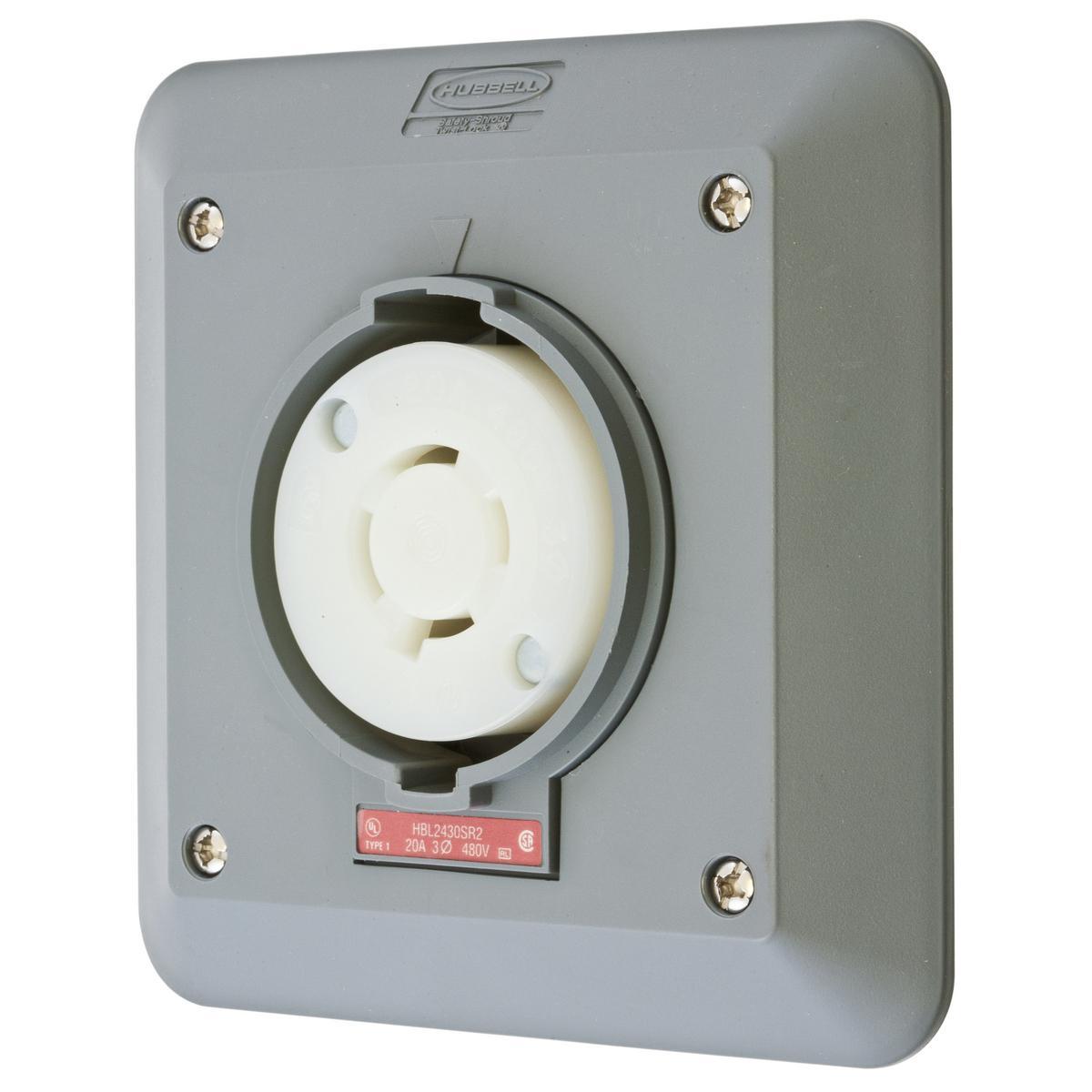

- Hubbell Twist-Lock Safety-Shroud Locking Receptacle, 2-Gang Shrouded Single, 480 V AC, 20 A, 5 hp, 3 Poles, 4 Wires, NEMA L16-20R, -40 to 75 deg C, Screw Terminal, PBT, Gray, 5.12 in W x 0.77 in D x 5.12 in H
HBL2430SR2 Application
Dry Locations and Indoor ApplicationsHBL2430SR2 Item Features
- 2000 VAC minimum dielectric voltage withstand
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
- 4-wire grounding
- HB or better per UL 94 or CSA 22.2 no. 0.6 flammability
- 20 A 12 AWG terminal accommodation
- NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw
- Zinc plated brass mounting screw material
- 0.031 in brass ground contact
- Natural white nylon body contact carrier material
- Steel rivet material
- Steel, nickel plated 0.08 in curved, scalloped terminal clamp material
- Gray Valox 357U housing and flange material
- Galvanized steel mounting plate material
- 3-phase
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are easily visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
- https://youtu.be/1DnPJu3QNw0
HBL2430SR2 Standards
CSA C22.2 No. 42|Federal Specification W-C-596|UL 498SKU #2430919Part Number #HBL2430SR2UNSPSC39121406UPC00783585234601
