Hubbell Wiring Devices HBL2456
Part Number # HBL2456
SKU # 2443753
HBL2456
Hubbell Wiring Devices HBL2456
Part Number # HBL2456
SKU # 2443753
Hubbell HBL2456 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2456 |
| SKU #: | 2443753 |
| NEMA Rating: | L19-20R |
| Type: | 3-Phase Flanged Non-Grounding Standard Single Screw Mount |
| UNSPSC: | 39121406 |
| UPC: | 00783585038421 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell Wiring Devices HBL2456
Brand: Hubbell
Part Number: HBL2456

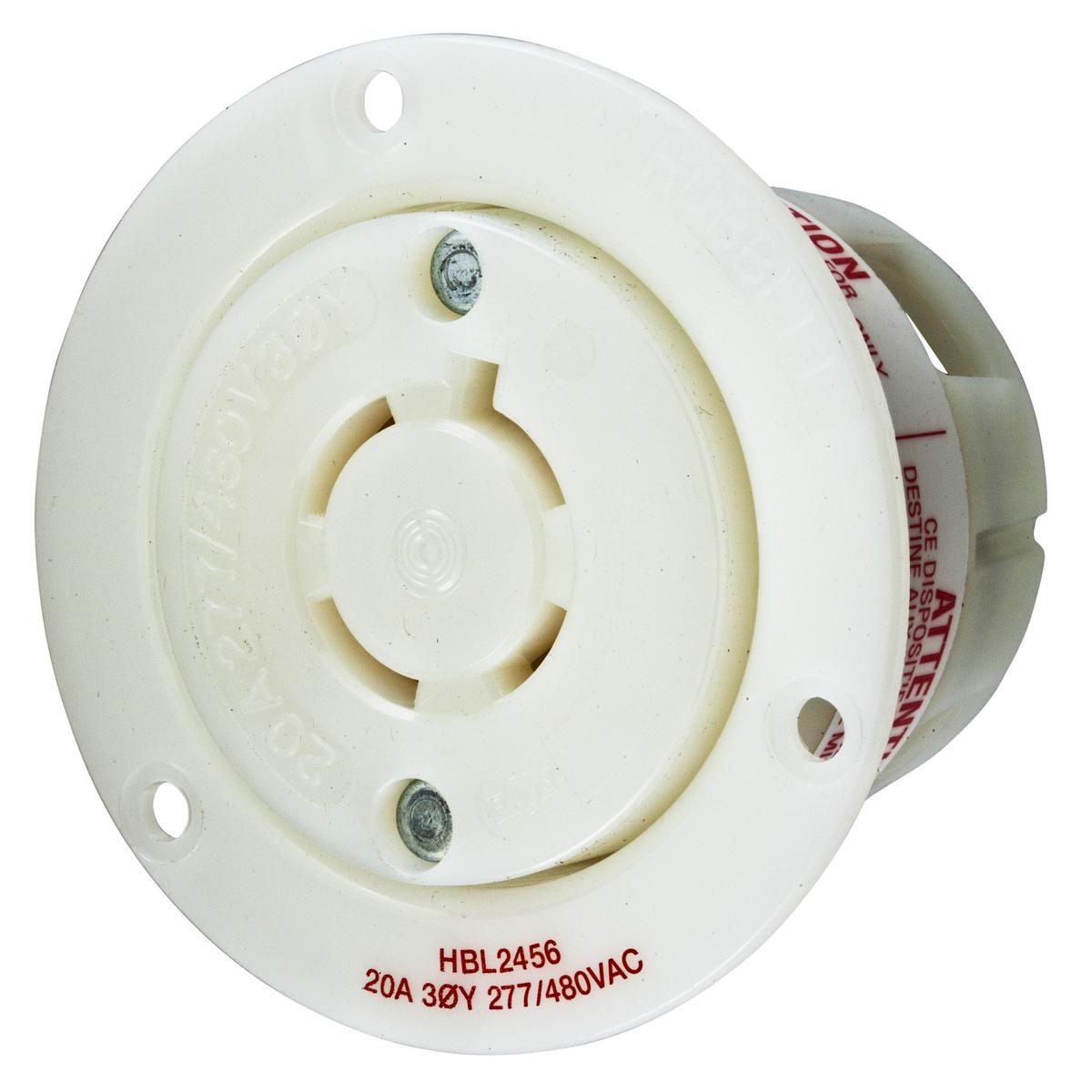

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip, HBL2456, Locking Receptacle, 3-Phase Flanged Non-Grounding Standard Single Screw Mount, 277/480 V AC, 20 A, 5 hp, 4 Pole, 4 Wires, L19-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 3.06 x 3.06 x 2.27 in Dimensions
Additional Description: HUBW-HBL2456 (N) LKG FLG-RCPT, 20A3PH120/208V, L19-20R NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 3-Phase WYE 277/480V AC, 4-Pole 4-Wire Non- Grounding, NEMA L19-20R, Screw Terminal, Nylon casing, Back wired, White
HBL2456 Application
Dry Locations and Indoor ApplicationsHBL2456 Includes
Mounting ScrewsHBL2456 Item Features
- Backwired terminations for ease of installation
- https://youtu.be/1DnPJu3QNw0
HBL2456 Standards
RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94 V-2 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5HBL2456 Warranty
LimitedSKU #2443753Part Number #HBL2456UNSPSC39121406UPC00783585038421
Image provided may only be a representation of final product and may include optional equipment
